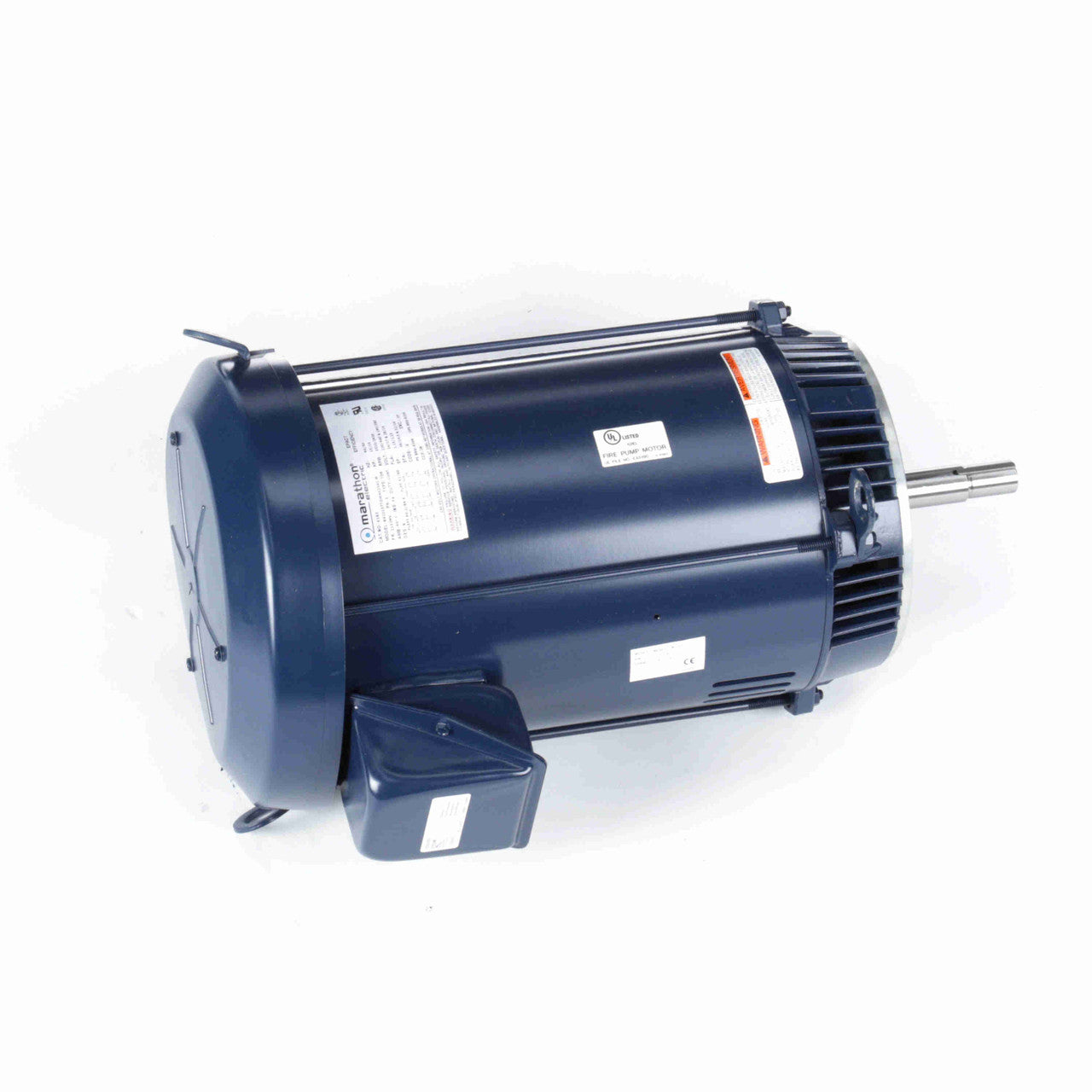

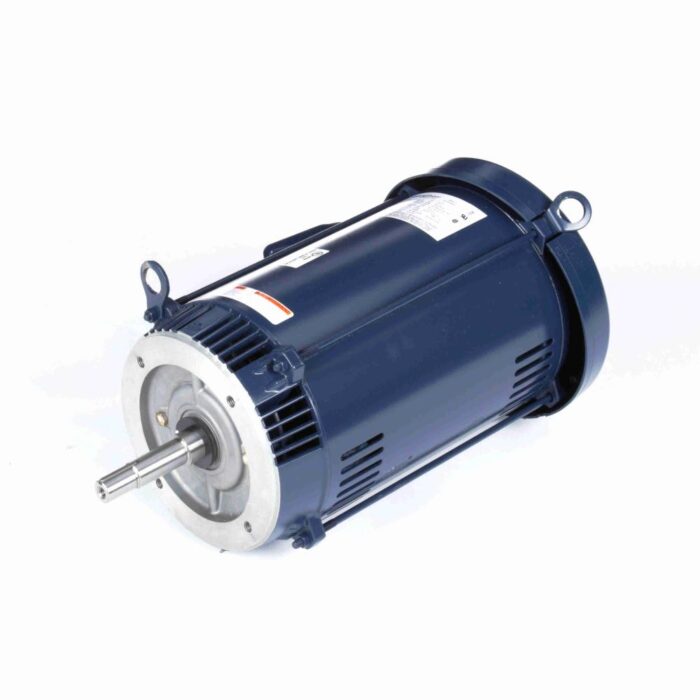

MARATHON MOTORS ME183 Close Coupled Pump Motor 15 HP 230/460 V

Product Description

The MARATHON MOTORS ME183 is a 15 HP close-coupled pump motor designed for vertical installation. This motor is suitable for operation with variable frequency drives, providing both 10:1 variable torque and 2:1 constant torque. It is built with a NEMA JM pump shaft and a JMV frame, featuring a drip cover that supports vertical mounting. The motor is dual-rated for both 60 and 50 Hertz with a voltage capacity of 190 and 380 Volts at a lower horsepower.

• Vertical mounting capability.
• Compatible with Variable Frequency Drives (VFD).
• Dual rated for 60/50 Hertz operation.

Product Highlights

This motor is useful in various applications for water and fluid handling systems, ensuring efficiency and reliability in performance.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: ME183

Technical Specifications

• Power: 15 HP
• Voltage: 230/460 V
• Frame Size: 215JMV
• Rotation: Reversible
• Speed: 3525 RPM
• Mounting Type: Vertical
• VFD Compatibility: 10:1 variable torque, 2:1 constant torque
• Service Factor: 1.15 (sinewave), 1.0 (IGBT power)
• Shaft Dimensions: NEMA JM
• Frame Type: JMV with drip cover for vertical mount base
• Bearing Type: Ball Bearings
• Insulation Class: Class F
• Frequency Rating: 60/50 Hertz
• Voltage Rating: 190/380 V
• Certifications: UL recognized, CSA certified, CE mark
• Load Amp Rating: 36.5/18.2
• Ambient Temperature: 40 °C
• Enclosure: Drip Proof
• Full Load Amps: 36.5/18.2
