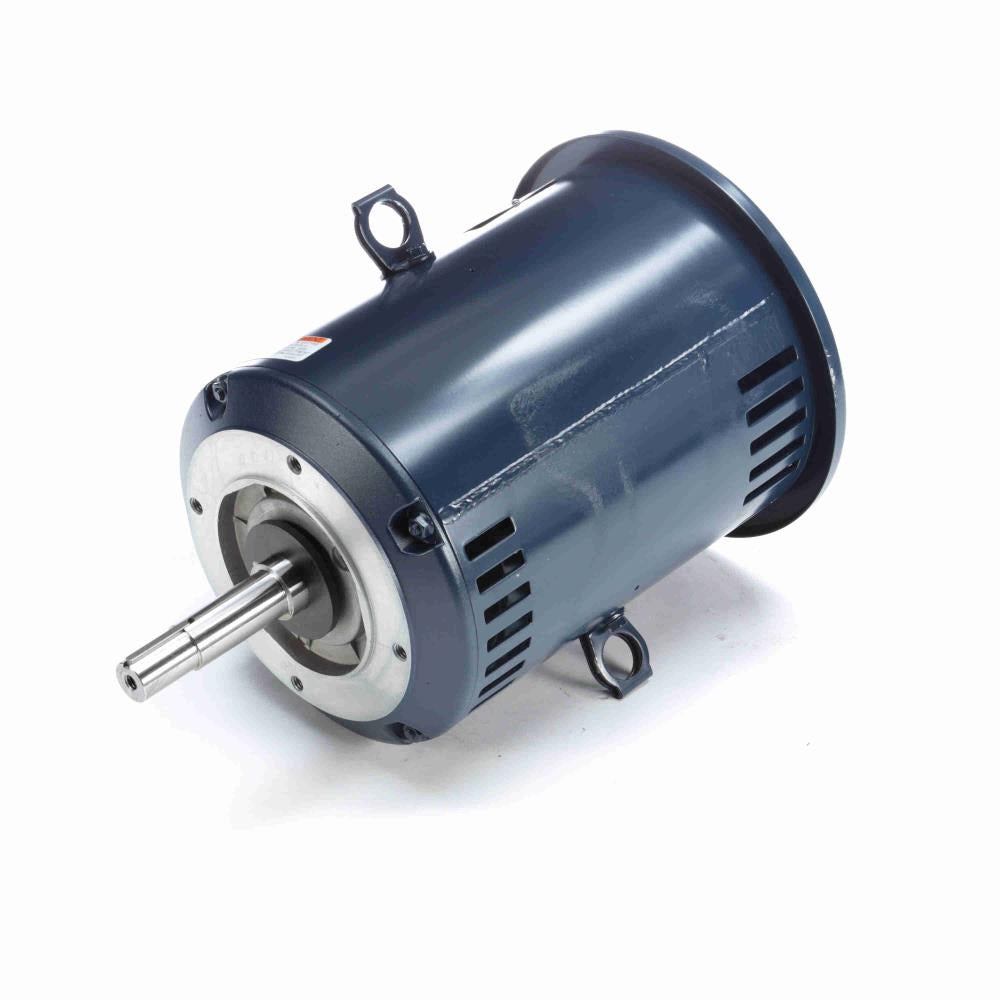

Marathon ME158B Close Coupled Pump Motor 5 HP 1755 RPM

Product Description

The Marathon ME158B Close Coupled Pump Motor is a reliable choice for many industrial applications. This motor provides 5 HP with a rotational speed of 1755 RPM. Its C-Face and footless mounting design ensure versatility in installation.

• 5 HP motor with a speed of 1755 RPM
• Three Phase, 230/460 Voltage
• ODP enclosure with rolled steel material

Product Highlights

This 5 HP motor from Marathon delivers excellent performance for various pump applications. Its three-phase, 230/460 voltage setup ensures robust and efficient operation.

Product Information

Standard Information

• Brand: Marathon
• MPN: ME158B
• Type: Close Coupled Pump Motor

Technical Specifications

• Electrical Type: Three Phase
• HP: 5
• RPM: 1755
• Frame: 184JMV
• Enclosure: ODP
• Voltage: 230/460
• Rotation: REV
• Material: Rolled Steel
• Mounting: C-Face / Footless
• Amperage: 12.6/6.3
• Shaft Type: Single
• Weight: 97 lbs
• Length: 42 inches
• Width: 22 inches
• Height: 19 inches
