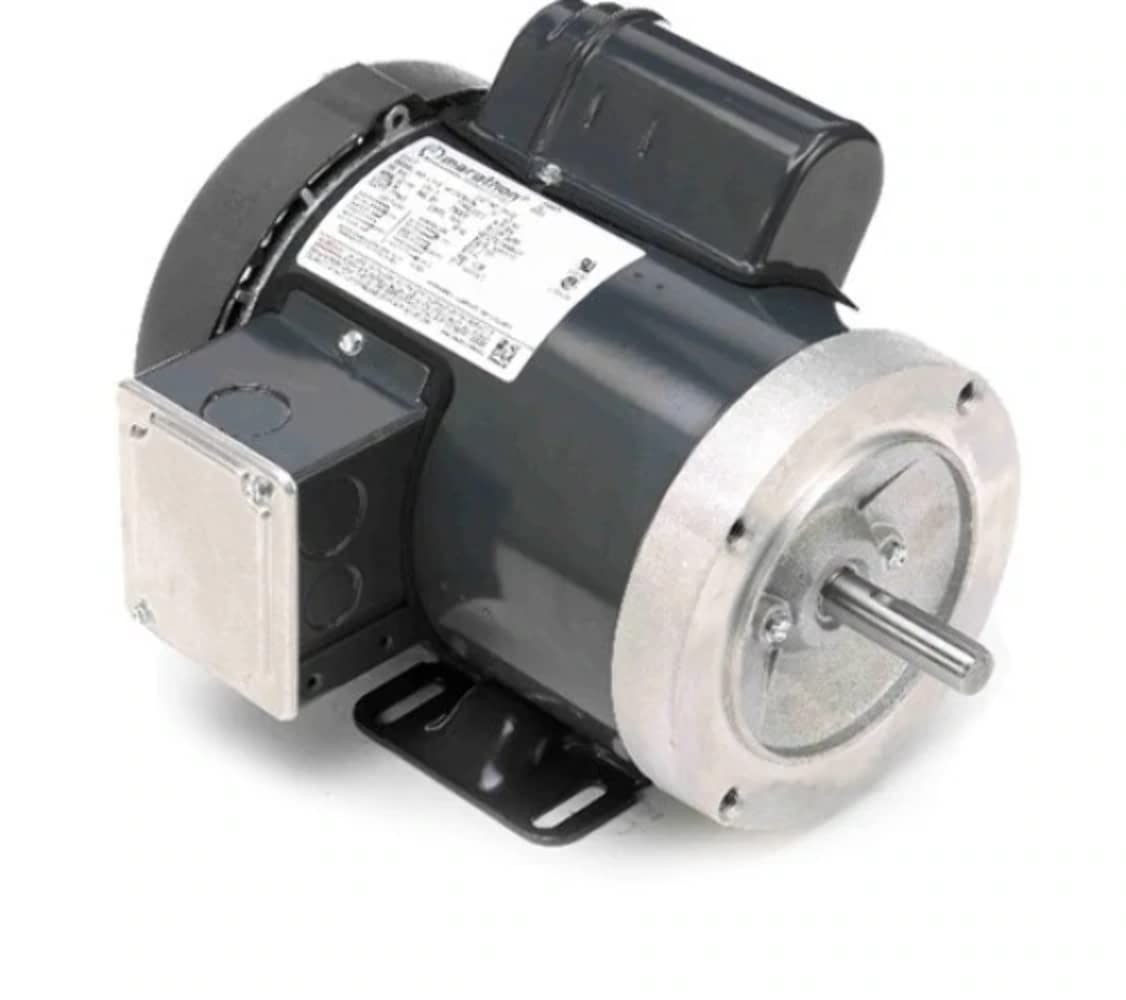

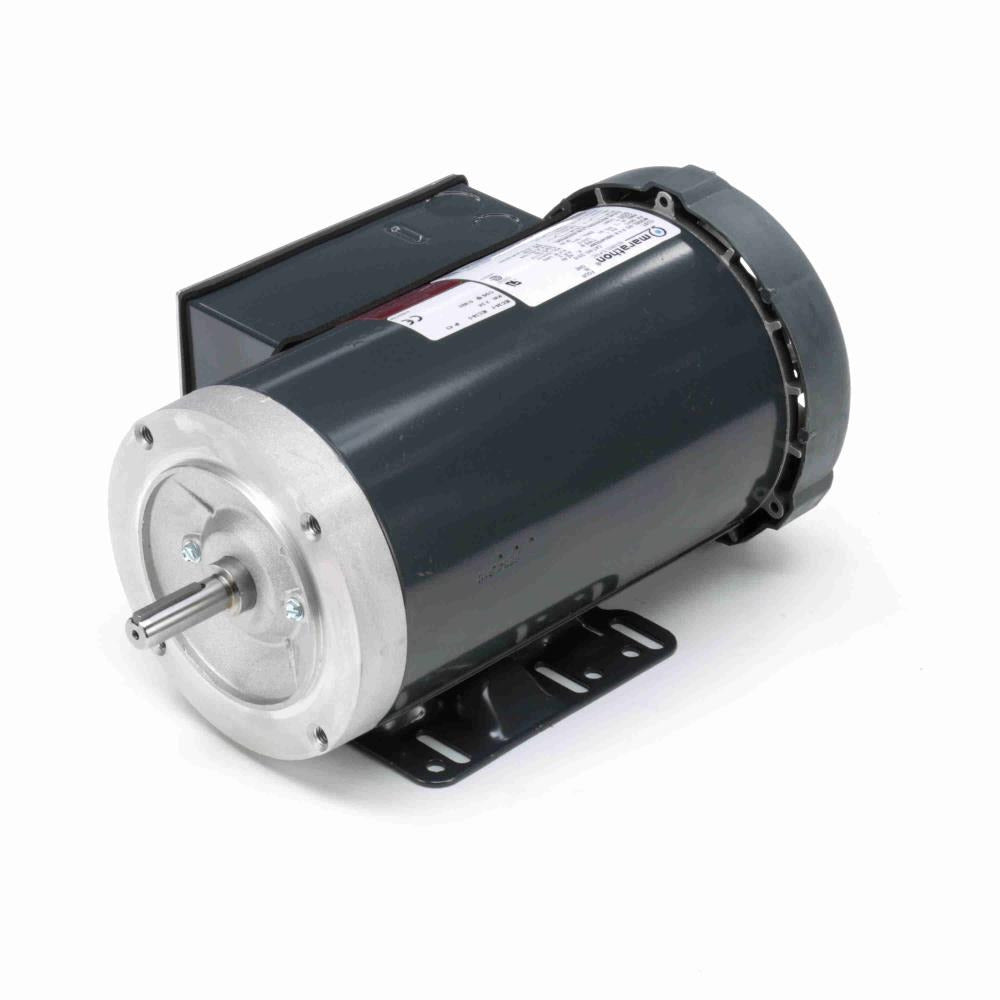

Marathon Electric MD316 General Purpose Motor 3 HP 3600 RPM TEFC Ball Bearing 56HC Frame 208-230 VAC

Product Description

The Marathon Electric MD316 is a general-purpose capacitor start motor. This motor operates at 3 horsepower and has a maximum speed of 3600 RPM. It is designed for single-phase operation and functions at 208-230 VAC. The motor features a 56HC frame, totally enclosed fan cooled (TEFC) enclosure, C-face mounting, and a robust ball bearing system which ensures reliable performance.

• General purpose motor with single-phase operation and one-speed functionality.
• Operates at 3 horsepower with a maximum speed of 3600 RPM.
• 56HC frame with TEFC enclosure, C-face mounting, and ball bearing system.

Product Highlights

The Marathon Electric MD316 general purpose motor is ideal for a variety of applications. This motor provides consistent performance with its robust design, ensuring longevity and efficiency. It is highly suitable for use in HVAC systems, industrial equipment, and other machinery requiring reliable motor functions.

Product Information

Standard Information

• Brand: Marathon Electric
• Manufacturer: Marathon Electric
• MPN: MD316
• ASIN: B007ZQPX04

Technical Specifications

• Horsepower: 3 hp
• Speed: 3600 RPM
• Voltage: 208-230 VAC
• Frame: 56HC
• Enclosure: TEFC
• Mounting: C-face
• Shaft Type: Single
• Amperage: 13.1-11.8 Amp
• Material: Rolled Steel
• Weight: 50 pounds
