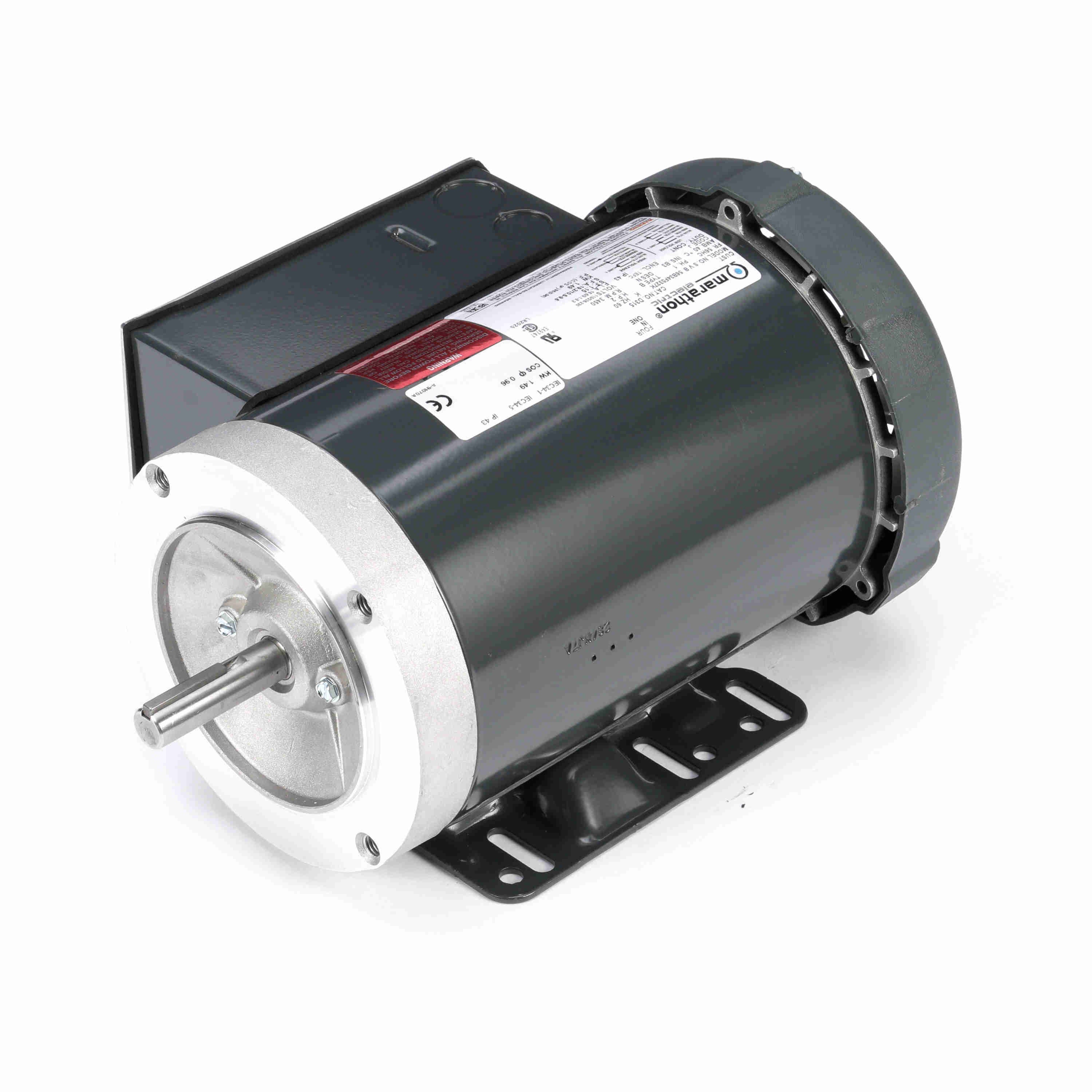

Marathon MD315 General Purpose Motor 2 HP 115/208-230

Product Description

The Marathon MD315 is a general purpose motor designed for various industrial applications. This motor operates on single phase and supports a voltage range of one hundred fifteen to two hundred thirty volts. With a horsepower rating of two, this motor is suitable for a variety of uses.

• Capacitor start electrical type
• TEFC enclosure for enhanced protection
• Bolt-on base mounting for easy installation

Product Highlights

The Marathon MD315 motor is built from rolled steel for durability and features a single shaft type. It is designed for reliable performance in challenging environments.

Product Information

Standard Information

• Amperage: 16.6/9.4-8.3
• Frame Size: 56HC

Technical Specifications

• Voltage: 115/208-230
• Diameter: 6.5 inches
• Height: 11 inches
• Length: 17 inches
• Weight: 38 lbs
• Rotation: REV
• Phase: Single
• Overload Protection: No
