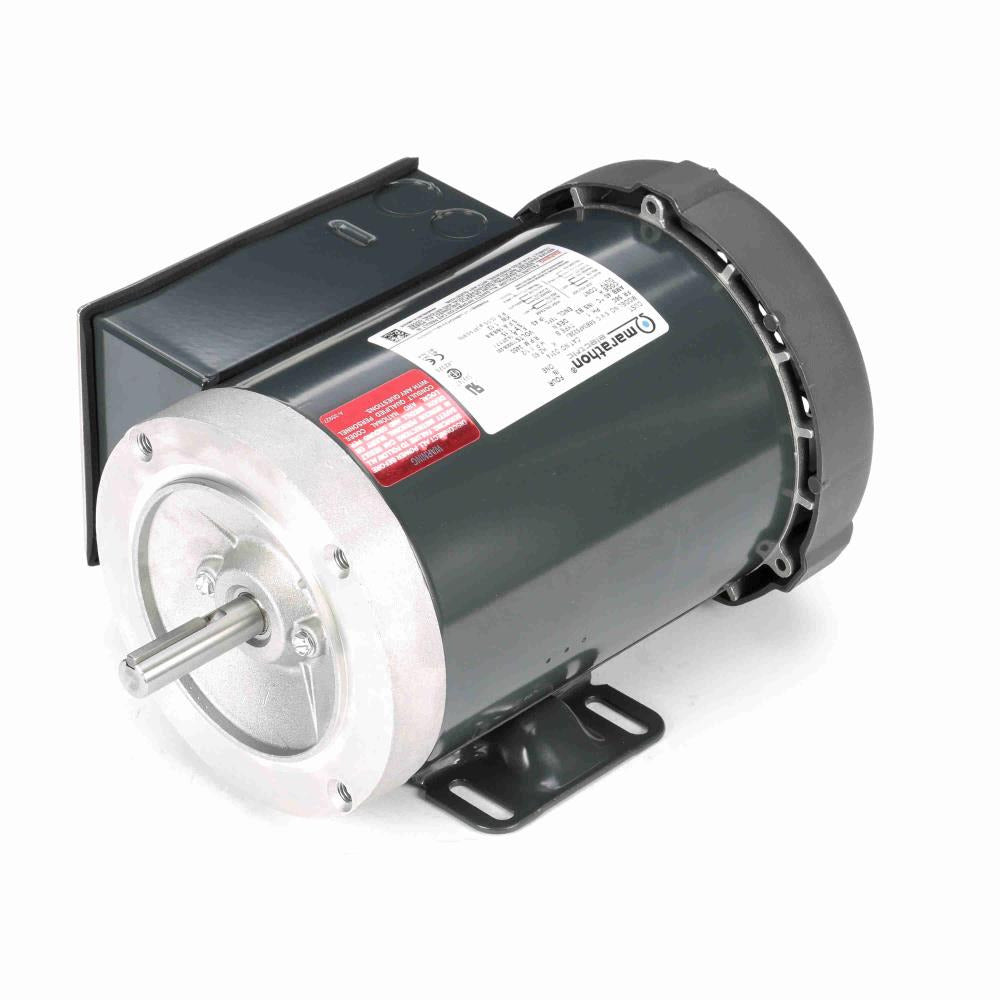

Marathon MD314 General Purpose Motor 1 1/2 HP 56 Frame

Product Description

The Marathon MD314 is a general purpose motor designed for a variety of applications. It has a power rating of one and a half horsepower and is equipped with a robust rolled steel enclosure. The motor features a bolt-on base for easy installation and is suitable for single-phase power requirements. The MD314 operates efficiently on voltages of one hundred fifteen, two hundred eight, or two hundred thirty.

• Powerful one and a half horsepower
• Durable rolled steel construction
• Easy installation with bolt-on base

Product Highlights

This motor is ideal for HVAC systems, pumps, and general industrial applications where reliable power is needed.

Product Information

Standard Information

• Frame: 56
• Enclosure: TEFC

Technical Specifications

• Electrical Type: Cap Start
• Voltage: 115/208-230
• Phase: Single
• Amperage: 14.2/7.7-7.1
• Diameter: 6.5 inches
• Shaft Type: Single
• Rotation: REV
