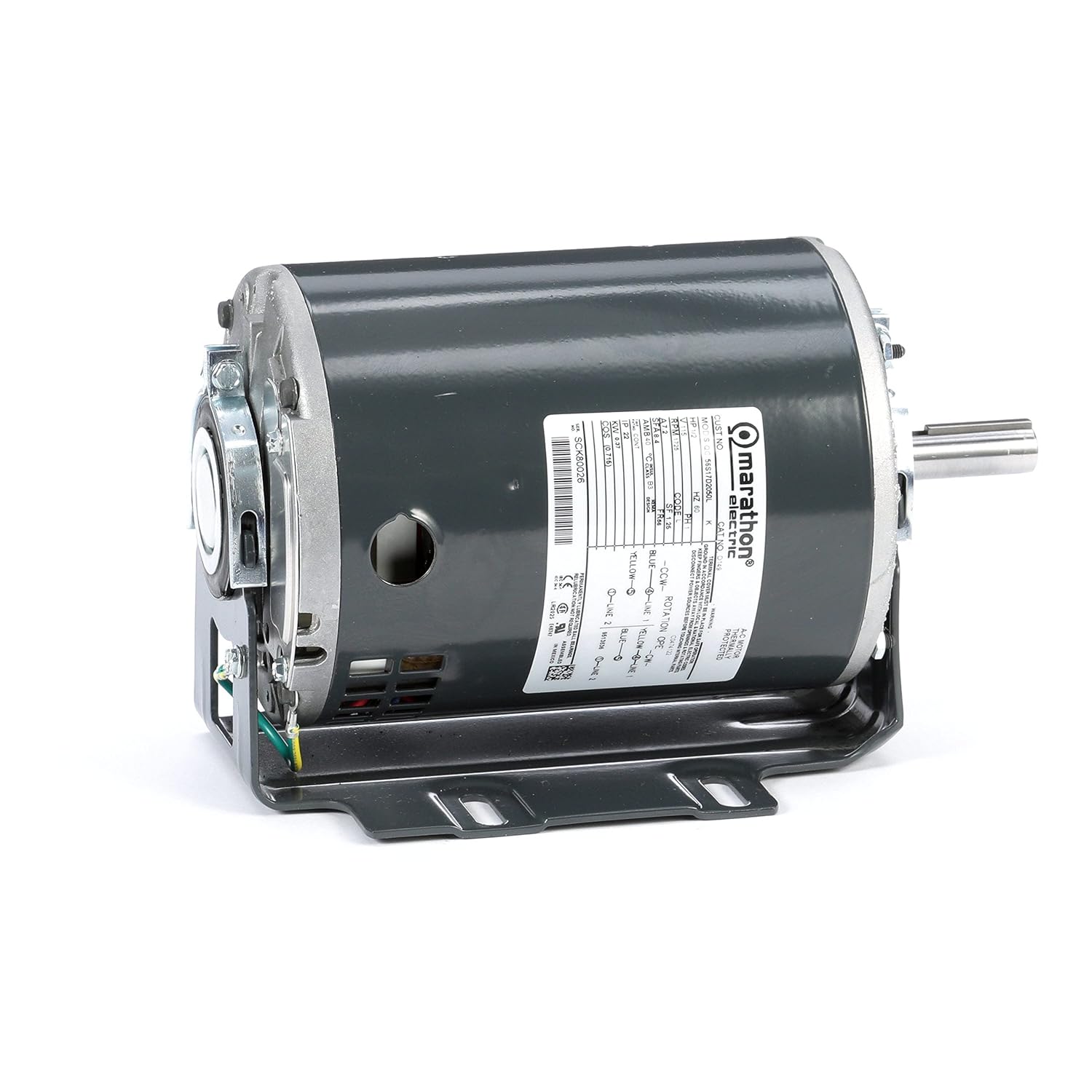

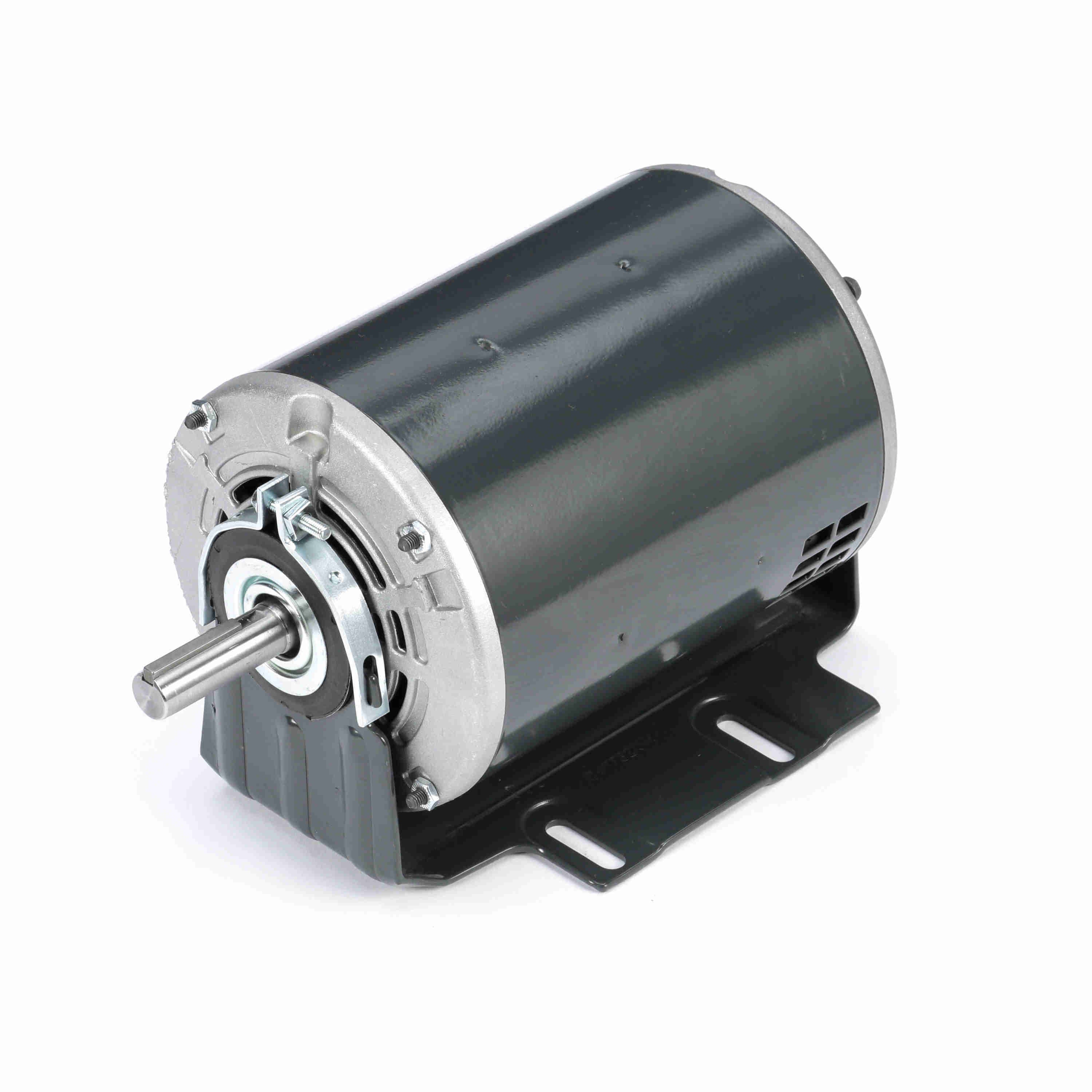

Marathon MD149 Open Drip Proof Belt Drive Motor 1/2 hp 1725 RPM 115 Volts

Product Description

The Marathon MD149 Belt Drive Motor is ideal for various applications. This motor, with MPN MD149, operates on a single split phase and features one-speed operation. It delivers 1/2 hp power, a maximum speed of 1725 RPM, and runs at 115 volts.

• Single split phase, one-speed operation
• 1/2 hp with a maximum speed of 1725 RPM
• 56 frame, ODP enclosure with resilient ring mounting

Product Highlights

This Marathon Electric motor is designed with an open drip proof (ODP) enclosure and a resilient ring mount. It includes a ball bearing system and auto protection. With an operational amperage of 7.2, this motor is built for reliability and efficiency.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MD149
• Speed: 1725 RPM
• Voltage: 115 Volts
• Horsepower: 0.5 hp

Technical Specifications

• Frame: 56
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Mounting: Resilient Ring
• Material: Rolled Steel
• Amperage: 7.2
• Shaft Type: Single
• Weight: 19 pounds
