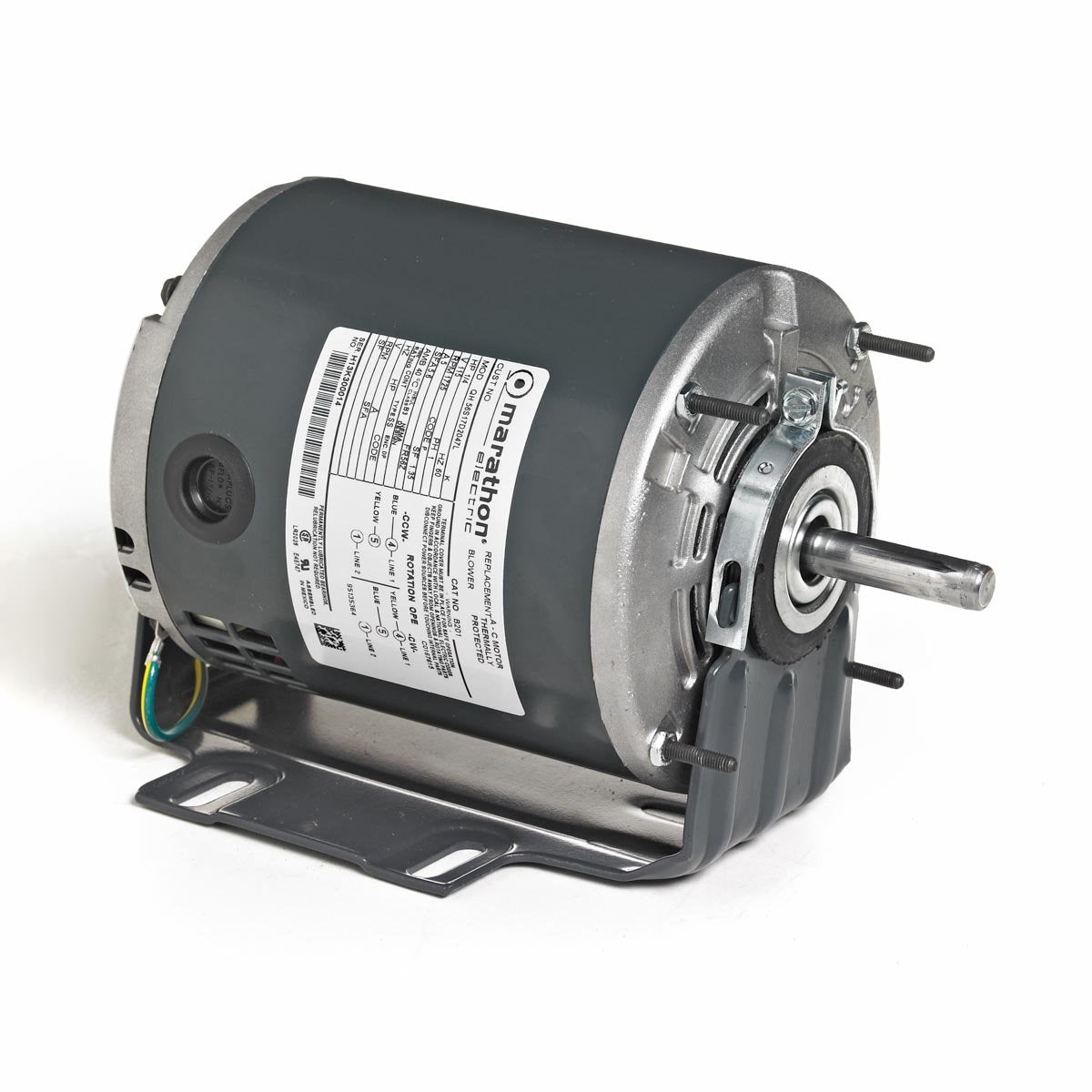

Marathon MD118 56 Frame Open Drip Proof 56C34D2106 Belt Drive Motor 1 hp 3600 RPM 115/208-230 VAC 1 Split Phase 1 Speed Ball Bearing Resilient Ring Mount

Product Description

The Marathon MD118 is a 56 frame, open drip proof belt drive motor designed for various industrial applications. With a 1 hp capacity, this motor operates at 3600 RPM and supports 115/208-230 VAC power supply. It features a single split phase and one-speed operation with ball bearings and a resilient ring mount.

• 1 horsepower capacity
• 3600 RPM speed
• Supports 115/208-230 VAC power supply

Product Highlights

This motor is suitable for a range of industrial and commercial applications, offering reliable performance and durability. Key features include a resilient base, automatic overload protection, and single-phase operation.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MD118

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1 hp
• Frame: 56
• Diameter: 6.5
• Enclosure: ODP (Open Drip Proof)
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV (Reversible)
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 12.0/6.2-6.0
• Shaft Type: Single
