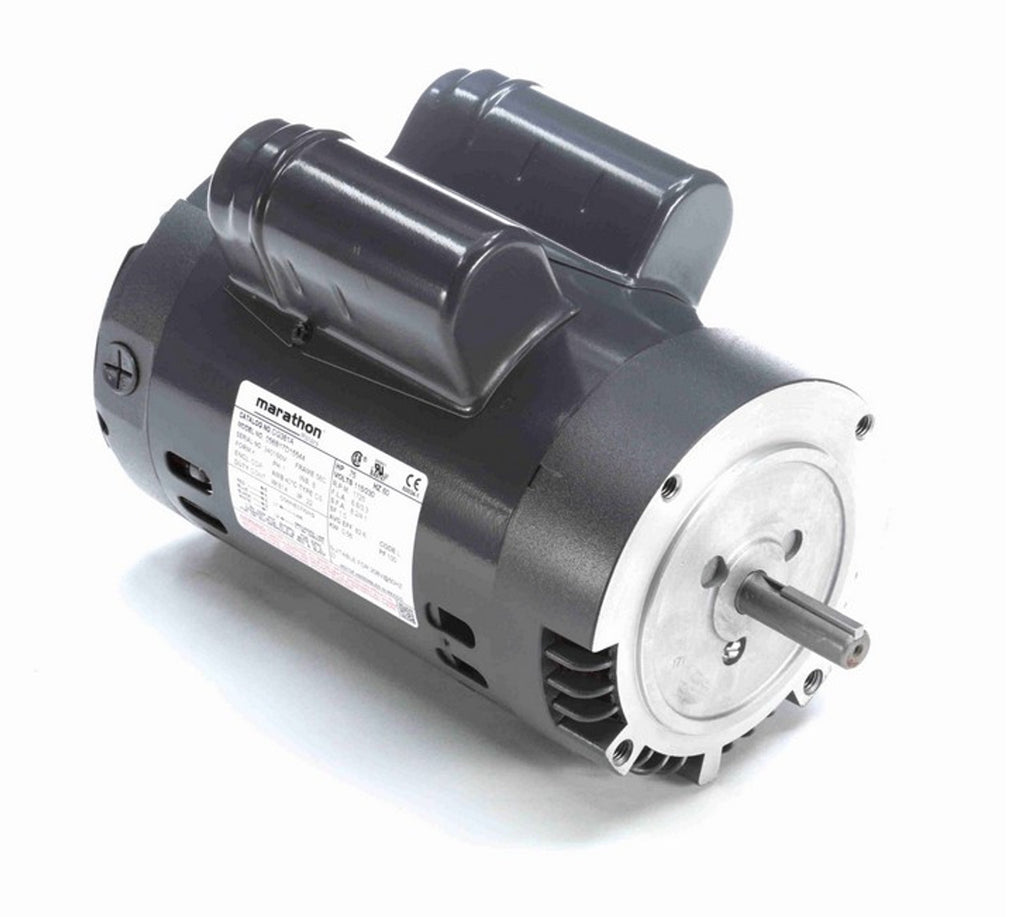

Marathon Motors MCG361B General Purpose Motor 3/4 HP NEMA 56C

Product Description

The Marathon Motors MCG361B is a three-quarter horsepower general purpose motor. This motor operates at speeds of 1725 or 1800 RPM and is ideal for a range of applications. It has a NEMA 56C frame and features a keyed shaft with sizes of five-eighths inch diameter by one and seven-eighths inch length. It works with power supplies of 115/208-230 or 115/230 volts, drawing a current of 6.2 amps at 60Hz.

• Horsepower: 3/4 HP
• Speed: 1725 or 1800 RPM
• Enclosure: Open Drip Proof (ODP)

Product Highlights

This motor is suitable for various setups requiring reliable performance. Its versatile mounting options and durable construction make it a suitable choice for many environments.

Product Information

Standard Information

• Manufacturer Part Number: MCG361B
• Horsepower: 3/4 HP

Technical Specifications

• Speed: 1725 RPM or 1800 RPM
• Frame Type: NEMA 56C
• Input Voltage: 115/208-230 volts
• Input Current: 6.2/3.4-3.1 amps
• Frequency: 60Hz
• Service Factor: 1.25
• Enclosure: Open Drip Proof
• Mounting Type: C-face
• Shaft Type: Keyed
• Shaft Dimensions: 5/8 inch diameter x 1 7/8 inch length
• Rotation: Selective CCW
• Bearing Type: Ball bearings
• Insulation Class: Class B
• Overload Protection: None
• Reversible: Yes
• C-Dimension: 12.31
• Face Mounting: 4 threaded bolt holes, 5 7/8 inches center to center on the shaft
