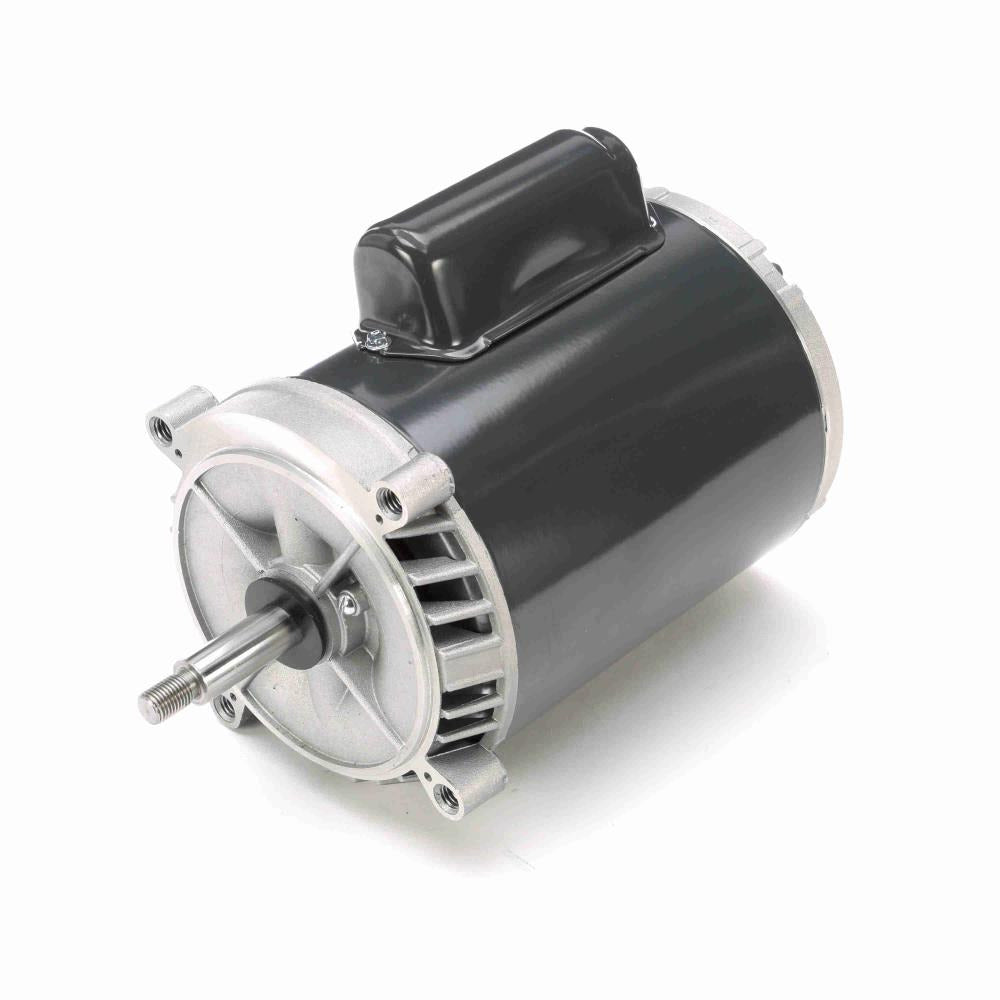

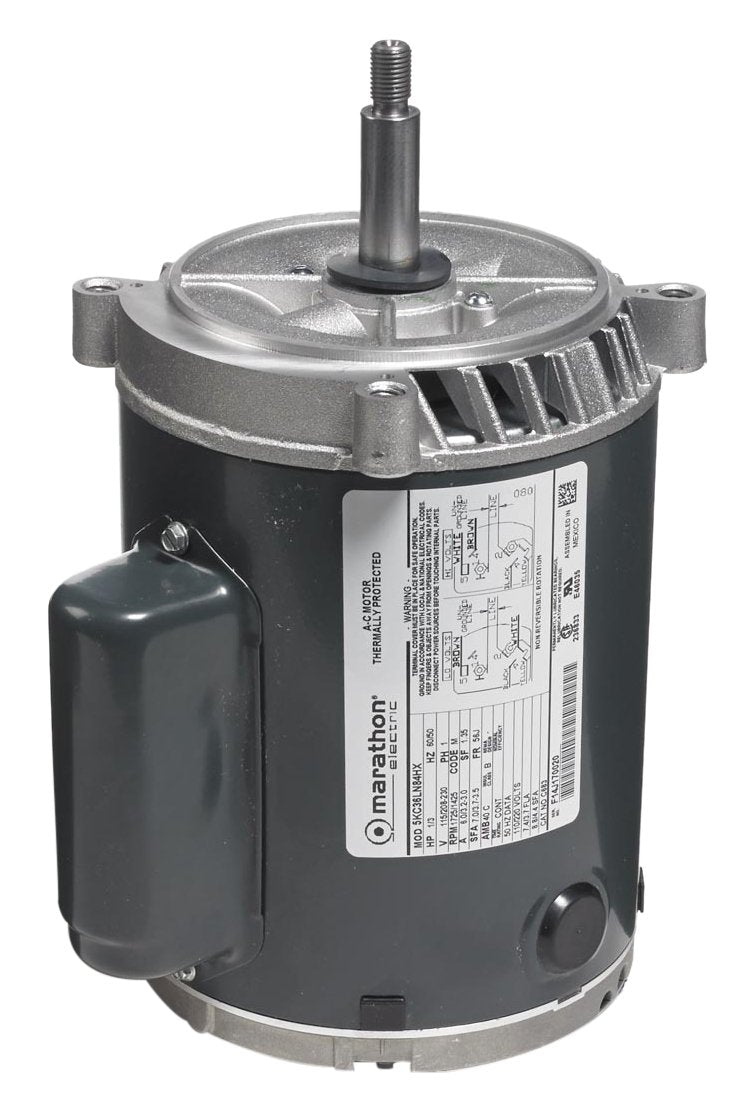

Marathon Electric MC683 Jet Pump Motor 1 Phase 1/3 hp 115/208-230 VAC

Product Description

The Marathon Electric MC683 is a jet pump motor designed for efficient operation in various pumping applications. With a horsepower rating of one third and a voltage range of one hundred fifteen to two hundred thirty volts, this motor is suitable for both residential and light commercial use. It operates at two speeds, offering the flexibility needed in different situations, and has a C-face mounting style.

• Voltage: 115/208-230 VAC
• Speed: 1800/1500 RPM (two speeds)
• Frame: 56J

Product Highlights

The MC683 features an open drip-proof enclosure, which protects internal components while allowing for proper airflow. Its robust ball bearing design supports longevity and reduces maintenance requirements.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC683

Technical Specifications

• Horsepower: 0.33 hp
• Amperage: 6.0, 3.2-3.0
• Dimensions: 14 x 10 x 9 inches
• Weight: 17 lbs
• Frame Size: 56J
• Phase: Single
• Mounting Type: C-Face, Footless
• Material: Rolled Steel
