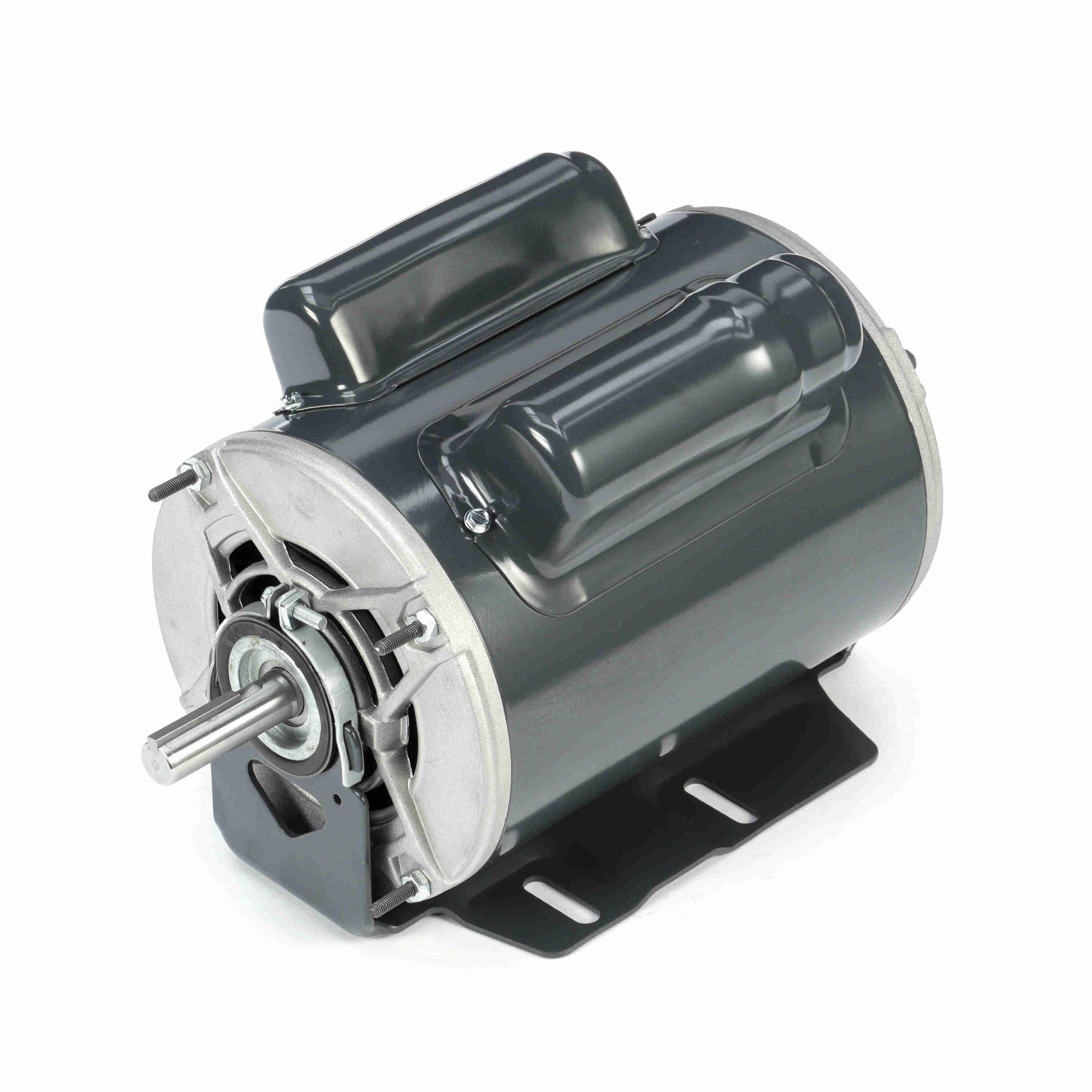

Marathon MC475 56 Frame 1 hp Electric Motor 1725 RPM 115 VAC Belt Drive

Product Description

This Marathon MC475 belt drive motor is designed for versatile use across HVAC systems and various electrical applications. This single-phase, two-speed motor operates at 1 hp and can reach a maximum speed of 1725 RPM. The motor runs at 115 VAC and has an amperage of 10.8 and 7.4. The 56 frame with an open drip proof (ODP) enclosure ensures optimal cooling and protection. It features a resilient ring mounting and a ball bearing system for durability.

• Single-phase belt drive motor with two-speed operation
• Runs at 1 hp with a max speed of 1725 RPM
• 56 frame with open drip proof (ODP) enclosure

Product Highlights

The Marathon MC475 motor is suitable for HVAC/R applications and fan and blower operations. Its capacitor start allows for reliable performance in multiple settings. With its resilient base mounting and ball bearing system, the motor ensures a long lifespan and smooth operation.

Product Information

Standard Information

• MPN: MC475
• Brand: Marathon Electric
• Manufacturer: Marathon

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1 1/3
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP (Open Drip Proof)
• Phase: Single
• Voltage: 115
• Rotation: REV (Reversible)
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 10.8/7.4
• Shaft Type: Single
• Speeds: 2
