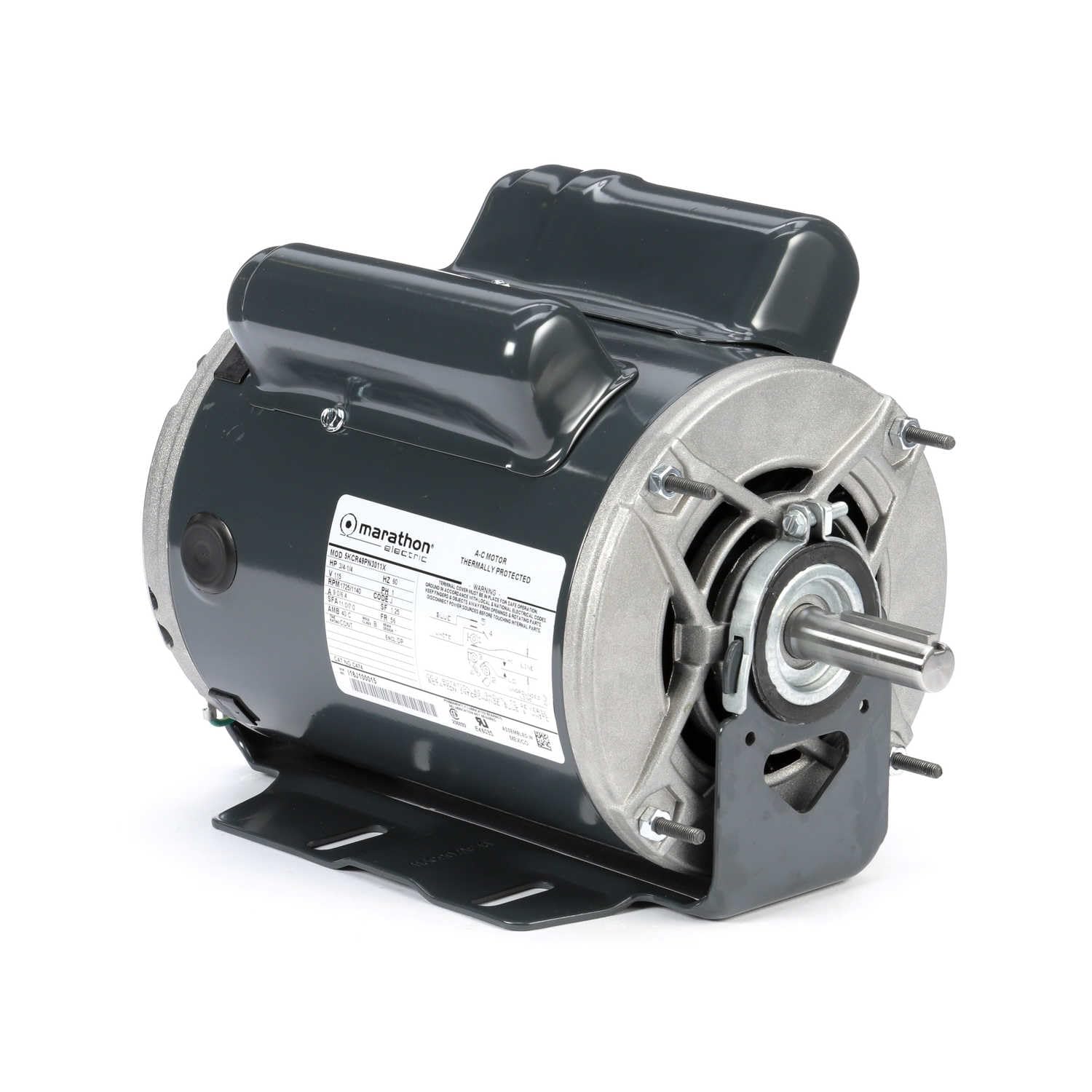

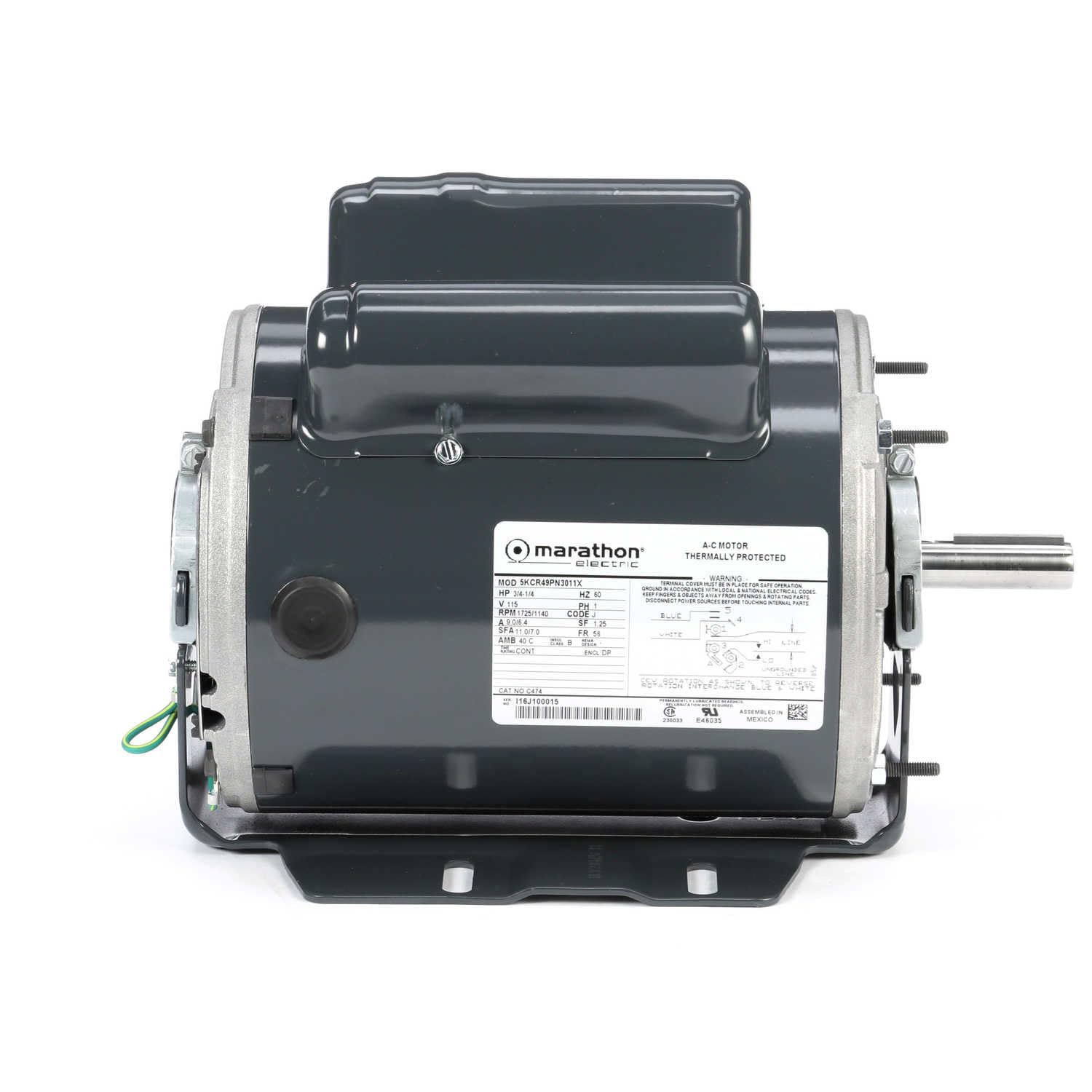

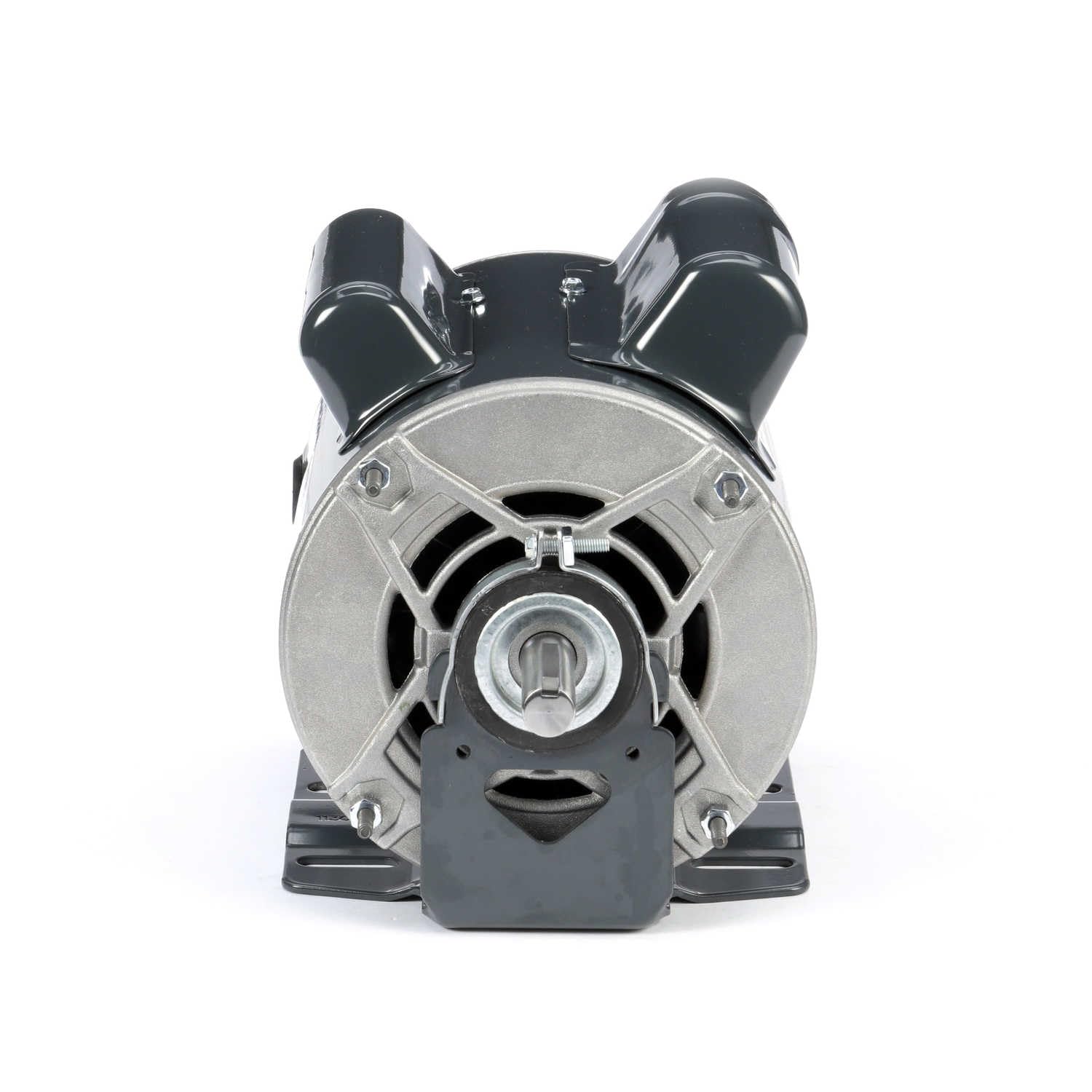

Marathon MC474 General Purpose Motor 0.75 HP 115 Volts 1725 RPM

Product Description

The Marathon MC474 General Purpose Motor offers reliable performance for various applications. Designed for use in belt-driven systems, this motor features 3/4 horsepower and operates at 1725 RPM. It has an open drip proof enclosure and uses a capacitor start mechanism for efficient operation.

• Three-quarter horsepower motor
• Operates at 1725 RPM and 115 volts
• Single-phase with two speeds

Product Highlights

This motor is built to last with rolled steel material and offers automatic overload protection. Its resilient base ensures stable mounting, while the resilient ring mount protects the ball bearings.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC474
• Type: General Purpose Motor
• Frame: 56

Technical Specifications

• Horsepower: 0.75 HP
• Speed: 1725 RPM
• Voltage: 115 Volts
• Phase: Single
• Diameter: 6.5 inches
• Amperage: 9.0, 6.4
• Mounting Type: Resilient Base
• Material: Rolled Steel
• Enclosure: Open Drip Proof
• Rotation: REV
• Speeds: 2
