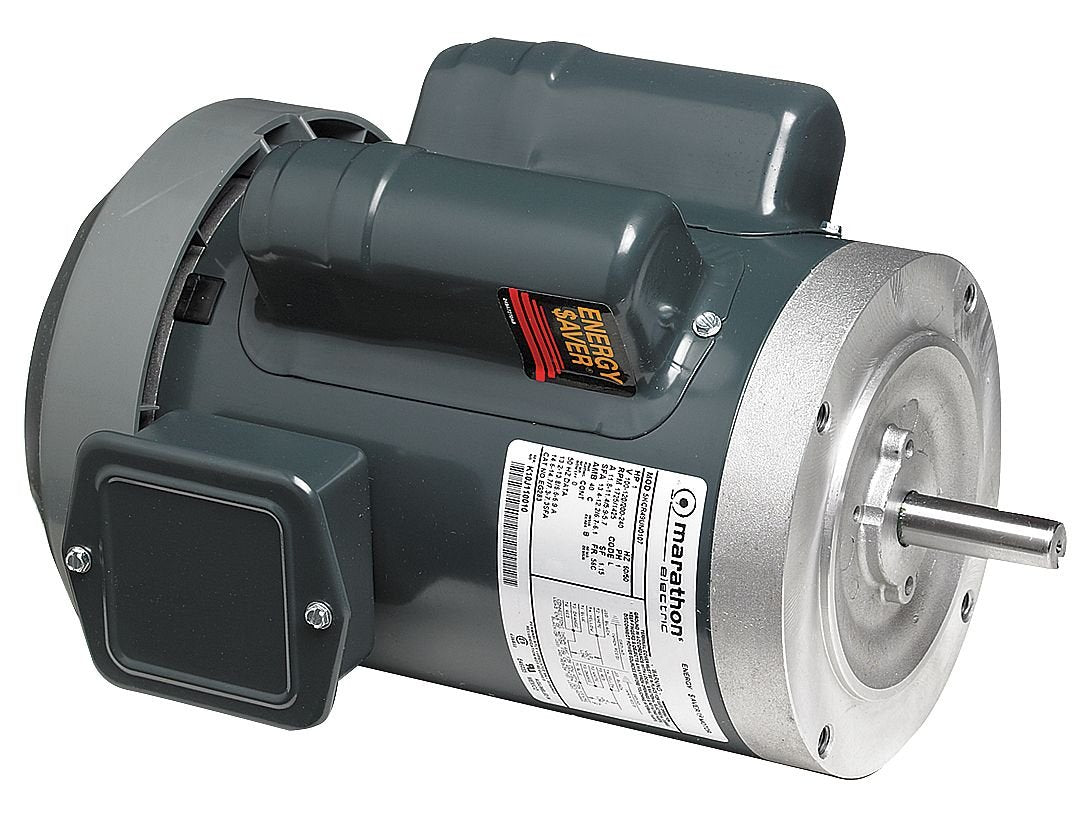

Marathon MC466 56C Frame Totally Enclosed Fan Cooled 5KCR49TN2155T General Purpose Motor 2 hp 3600 RPM 115/230 VAC 1 Phase 1 Speed Ball Bearing C-Face Capacitor Start

Product Description

The Marathon MC466 56C Frame Totally Enclosed Fan Cooled 5KCR49TN2155T General Purpose Motor is suitable for a wide range of applications. This motor has a power of 2 hp and operates at 3600 RPM. It runs on 115/230 VAC and is designed for single-phase operation. The motor includes a ball bearing system, a C-face, and uses a capacitor start method.

• 2 hp power
• 3600 RPM speed
• 115/230 VAC single-phase operation

Product Highlights

This motor is encased in a totally enclosed fan-cooled housing made of rolled steel. It is designed for general-purpose use, fitting a variety of applications within HVAC, pumps, fans, and compressors.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC466

Technical Specifications

• Frame: 56C
• Power: 2 hp
• Speed: 3600 RPM
• Voltage: 115/230 VAC
• Phase: 1
• Bearing: Ball
• Enclosure: Totally Enclosed Fan Cooled
• Start Method: Capacitor Start
• Material: Rolled Steel
• C-Face: Yes
