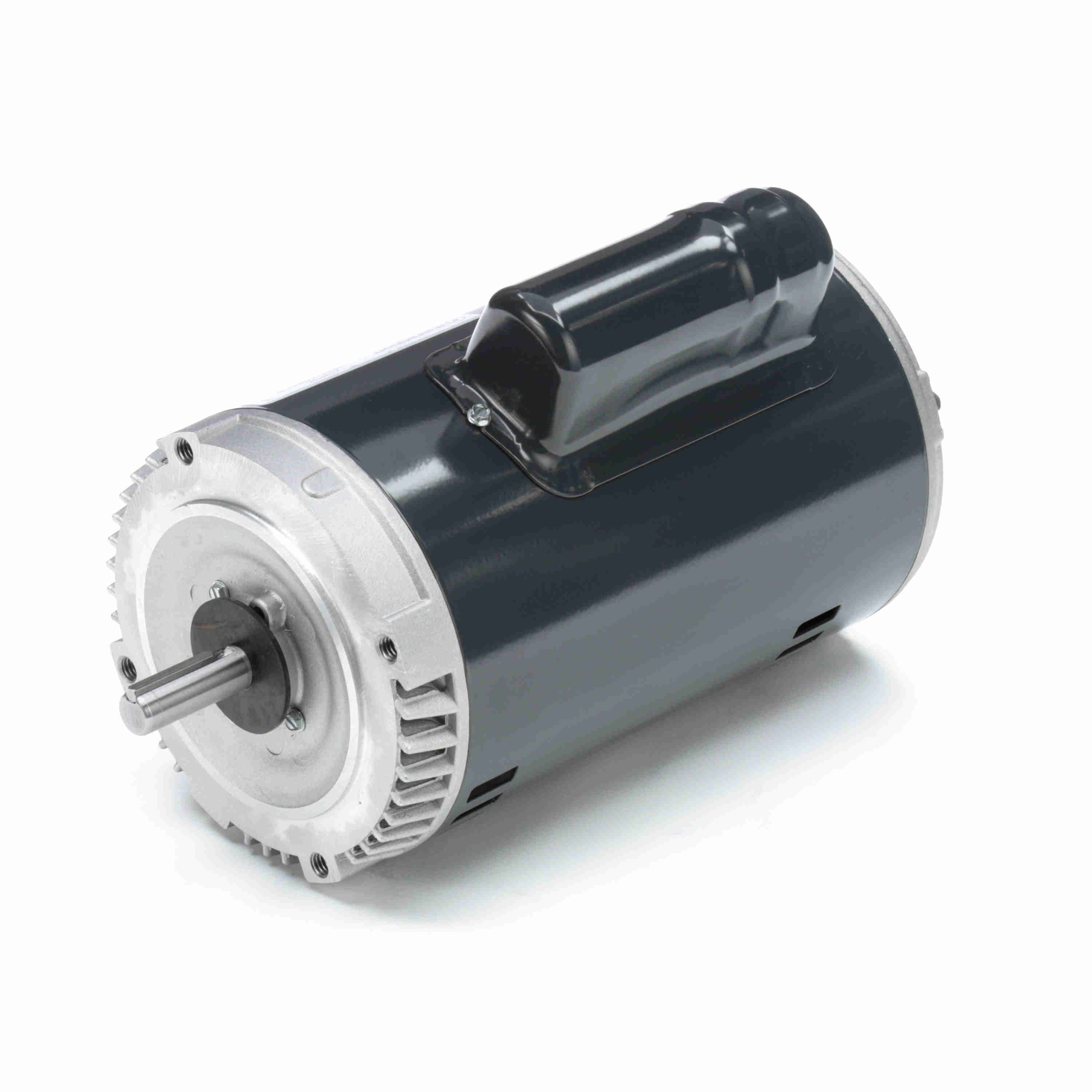

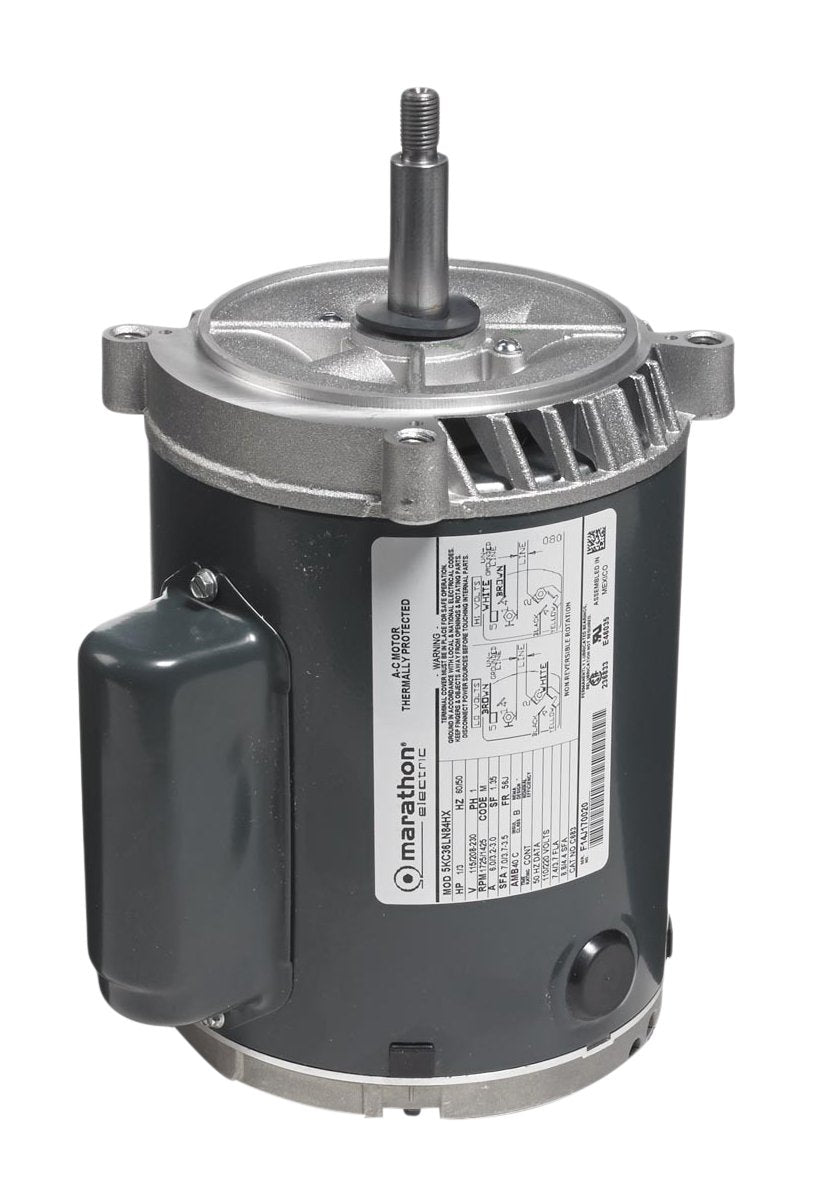

Marathon MC338 56C Frame Oil Burner Motor 2 hp 3600 RPM

Product Description

The Marathon Electric MC338 oil burner motor is built for reliable performance. This motor operates at 2 horsepower with a maximum speed of 3600 revolutions per minute. It is designed for 115/208-230 volts alternating current and runs on a single phase with one speed.

• 2 horsepower, 3600 RPM motor
• 115/208-230 volt, single phase
• Open drip proof enclosure, flange mounting

Product Highlights

The MC338 motor features a 56C frame and a ball bearing system. It is equipped with a capacitor start and offers auto protection. Weighing 38 pounds, it is easy to handle and install in various applications.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC338
• Product Name: Oil Burner Motor
• Application: Oil Burners

Technical Specifications

• Horsepower: 2 hp
• Speed: 3600 RPM
• Voltage: 115/208-230 VAC
• Amperage: 21.2, 11.5-10.6 amp
• Frame: 56C
• Enclosure: Open Drip Proof (ODP)
• Mounting: Flange
• Protection: Auto
