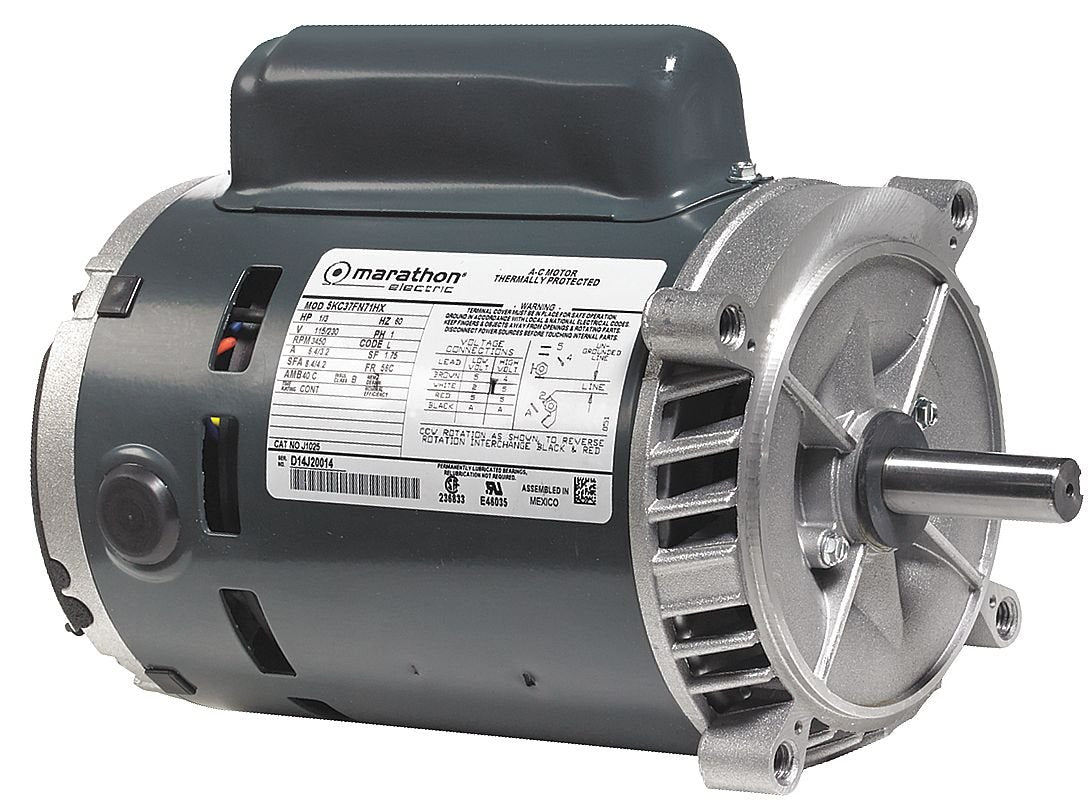

Marathon Electric MC336 Marathon C336 56C Frame Open Drip Proof 1-1/2 hp Oil Burner Motor

Product Description

The Marathon Electric MC336 is a single phase oil burner motor designed for reliable performance in demanding applications. This motor runs at one and a half horsepower and features a maximum speed of three thousand six hundred RPM. It operates on voltages of one hundred fifteen, two hundred eight, and two hundred thirty VAC. The motor has an open drip proof enclosure and ball bearing support.

• Single phase motor with one-speed operation
• Designed for oil burner applications
• Includes flange mounting for easy installation

Product Highlights

Ideal for HVAC professionals, the MC336 is suitable for a range of oil burner tasks, ensuring effective operation without overheating.

Product Information

Standard Information

• Voltage: 115/208-230 VAC
• Motor Type: Oil Burner Motor

Technical Specifications

• Horsepower: 1-1/2 hp
• Speed: 3600 RPM
• Frame Size: 56C
• Amperage: 18.4-9.8/9.2 A
• Weight: 27 lbs
• Enclosure Type: Open Drip Proof
• Mounting Type: Flange Mount
• Protection: Auto Protection
