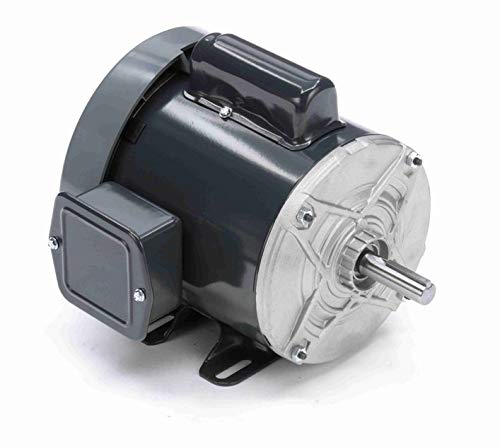

Marathon Electric MC261 Marathon C261 General Purpose Motor 1/2 hp 1800 RPM 115/208-230 VAC

Product Description

The Marathon Electric MC261 is a general purpose motor designed for a variety of applications. This motor features a power output of one half horsepower and operates at a speed of one thousand eight hundred RPM. It works with voltages of one hundred fifteen or two hundred eight to two hundred thirty VAC and is suitable for single-phase operations.

• TEFC Enclosure for optimal cooling
• Ball bearings for smooth operation
• Rigid base for stability

Product Highlights

The Marathon MC261 is built with a robust rolled steel frame, ensuring durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: Marathon Electric
• Model Name: C261
• Power Rating: 1/2 hp
• Speed: 1800 RPM
• Voltage: 115/208-230 VAC
• Frame Size: 56
• Phase: Single
• Weight: 21 lbs

Technical Specifications

• Enclosure Type: TEFC
• Mounting Type: Rigid Base
• Amperage: 8.6, 4.1-4.3
• Shaft Type: Single
• Bearing Type: Ball
• Overload Protection: None
