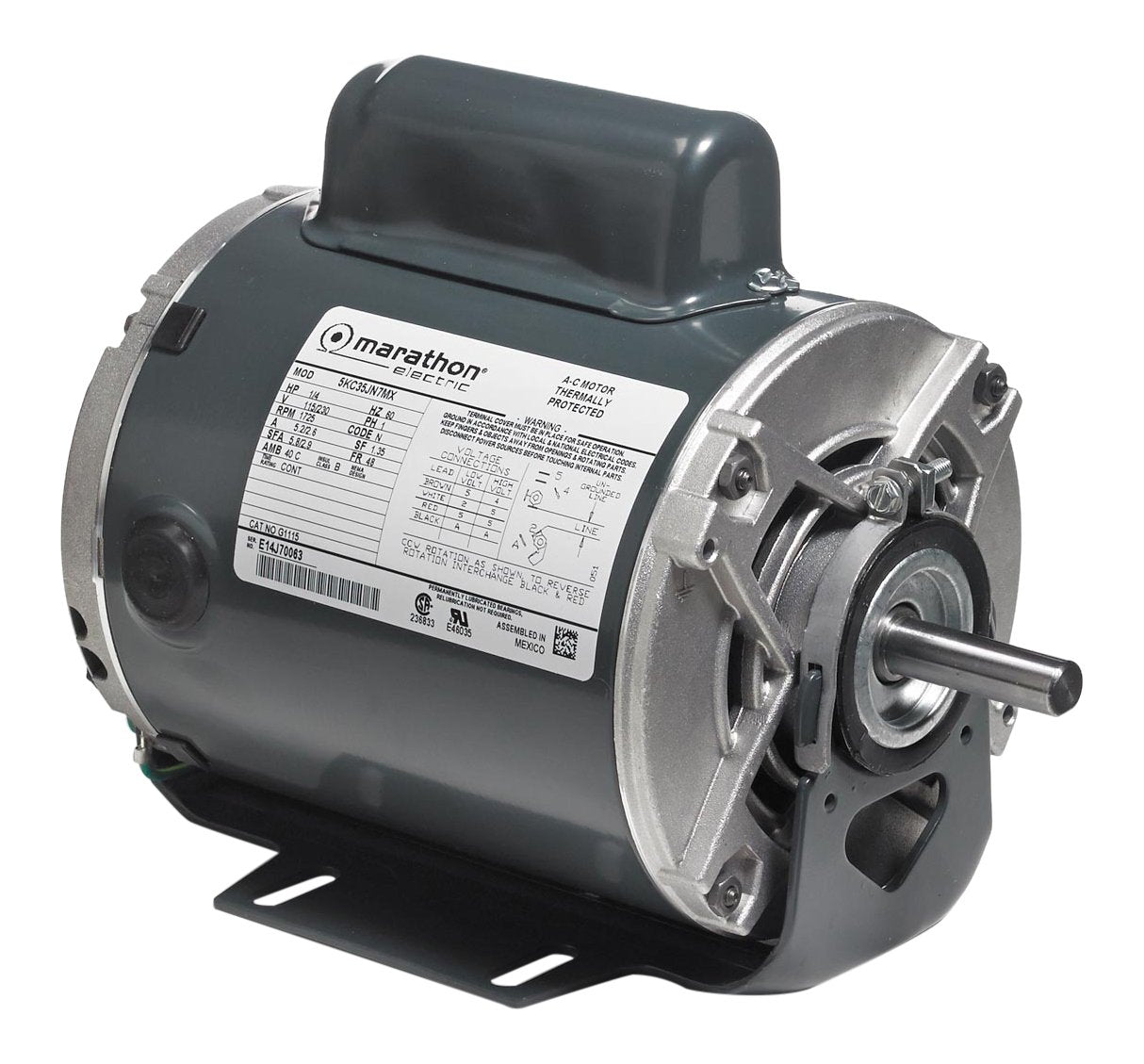

Marathon MC210 General Purpose Motor 0.33 HP 1725 RPM 115/208-230 VAC

Product Description

The Marathon MC210 General Purpose Motor is designed for a range of applications in the automotive, replacement parts, engine cooling, climate control, and heating sectors. This motor offers reliable performance with a 0.33 horsepower and 1725 RPM speed.

• 0.33 horsepower
• 1725 RPM
• 115/208-230 volts

Product Highlights

Designed for general purpose applications, the Marathon MC210 motor ensures efficiency and reliability. It features a cap start mechanism, a resilient base for mounting, and is built from rolled steel for durability.

Product Information

Standard Information

• Brand: Marathon
• MPN: MC210
• Model: C210

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 0.33 hp
• Speed: 1725 RPM
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Voltage: 115/208-230 VAC
• Rotation: Reversible (REV)
• Overload Protection: Automatic
• Material: Rolled Steel
• Mounting Type: Resilient Base
• Amperage: 6.0, 3.2-3.0
• Shaft Type: Single
