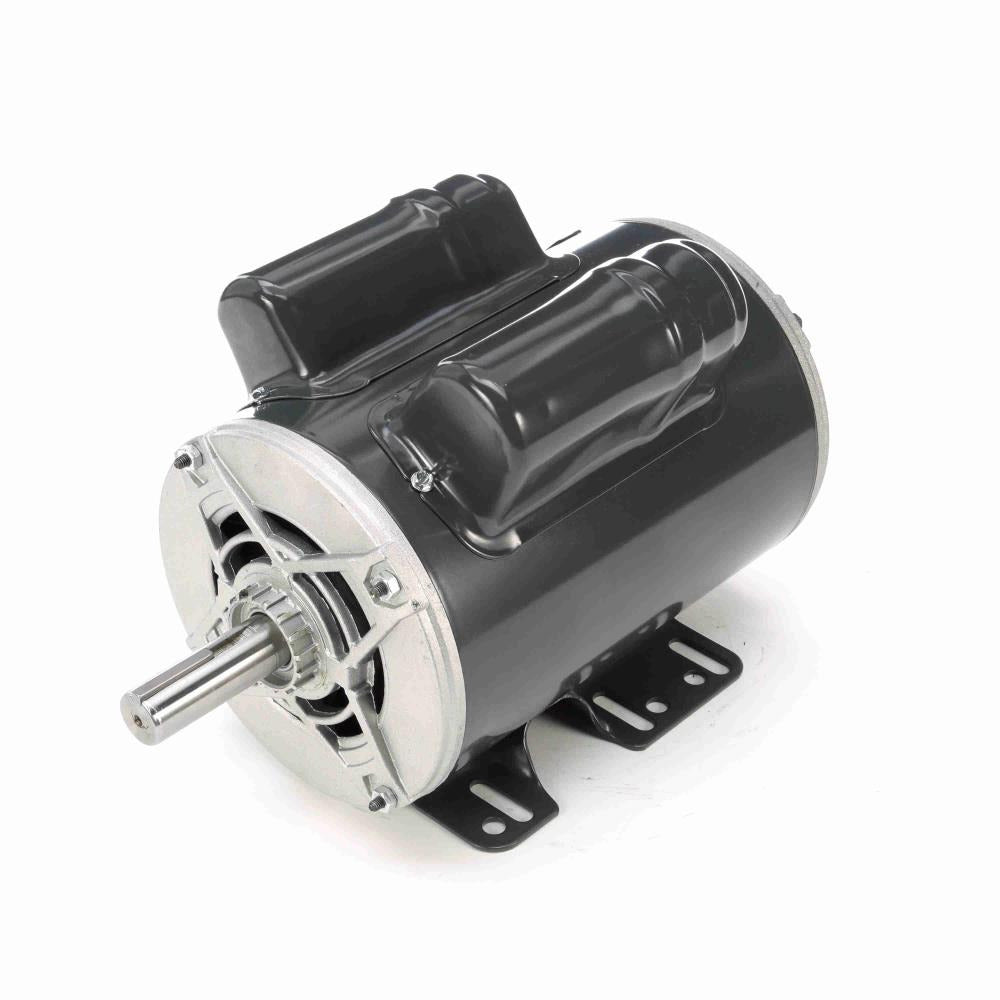

Marathon MC194 General Purpose Motor 3 HP 145T Frame Cap Start Single Phase 115/230 Voltage REV Rotation Rolled Steel ODP Enclosure Rigid Base

Product Description

The Marathon MC194 General Purpose Motor is a reliable choice for various industrial applications. It offers a power rating of 3 horsepower and features a 145T frame. This motor operates on a single-phase, with a voltage range of 115/230 volts.

• Amperage: 29.4, 14.7
• Shaft Type: Single
• Material: Rolled Steel

Product Highlights

The Marathon MC194 motor is designed for durability and performance. It is ideal for a wide range of general-purpose applications, offering reliable operation and robust construction.

Product Information

Standard Information

• Electrical Type: Cap Start
• HP: 3
• Frame: 145T
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload: None
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 29.4, 14.7
• Shaft Type: Single

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 3
• Frame: 145T
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation Direction: REV
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Amperage: 29.4, 14.7
• Shaft Type: Single
