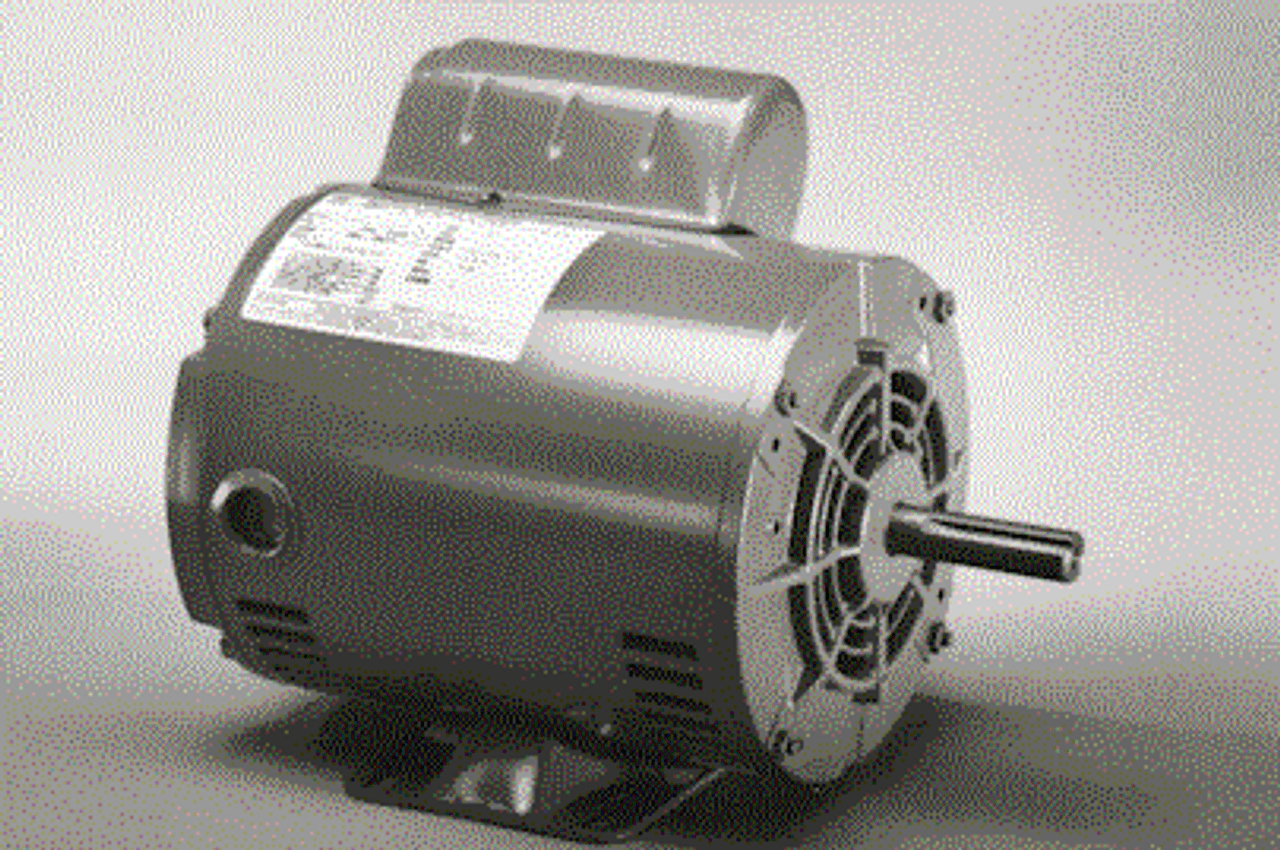

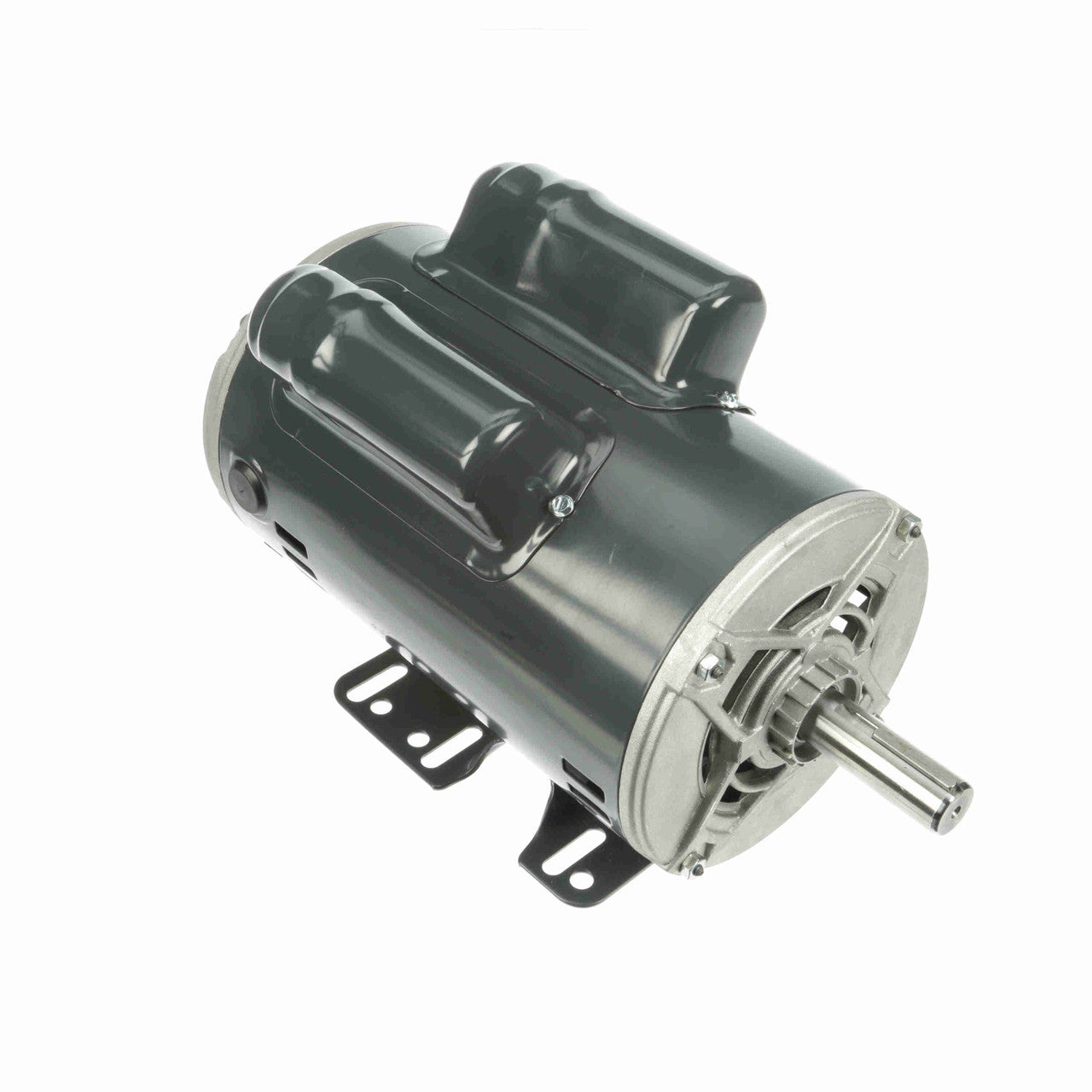

Marathon Motors MC193B General Purpose Motor 2 HP 115/208-230 VOLT

Product Description

The Marathon Motors MC193B is a single-phase general-purpose motor specifically designed for a variety of applications. It provides two horsepower at either one thousand seven hundred twenty-five or one thousand eight hundred RPM. This motor utilizes both capacitor start and capacitor run technology.

• Single phase motor with capacitor start for enhanced performance.
• Features a robust rigid base for secure mounting.
• Equipped with ball bearings for smooth operation and longevity.

Product Highlights

Ideal for applications that require high starting torque, the MC193B is optimized for relatively clean and dry working environments.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MC193B

Technical Specifications

• Horsepower: 2 HP
• Speed: 1725 RPM
• Frame Size: NEMA 56
• Input Voltage: 115/208-230 VOLT
• Input Current: 16.0/8.7-8.0 AMP
• Frequency: 60Hz
• Service Factor: 1.15
• Enclosure: DP
• Mounting Type: Rigid
• Rotation: Reversible
• Shaft Dimensions: 7/8 diameter x 2 1/4 length
• Bearing Type: Ball bearings
• Insulation Class: Class B
