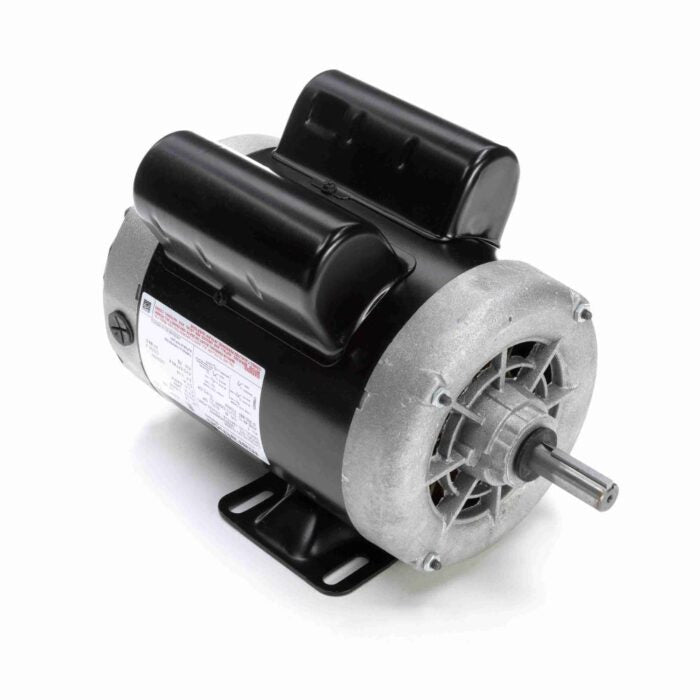

MARATHON MOTORS MC180 General Purpose Motor

Product Description

The MARATHON MOTORS MC180 is a general-purpose motor ideal for varied applications. This motor is designed as a single-phase, capacitor start motor featuring an open drip-proof enclosure. It operates at a speed range of approximately three thousand four hundred fifty to three thousand six hundred RPM. The automatic overload protector enhances safety during operation. The construction is made of rolled steel, suitable for durability in diverse conditions.

• Electrical Type: Capacitor Start
• Frame Size: 56
• Horsepower: 1 HP

Product Highlights

This motor is versatile and can function in various settings. Its robust design makes it suitable for industrial, commercial, and residential applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MC180

Technical Specifications

• Phase: Single
• Voltage: 115/230 V
• Overload Protector: Automatic
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled Steel
• Rotation: Clockwise/Counterclockwise
• RPM: 3600
• Amps: 12.4-6.4-6.2
• Mount: Rigid Base
• Bearing: Ball Bearing C180A
