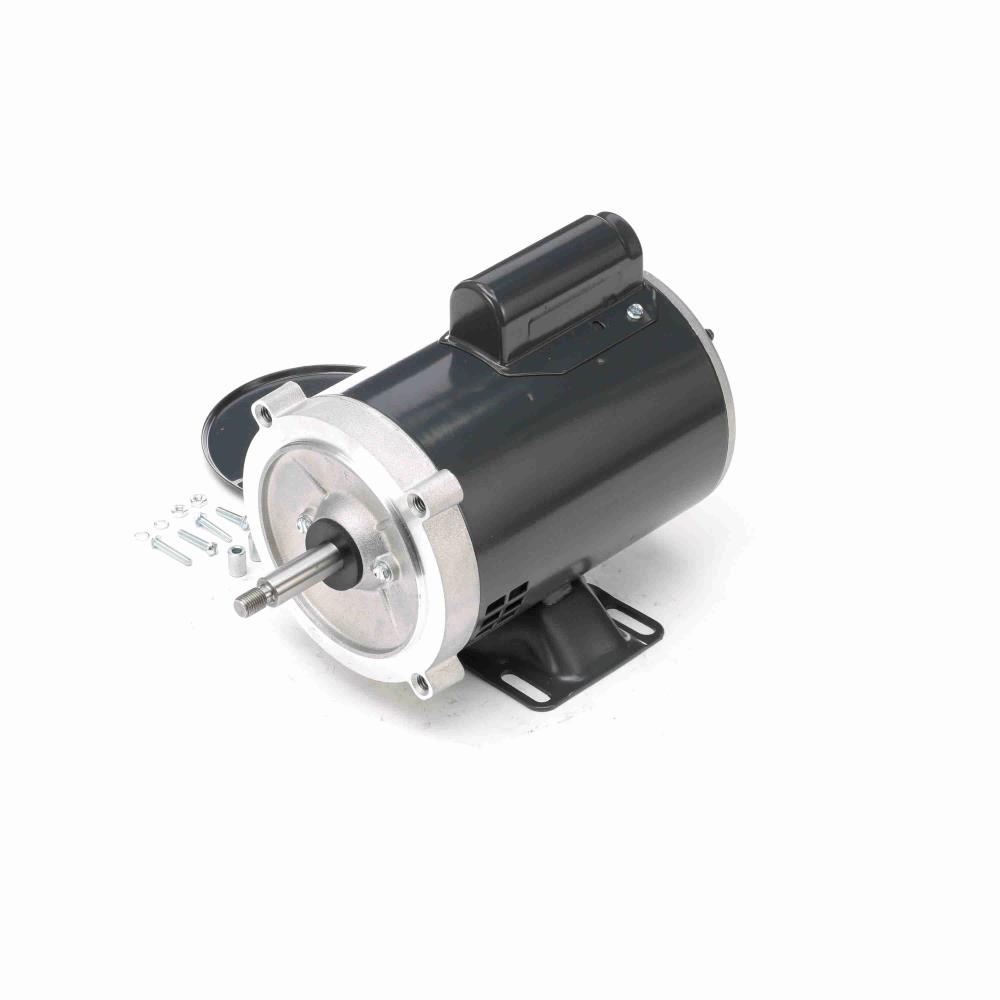

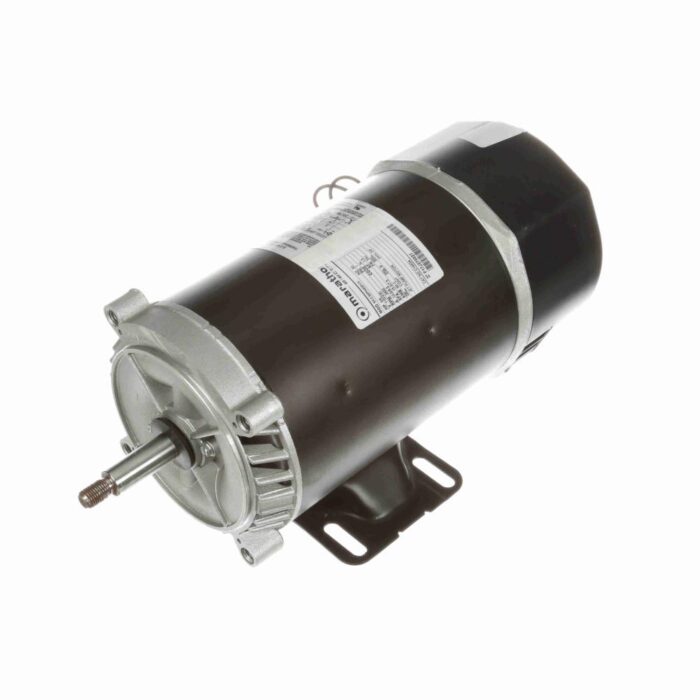

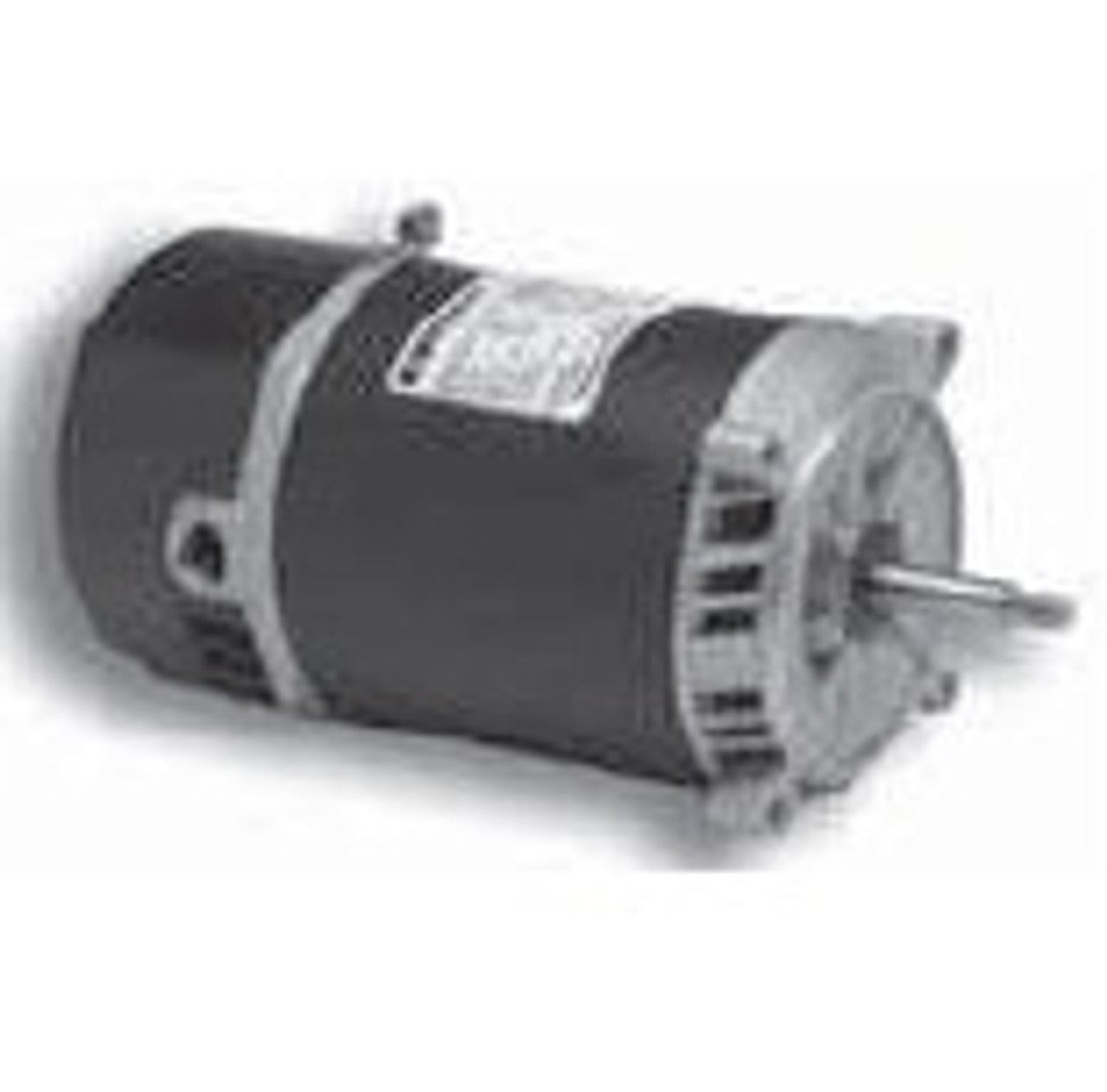

MARATHON MOTORS MC1463 Jet Pump Motor 3/4 HP Single Phase

Product Description

The MARATHON MOTORS MC1463 is a single-phase jet pump motor ideal for various pumping applications. This motor operates at dual voltages of one hundred fifteen or two hundred thirty volts. It features open drip proof (ODP) enclosure and includes automatic overload protection. The motor is designed for fixed clockwise rotation and has been recognized by UL and certified by CSA.

• Single-phase operation for reliable performance
• Fixed clockwise rotation for efficient pumping
• Open Drip Proof (ODP) enclosure for durability

Product Highlights

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MC1463

Technical Specifications

• Electrical Type: Capacitor start
• Phase: Single
• Input Voltage: 115/230
• Overload Protection: Automatic
• Frame: 56J
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled steel
• Horsepower: 3/4 HP
• Rotation: Fixed CW (Clockwise)
• RPM: 3600
• Number of Speeds: 1
• Service Factor: 1.5
• Full Load Amps: 11.6/5.8 FL Amps
• Frequency: 60 Hz
• Shaft: 5/8 inches diameter, 1-5/8 inches long threaded
• Insulation Class: Class B
• Base: Rigid
• Weight: 19 lbs
