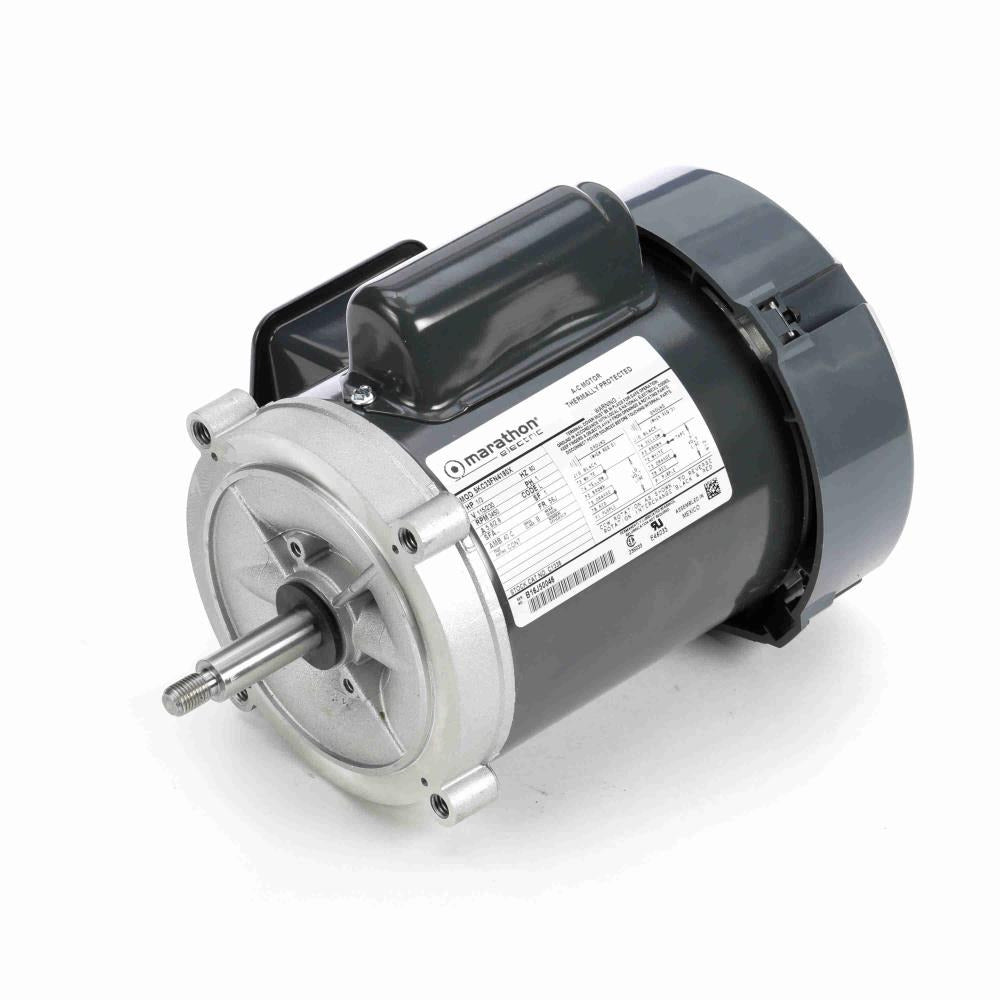

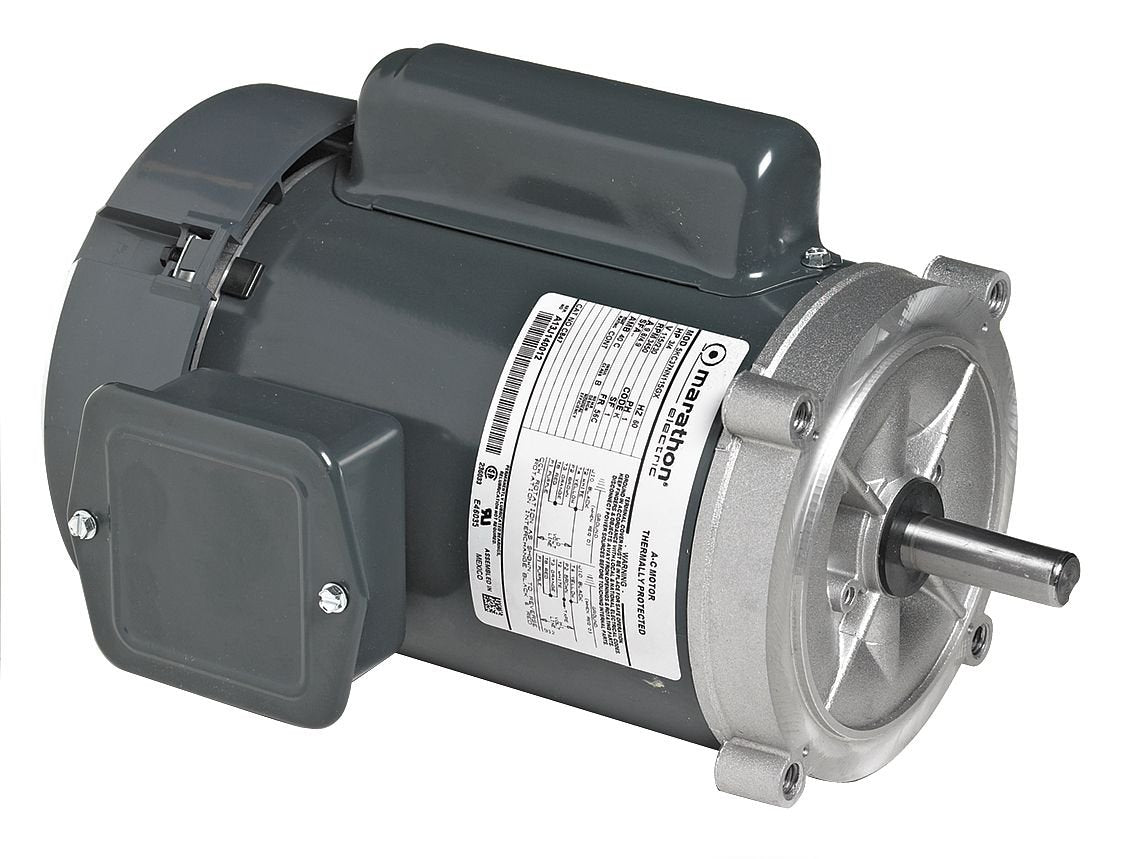

Marathon MC1336 Jet Pump Motor 1/3 hp 3600 RPM 115/230 VAC 1 Phase

Product Description

The Marathon MC1336 Jet Pump Motor is built for robust performance and reliability. This 1/3 hp motor runs at 3600 RPM and operates on 115/230 VAC. It features a totally enclosed fan-cooled (TEFC) construction that protects the motor from dust and water. Ideal for applications requiring a C-Face mounting, this motor is designed to start with a capacitor for efficient energy use.

• 1/3 hp output power
• 3600 RPM speed
• 115/230 VAC operation

Product Highlights

The Marathon MC1336 Jet Pump Motor offers reliable performance with its capacitor start and TEFC construction, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Marathon
• MPN: MC1336
• Type: Jet Pump Motor
• Electrical Type: Cap Start
• Frame: 56J
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Material: Rolled Steel
• Mounting: C-Face, Footless
• Amperage: 5.6,2.8
• Shaft Type: Single

Technical Specifications

• HP: 1/3
• RPM: 3600
• Speeds: 1
• Bearing Type: Ball
• Overload Protection: Auto
• Shaft Diameter: 6.5 inches
• Body Length: 15.9 inches
