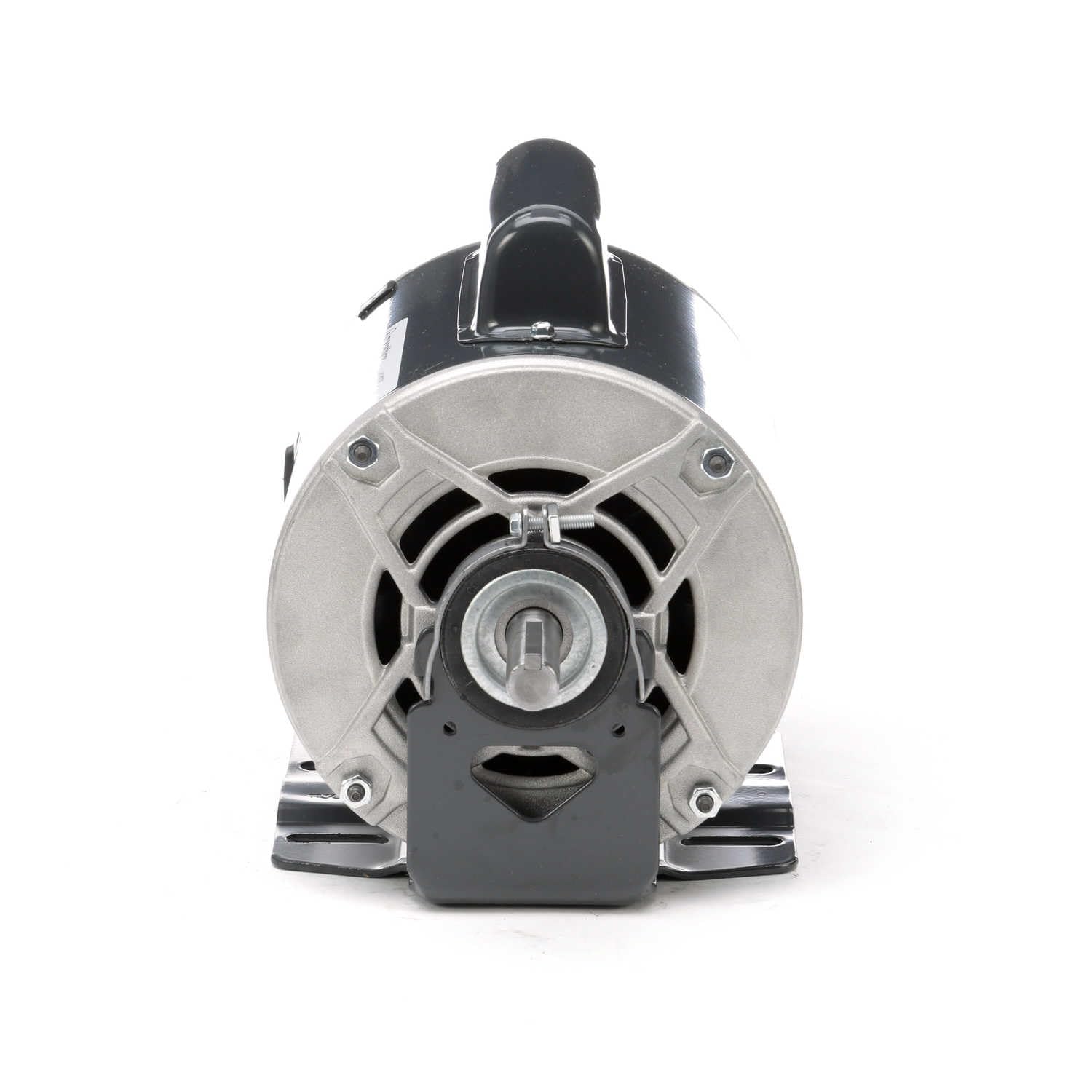

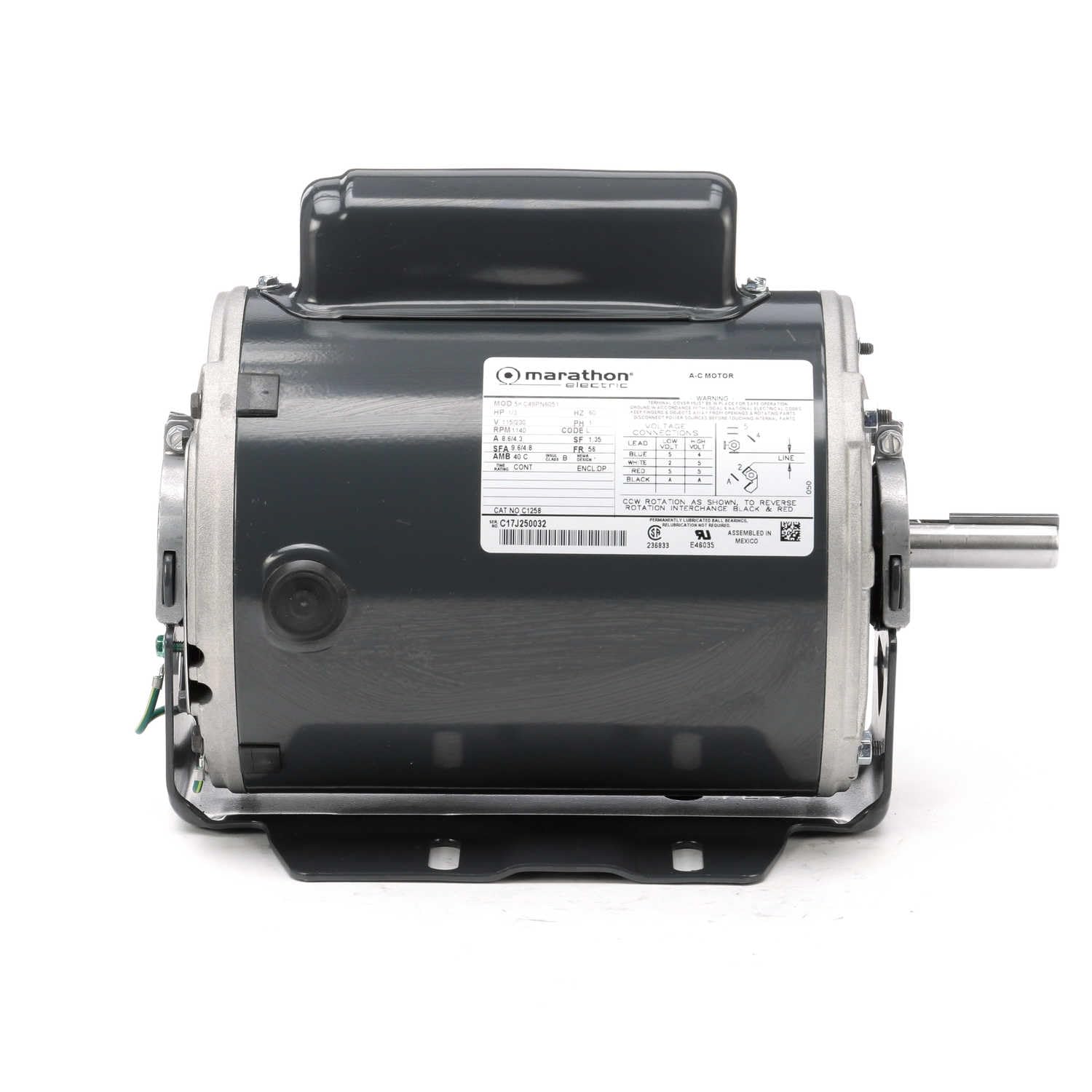

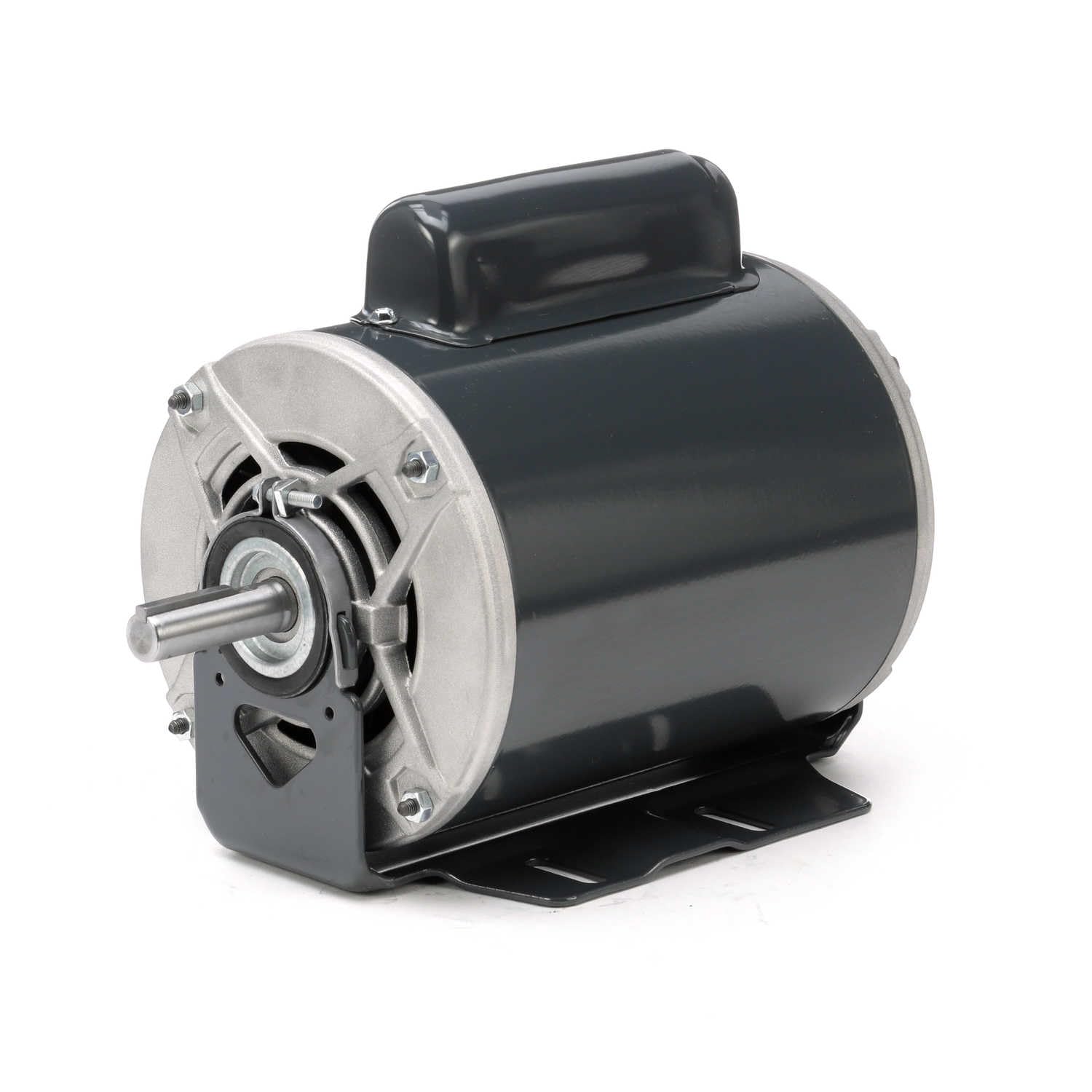

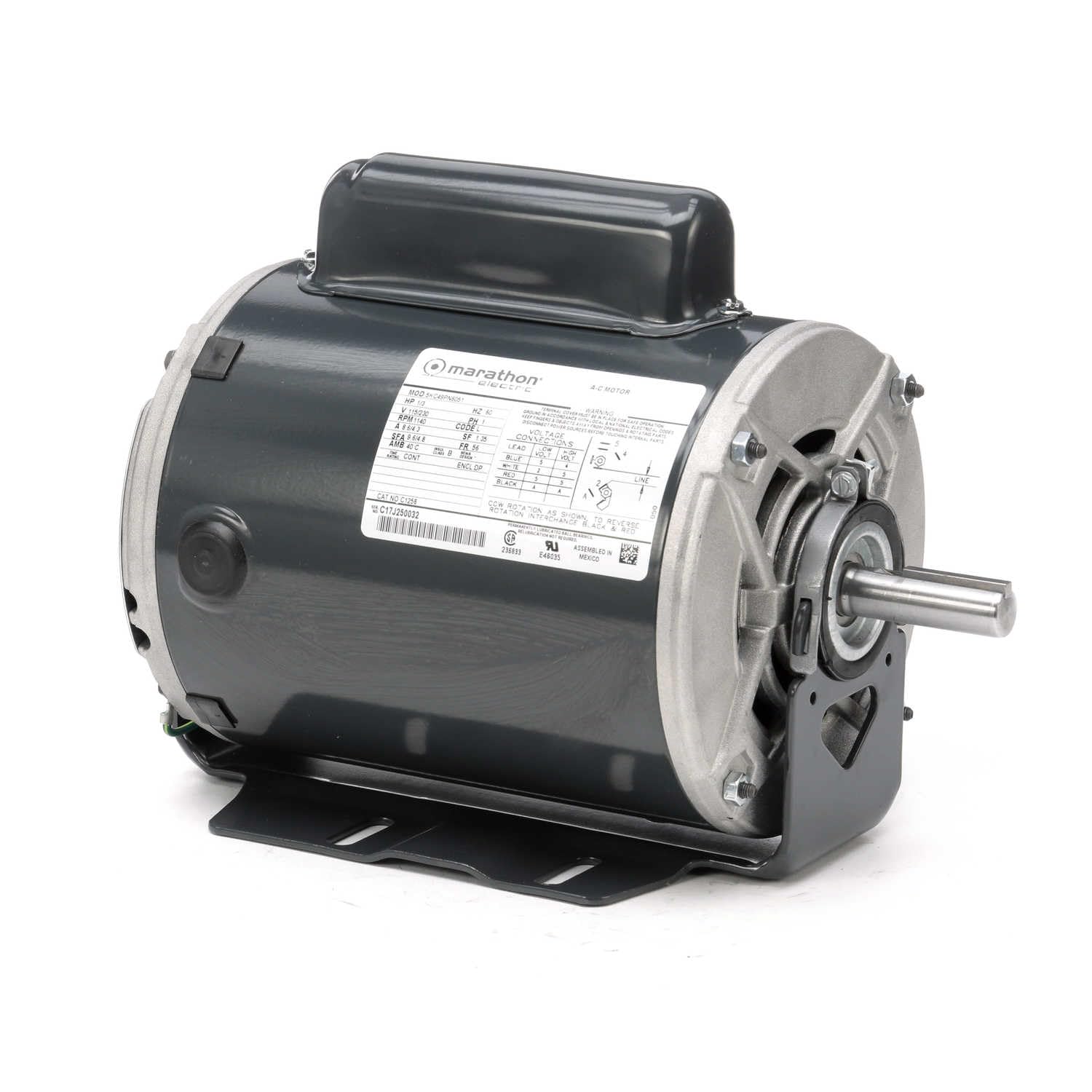

Marathon MC1258 General Purpose Motor 1/3 hp 1200 RPM 115/230 VAC Resilient Base

Product Description

The Marathon MC1258 General Purpose Motor is a versatile motor designed for multiple applications. It features a 1/3 horsepower engine with a speed of 1200 RPM, powered by a 115/230 VAC current. This single-phase motor has a resilient base and an open drip-proof enclosure. It is suitable for various automotive replacement parts, including engine cooling and climate control systems.

• 1/3 horsepower
• 1200 RPM speed
• 115/230 VAC single-phase

Product Highlights

The Marathon MC1258 motor is known for its robust performance and reliable operation. It is ideal for heating and cooling applications in automotive systems. Its rolled steel construction ensures durability, while the resilient base allows for easy mounting.

Product Information

Standard Information

• Brand: Marathon
• MPN: MC1258

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1/3
• RPM: 1140
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Single
• Voltage: 115/230
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 8.6/4.3
• Shaft Type: Single
