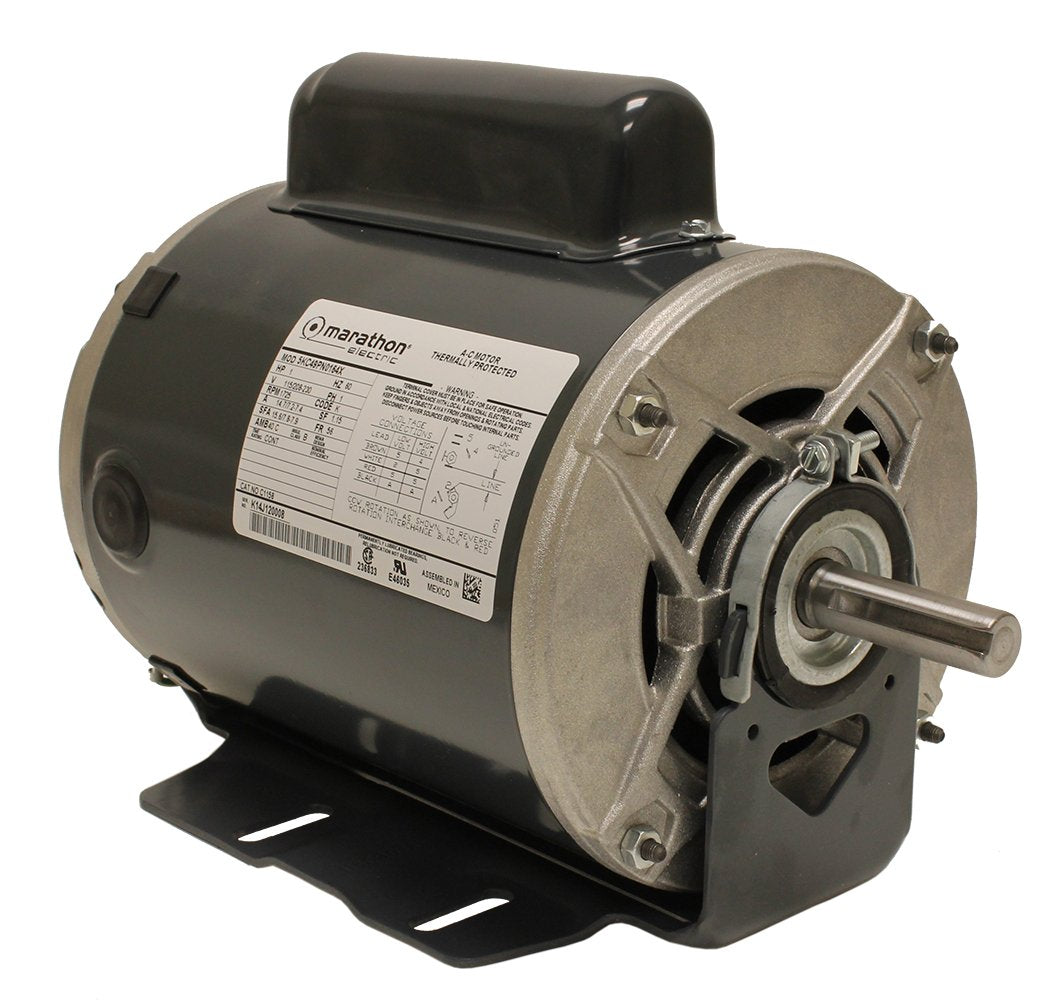

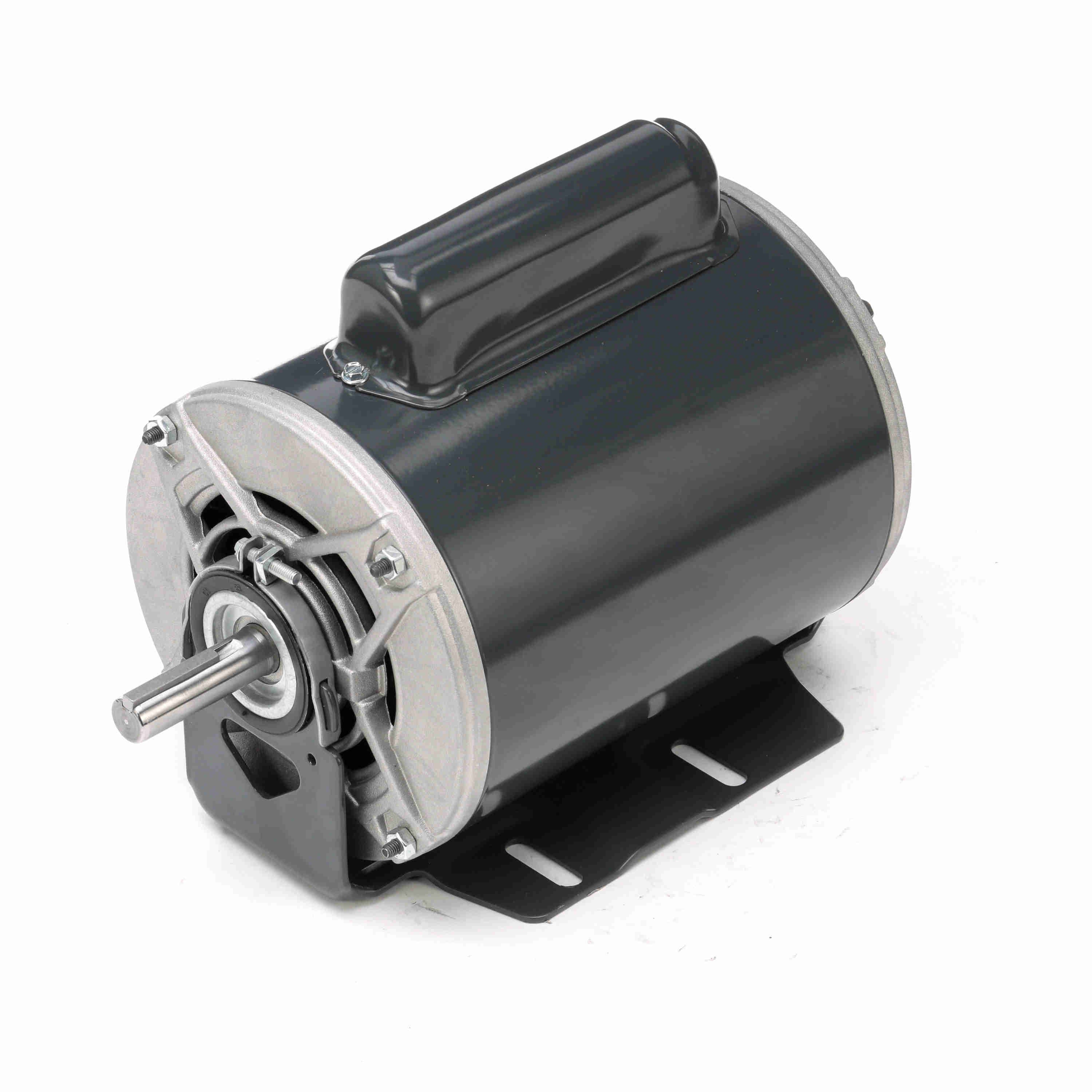

Marathon Electric MC1158 Marathon C1158 Fan and Blower Motor, Single/Split Phase, 1 hp, 1725 RPM, 115/208-230V

Product Description

The Marathon Electric MC1158 is a 1 horsepower fan and blower motor. It operates at a speed of 1725 RPM and is suitable for single and split phase applications. This motor works with voltages of 115, 208, or 230, consuming 14.7 to 7.2-7.4 amps depending on the voltage. Ideal for various HVAC systems, it offers reliability and efficiency for both commercial and residential use.

• 1 hp power rating
• Operating speed of 1725 RPM
• Voltage compatibility: 115/208-230V

Product Highlights

This motor features a resilient ring mount and an open drip-proof design, making it suitable for a range of ventilation and air movement tasks.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC1158

Technical Specifications

• Horsepower: 1 hp
• Speed: 1725 RPM
• Voltage: 115/208-230V
• Amperage: 14.7/7.2-7.4 amps
• Frame Size: 56
• Type: Single/Split Phase
• Mount Type: Resilient Base
• Enclosure Type: Open Drip Proof
