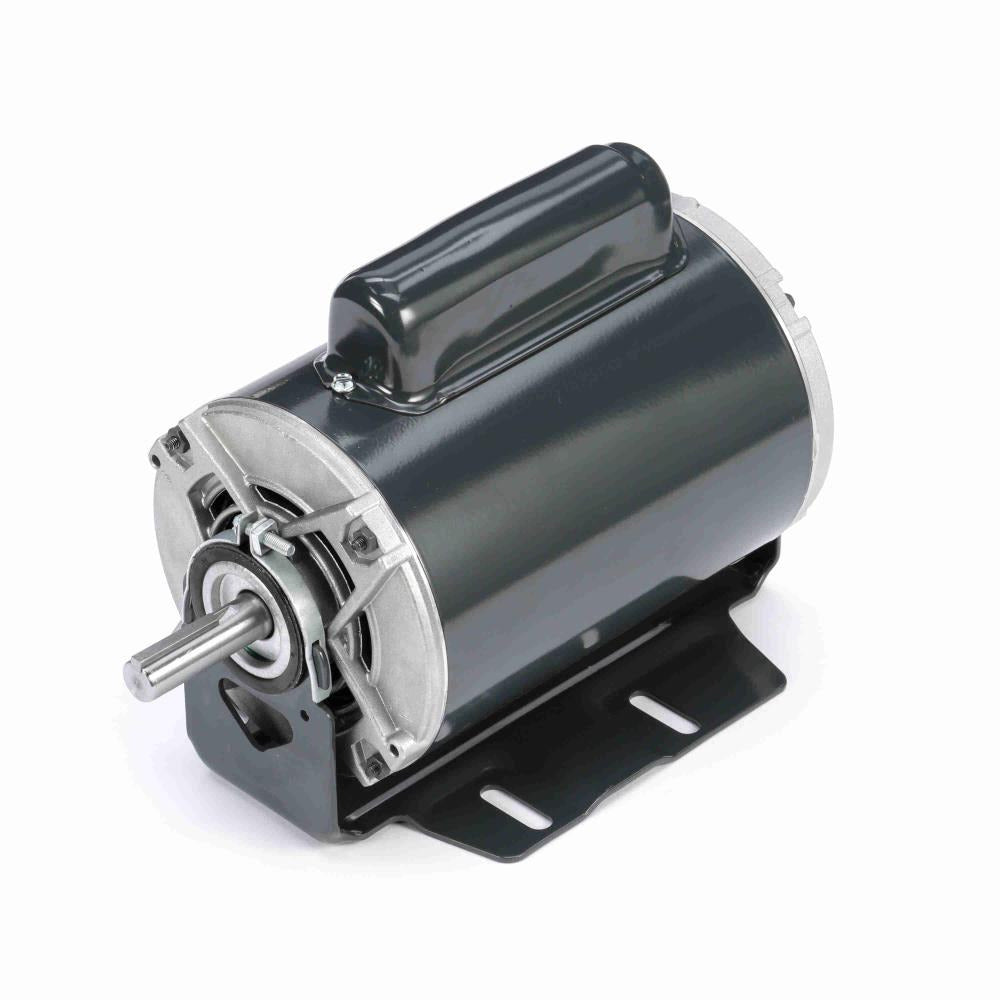

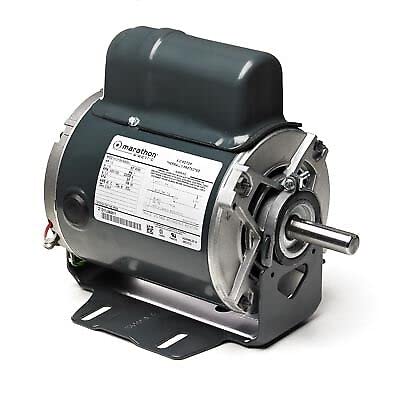

Marathon MC1155 56 Frame Open Drip Proof Belt Drive Motor 3450 RPM 0.75 hp

Product Description

The Marathon MC1155 Belt Drive Motor is a versatile motor suitable for various applications. This motor, designed by Marathon Electric, features a 56 frame open drip proof enclosure and operates at 3450 RPM. It provides 0.75 horsepower and works at 115/208-230 volts, accommodating single-phase power sources. This motor includes a resilient ring mount for secure installation.

• 56 frame size
• 0.75 horsepower
• 3450 RPM

Product Highlights

The Marathon MC1155 is designed for efficiency and durability, making it ideal for belt drive systems. The motor's robust construction ensures reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC1155

Technical Specifications

• Voltage: 115/208-230 VAC
• Horsepower: 0.75 hp
• Speed: 3450 RPM
• Frame Size: 56
• Enclosure: Open Drip Proof
• Mounting Type: Resilient Base
• Material: Rolled Steel
• Phase: Single
• Rotation: REV
• Overload Protection: Auto
• Diameter: 6.5 inches
• Amperage: 10.0, 4.9-5.0 A
• Shaft Type: Single
