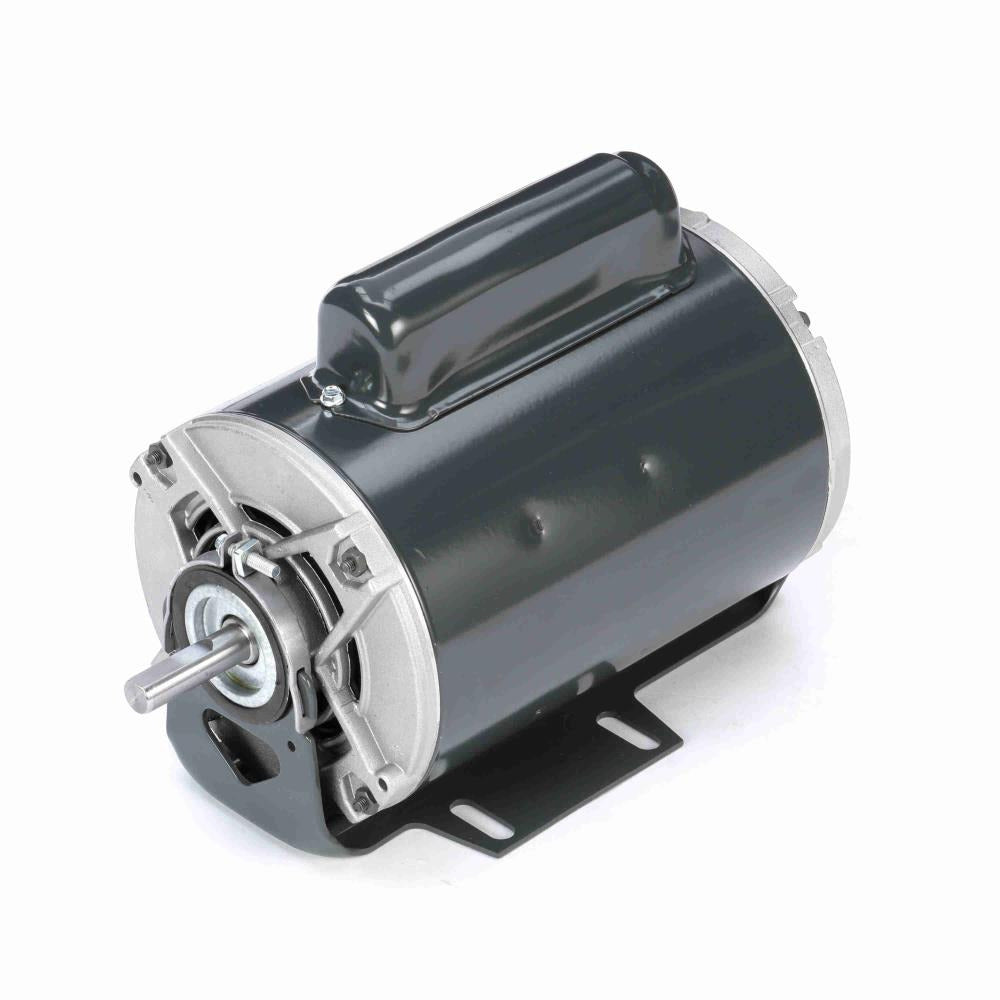

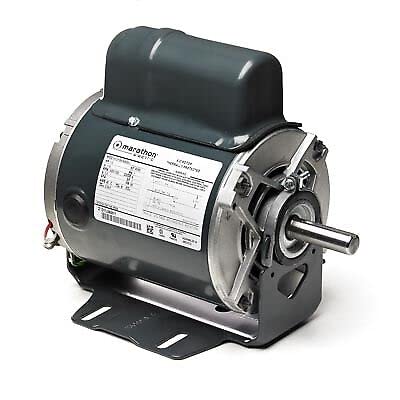

Marathon MC1152 C1152 General Purpose Motor 1 Split Phase Resilient Base Ball Bearing 0.5 HP 3450 RPM Open Drip Proof Enclosure 115/208-230 VAC

Product Description

The Marathon MC1152 general purpose motor is designed by Marathon Electric for versatile applications. This single split-phase motor operates at 0.5 HP with a maximum speed of 3450 RPM and is suitable for various industrial uses.

• Single split-phase motor with one-speed operation
• Operates at 0.5 HP with a maximum speed of 3450 RPM
• 48 frame with open drip-proof (ODP) enclosure and resilient base mounting

Product Highlights

This general purpose motor by Marathon is ideal for diverse electrical applications. It features a robust open drip-proof enclosure, resilient base mounting, and a ball bearing system. The motor operates on 115/208-230 VAC, ensuring reliable performance in various settings.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MC1152
• Model: C1152
• Category: Permanent Magnet Motors

Technical Specifications

• Electrical Type: Cap Start
• HP: 0.5
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 8.2, 3.9-4.1
• Shaft Type: Single
