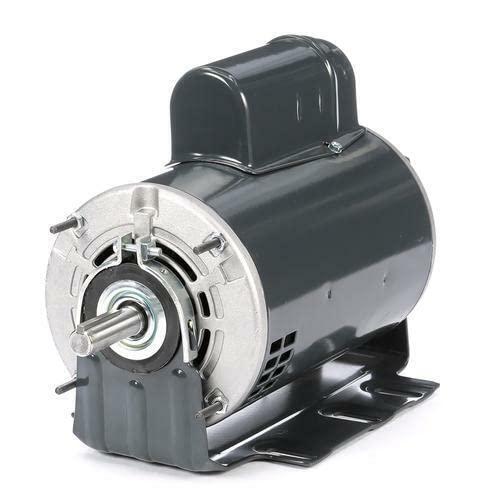

Marathon MB608 56 Frame Open Drip Proof Motor 1/2 hp 1725 RPM 277 VAC 56C17D2113

Product Description

The Marathon MB608 56 Frame Open Drip Proof Motor is designed for reliable performance in various applications. This motor features a single split phase with one-speed operation, delivering up to 1/2 horsepower at a maximum speed of 1725 RPM. It operates at 277 volts AC and 3.6 amps, making it suitable for many industrial uses. The motor's 56 frame includes a resilient ring mount and ball bearing system for smooth operation and longevity.

• Single split phase with one-speed operation
• Delivers 1/2 horsepower at 1725 RPM
• 56 frame with open drip proof enclosure

Product Highlights

This Marathon motor is ideal for belt drive applications. It features a resilient ring mount and robust ball bearings for durability. The open drip-proof design ensures efficient cooling and prevents contaminants from entering the motor, making it suitable for various industrial environments.

Product Information

Standard Information

• Brand: Marathon
• MPN: MB608
• Model: 56C17D2113

Technical Specifications

• Horsepower: 0.5 hp
• Speed: 1725 RPM
• Voltage: 277 VAC
• Current: 3.6 amps
• Frame: 56
• Mounting: Resilient / Extended Studs
• Bearing Type: Ball Bearing
• Enclosure: Open Drip Proof (ODP)
