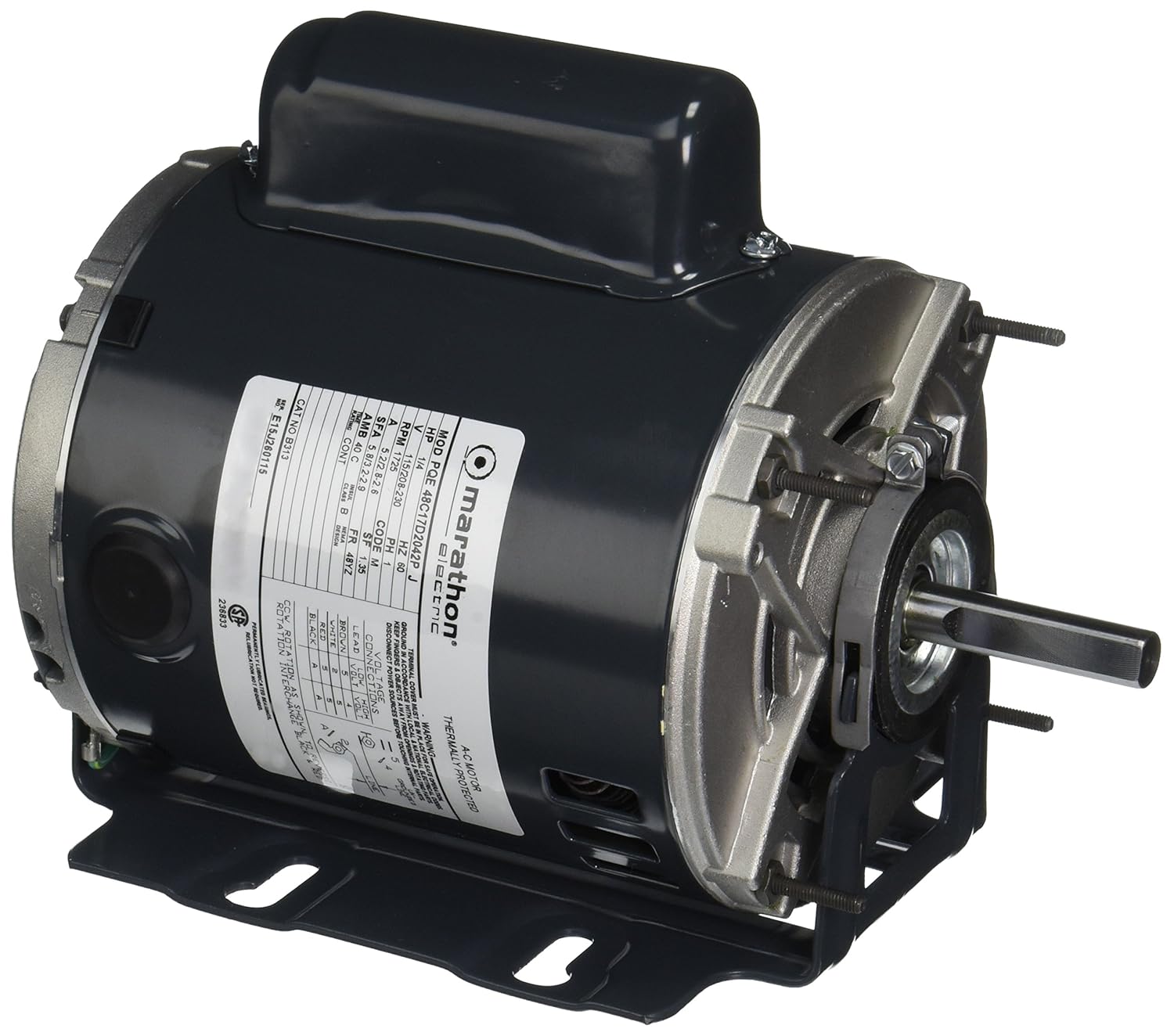

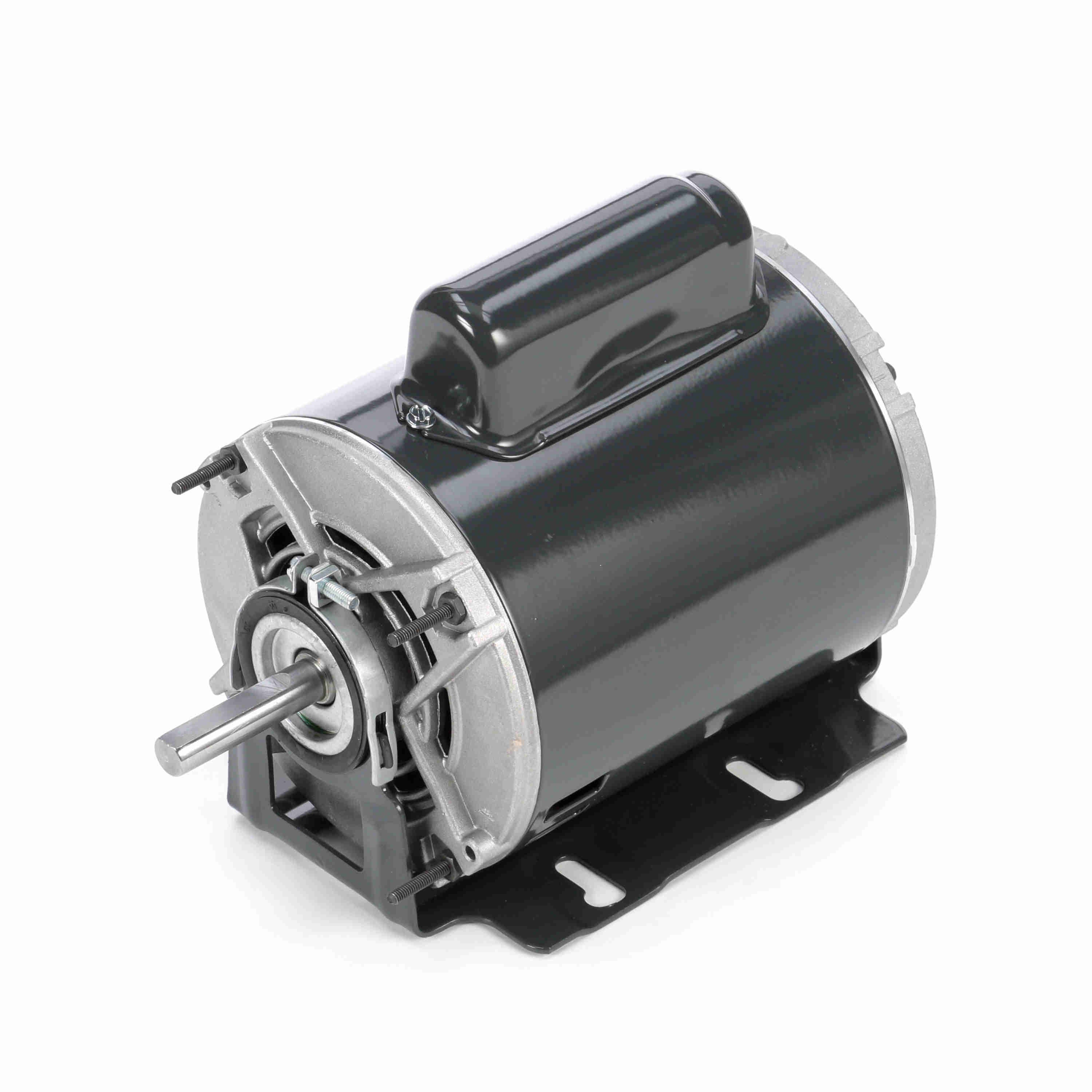

Marathon MB313 48YZ Frame 48C17D2042 Belt Drive Motor 1/4 hp 1725 RPM 115/208-230 VAC

Product Description

The Marathon MB313 Belt Drive Motor is designed for single split-phase operation. This motor runs at 1/4 hp, offering a maximum speed of 1725 RPM. It operates efficiently at 115/208-230 volts AC. The motor is built with a 48YZ frame and features an open drip-proof (ODP) enclosure for safety. The resilient ring mount and ball bearing system ensure durability and smooth functioning.

• Single split-phase operation
• 1/4 hp with 1725 RPM
• Operates at 115/208-230 volts AC

Product Highlights

This motor is ideal for belt drive applications in various electrical and HVAC settings. Its robust construction ensures reliable performance.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MB313
• Category: Permanent Magnet Motors
• Application: Electrical, HVAC

Technical Specifications

• Horsepower: 0.25 hp
• Speed: 1725 RPM
• Voltage: 115/208-230 VAC
• Frame: 48YZ
• Enclosure: Open Drip Proof (ODP)
• Mount: Resilient Ring
• Bearings: Ball Bearing
• Amperage: 5.2/2.8-2.6 Amps
• Weight: 16 pounds
