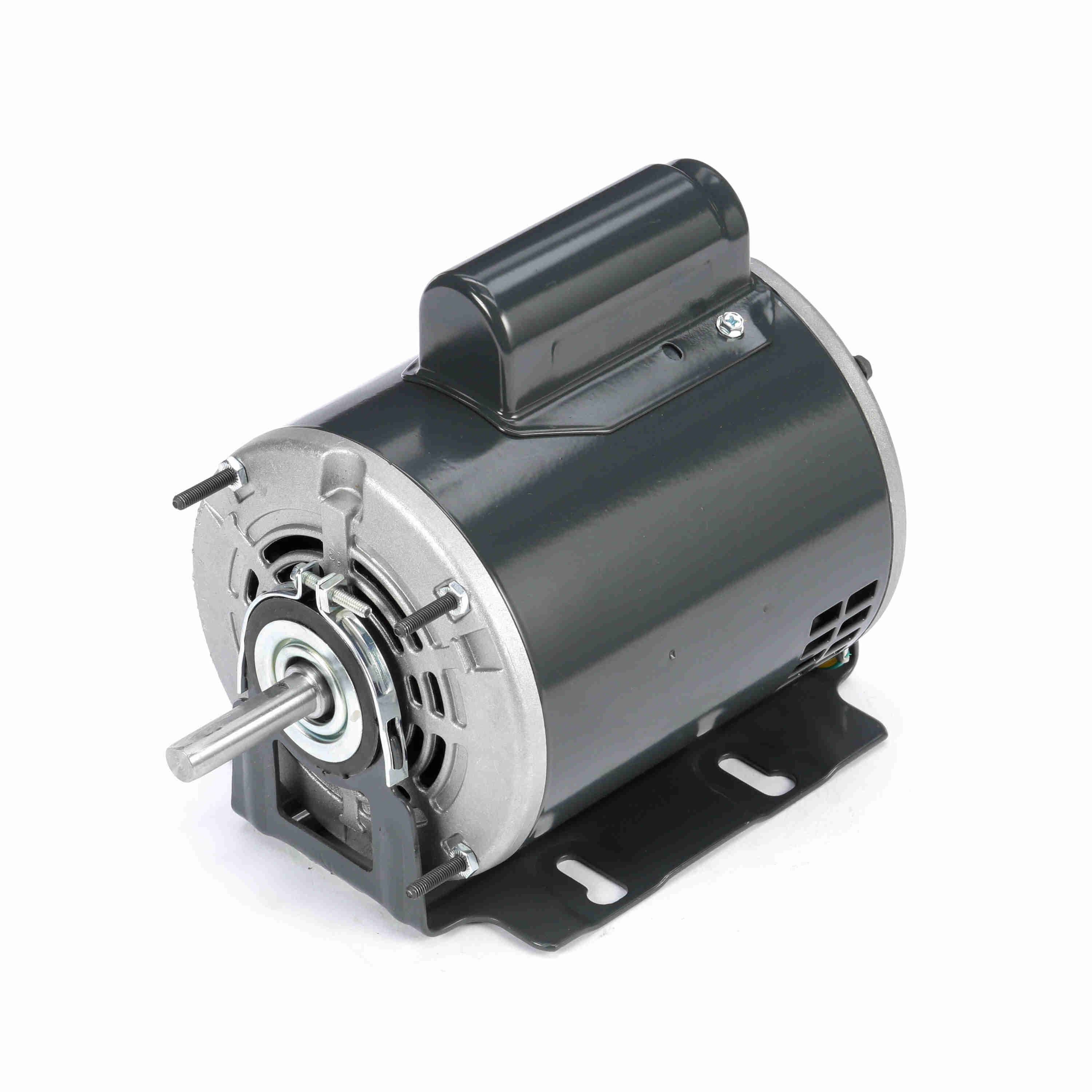

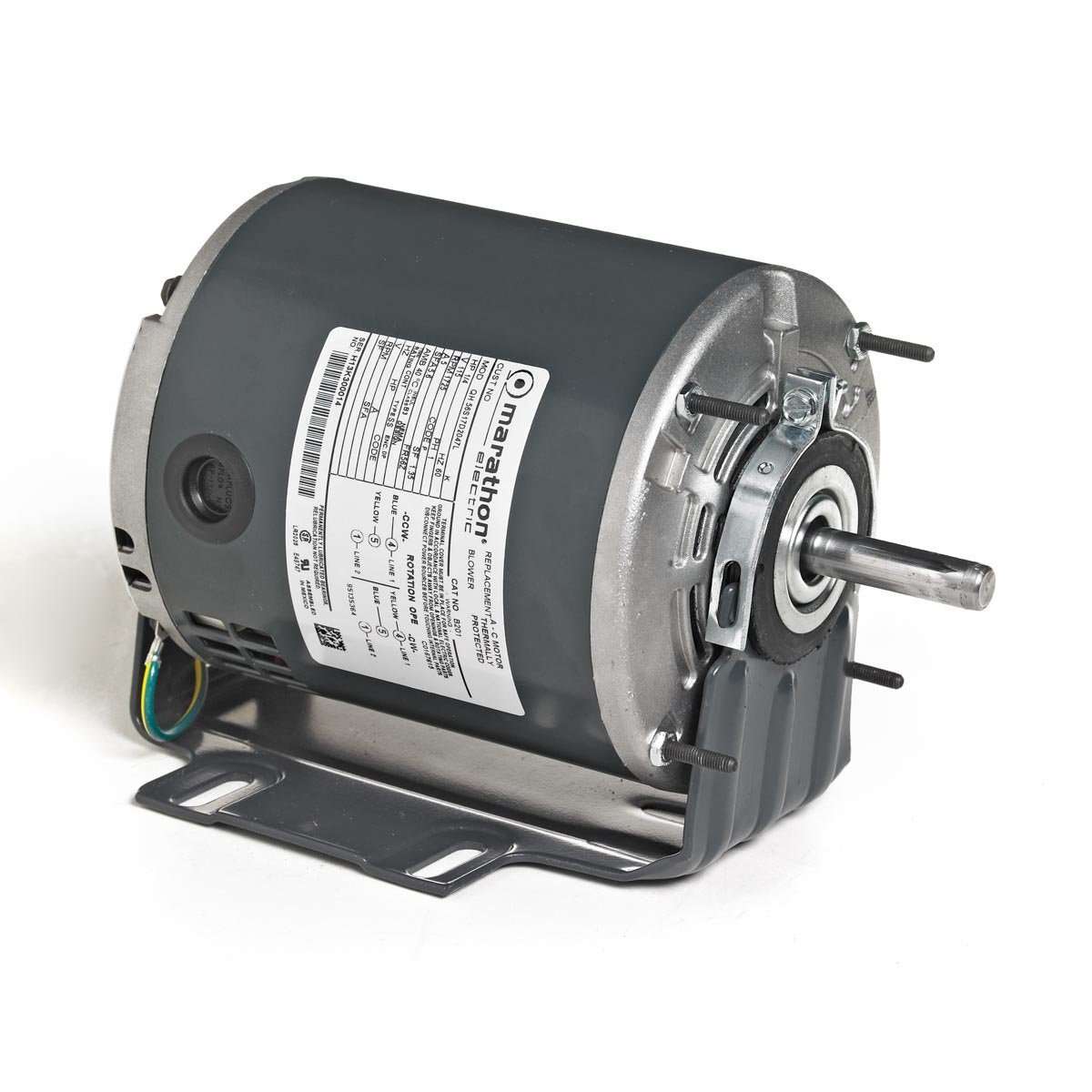

Marathon Electric MB312 Belt Drive Motor 1/4 hp 1725 RPM 115/208-230 VAC

Product Description

The Marathon Electric MB312 is a belt drive motor designed for various applications. This motor operates at one-quarter horsepower and achieves a maximum speed of seventeen hundred twenty-five revolutions per minute. It functions on a voltage range of one hundred fifteen to two hundred thirty volts AC. The MB312 features a single split phase with one-speed operation, making it suitable for consistent performance in fan applications.

• Belt drive motor with single split phase and one-speed operation
• Outputs one-quarter horsepower at a maximum speed of seventeen hundred twenty-five RPM
• Features a durable open drip proof (ODP) enclosure with resilient ring mounting

Product Highlights

This motor is ideal for HVAC systems, cooling, and ventilation tasks.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MB312

Technical Specifications

• Horsepower: 0.25 hp
• Speed: 1725 RPM
• Voltage: 115/208-230 VAC
• Frame Size: 48YZ
• Design: Open Drip Proof (ODP)
• Amperage: 6.2/2.8-3.1 A
• Weight: 15 lbs
• Mounting: Resilient Ring
