Marathon MB306 48YZ Frame 48S17D2058 Open Drip Proof Belt Drive Motor 1/2 hp 1725 RPM 115 VAC

Product Description

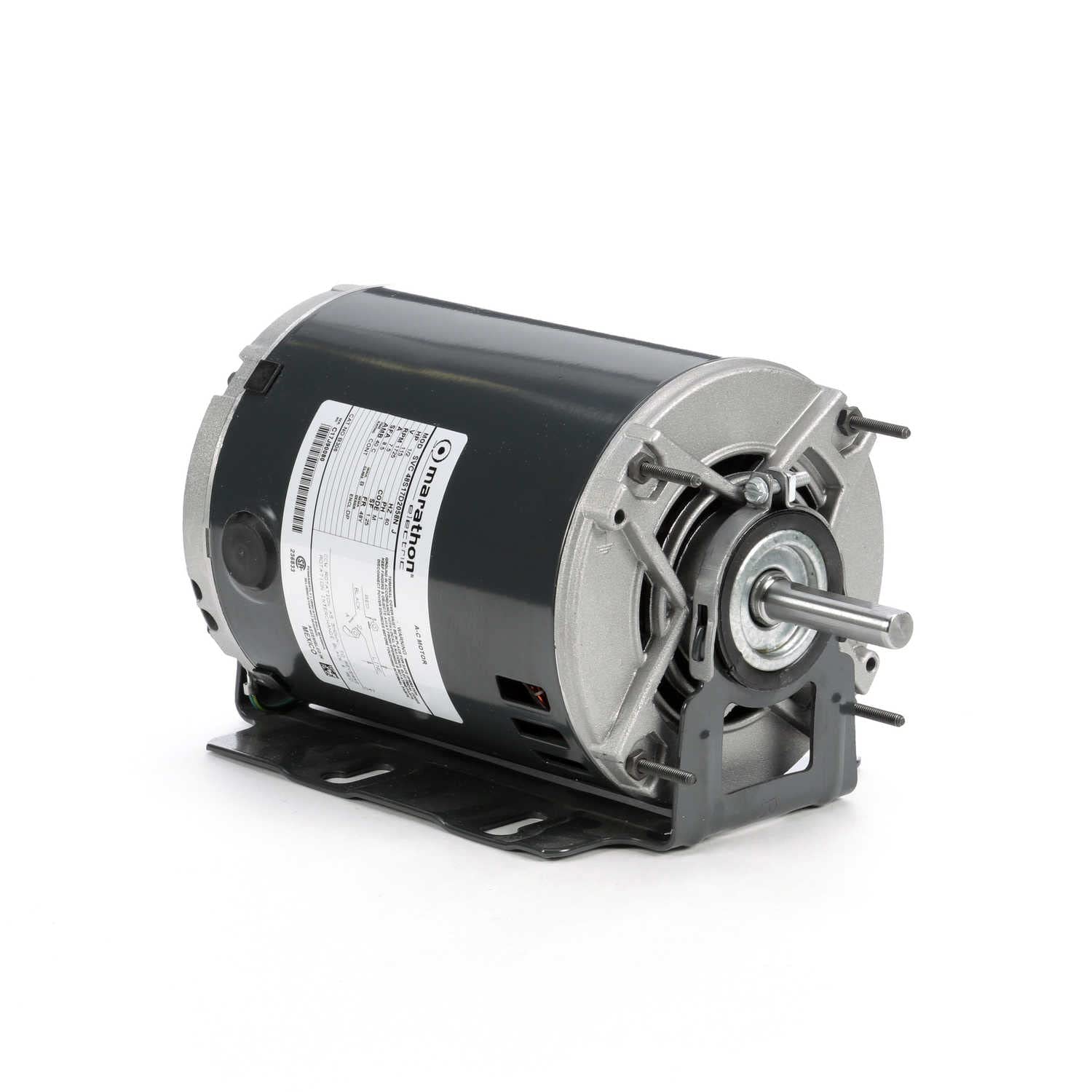

The Marathon MB306 belt drive motor operates with a single split phase and one-speed operation. It offers 1/2 hp, with a maximum speed of 1725 RPM. This motor operates at 115 volts AC and draws 7.5 amps. Its design includes a 48YZ frame with an open drip-proof enclosure, resilient ring mounting, and a ball bearing system. This motor is ideal for HVAC and blower systems.

• Single split phase motor with one-speed operation
• Runs at 1/2 hp, 1725 RPM
• Open drip-proof enclosure

Product Highlights

The Marathon MB306 is a reliable motor for belt drive applications. Its resilient mounting and ball bearing system ensure smooth operation. Ideal for HVAC systems, this motor provides consistent performance with easy installation.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MB306

Technical Specifications

• Horsepower: 1/2 hp
• Speed: 1725 RPM
• Voltage: 115 VAC
• Amperage: 7.5 A
• Frame: 48YZ
• Enclosure: Open Drip Proof (ODP)
• Mounting: Resilient Ring
• Bearing System: Ball Bearing
• Weight: 18 pounds
