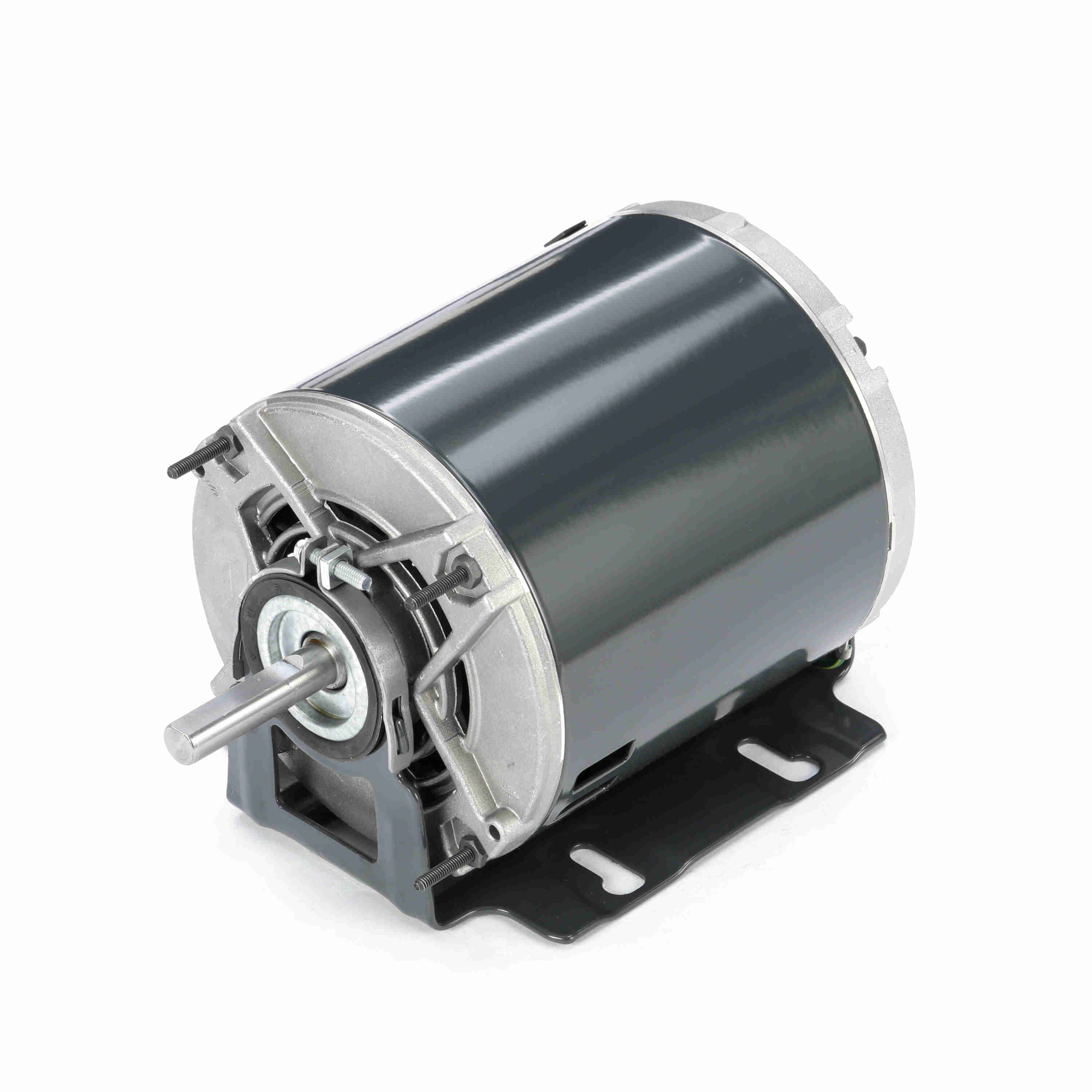

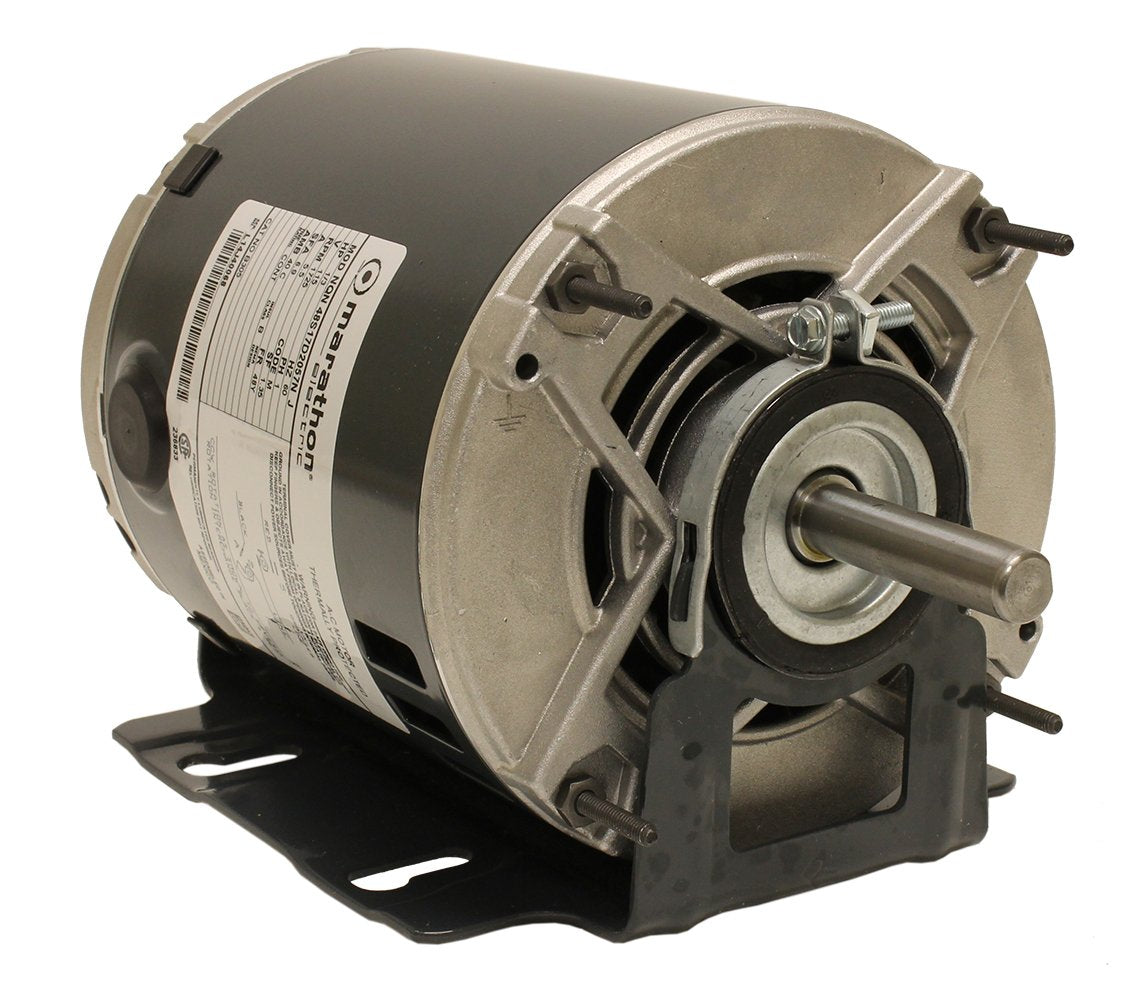

Marathon MB305 Belt Drive Motor 1/3 hp 1725 RPM 115 VAC

Product Description

The Marathon MB305 Belt Drive Motor is designed for HVAC applications, providing reliable and efficient performance. This motor features a 1/3 horsepower rating, operates at 1725 RPM, and is compatible with 115 VAC power. Its open drip-proof (ODP) enclosure and resilient ring mount ensure durability and ease of installation.

• 1/3 horsepower rating
• 1725 RPM speed
• 115 volts AC power

Product Highlights

This motor is ideal for belt drive fan and blower applications. It offers reliable performance with key features including single phase operation, ball bearings, and a resilient mounting system.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MB305

Technical Specifications

• Electrical Type: Split Phase
• HP: 1/3
• RPM: 1725
• Frame: 48YZ
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115 volts
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient (Extended Studs)
• Amperage: 5.5
• Shaft Type: Single
