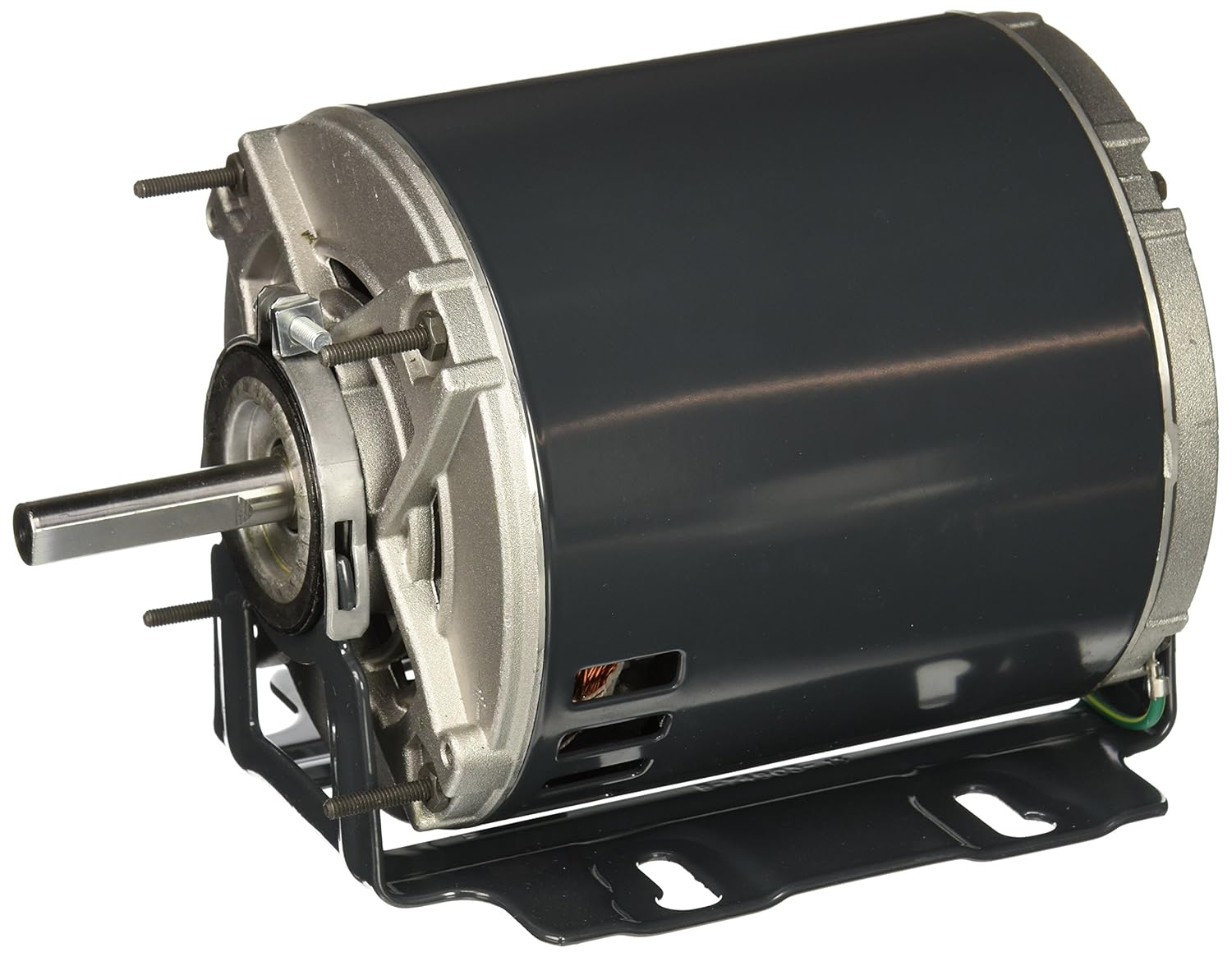

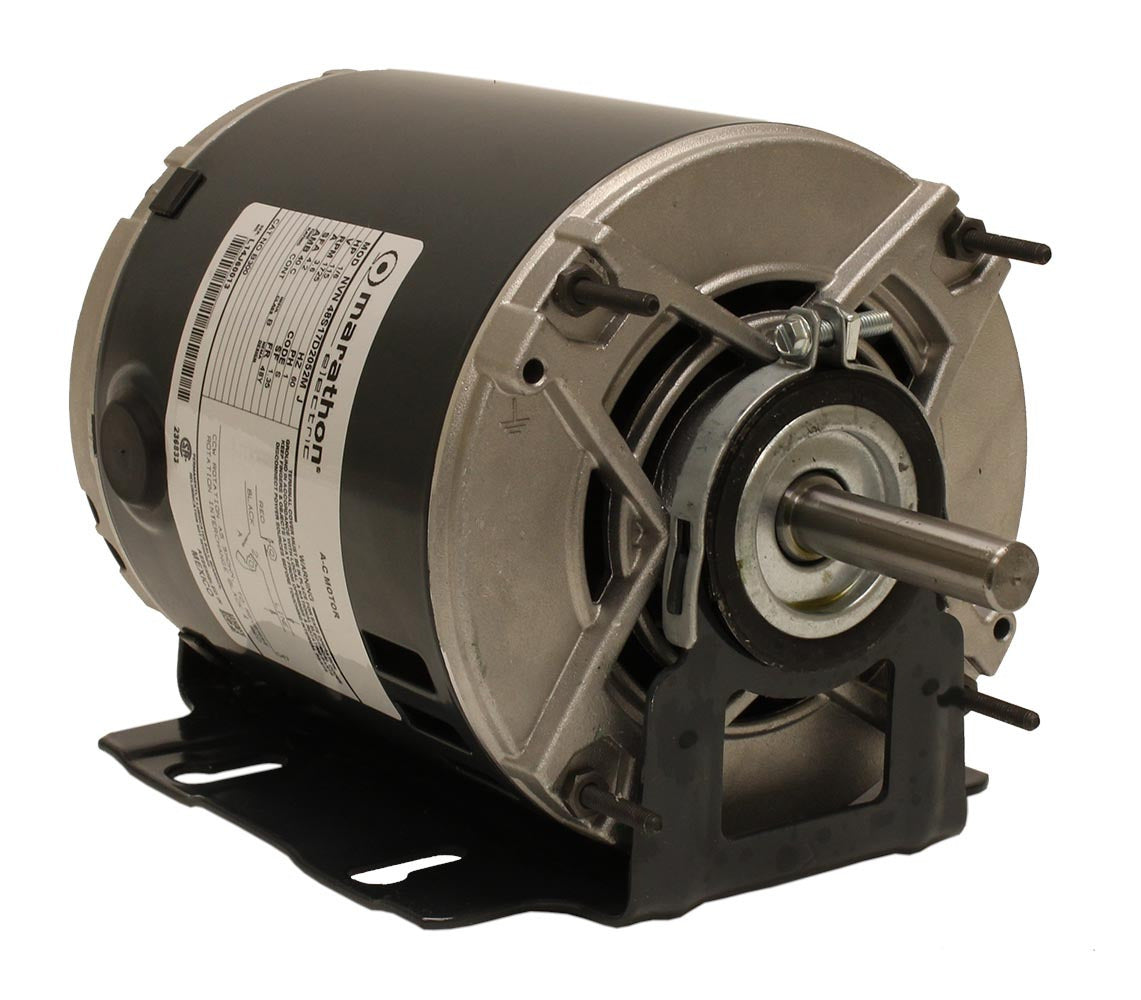

Marathon MB300 Belt Drive Fan and Blower Motor, 1/6 hp, 1725 RPM, 115V

Product Description

The Marathon B300 Belt Drive Blower Motor with MPN MB300 is designed for effective ventilation and air movement in various applications. This motor operates at one-sixth horsepower and achieves a speed of one thousand seven hundred twenty-five RPM. It is a single-phase motor that runs on one hundred fifteen volts and draws three point six amps.

• Efficient for HVAC systems and air handling.
• Lightweight design at fourteen pounds for easy installation.
• Rolled steel construction for durability.

Product Highlights

This motor is suitable for both residential and commercial environments, ensuring compatibility with multiple fan and blower systems.

Product Information

Standard Information

• Brand: Marathon Electric
• Model Number: MB300

Technical Specifications

• Electrical Type: Split Phase
• HP: 1/6
• RPM: 1725
• Frame Size: 48Y
• Voltage: 115
• Amperage: 3.6
• Mounting Type: Resilient (Extended Studs)
• Material: Rolled Steel
