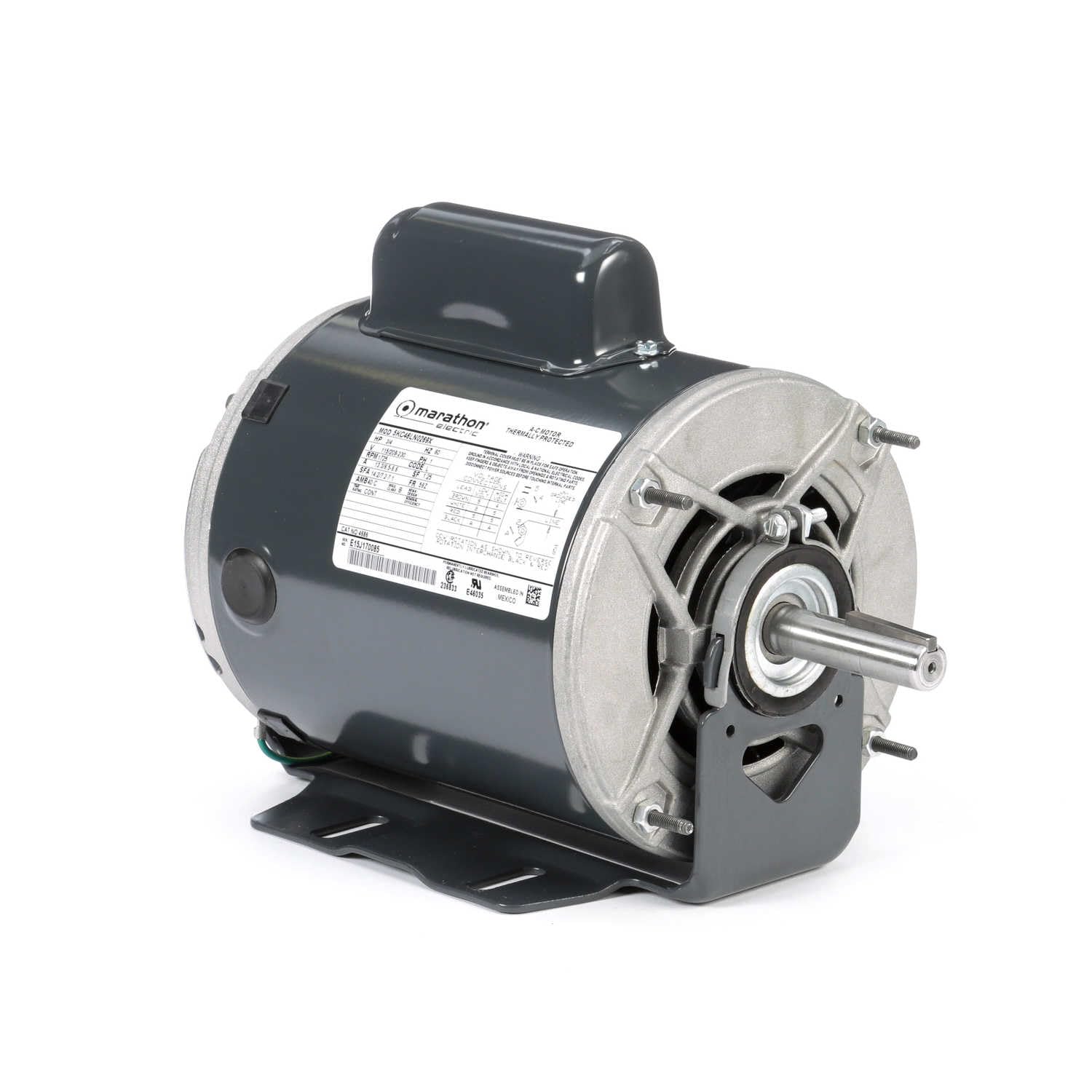

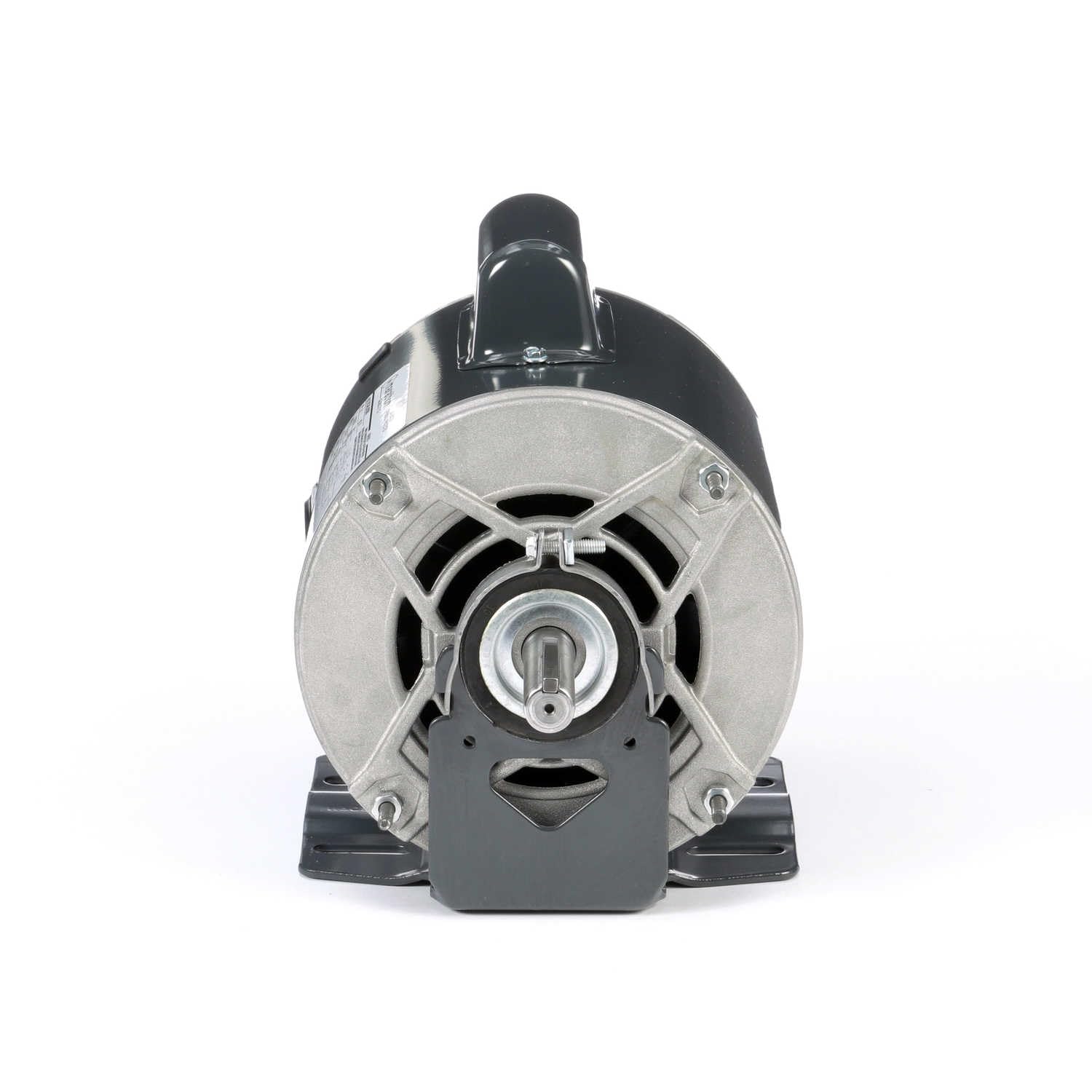

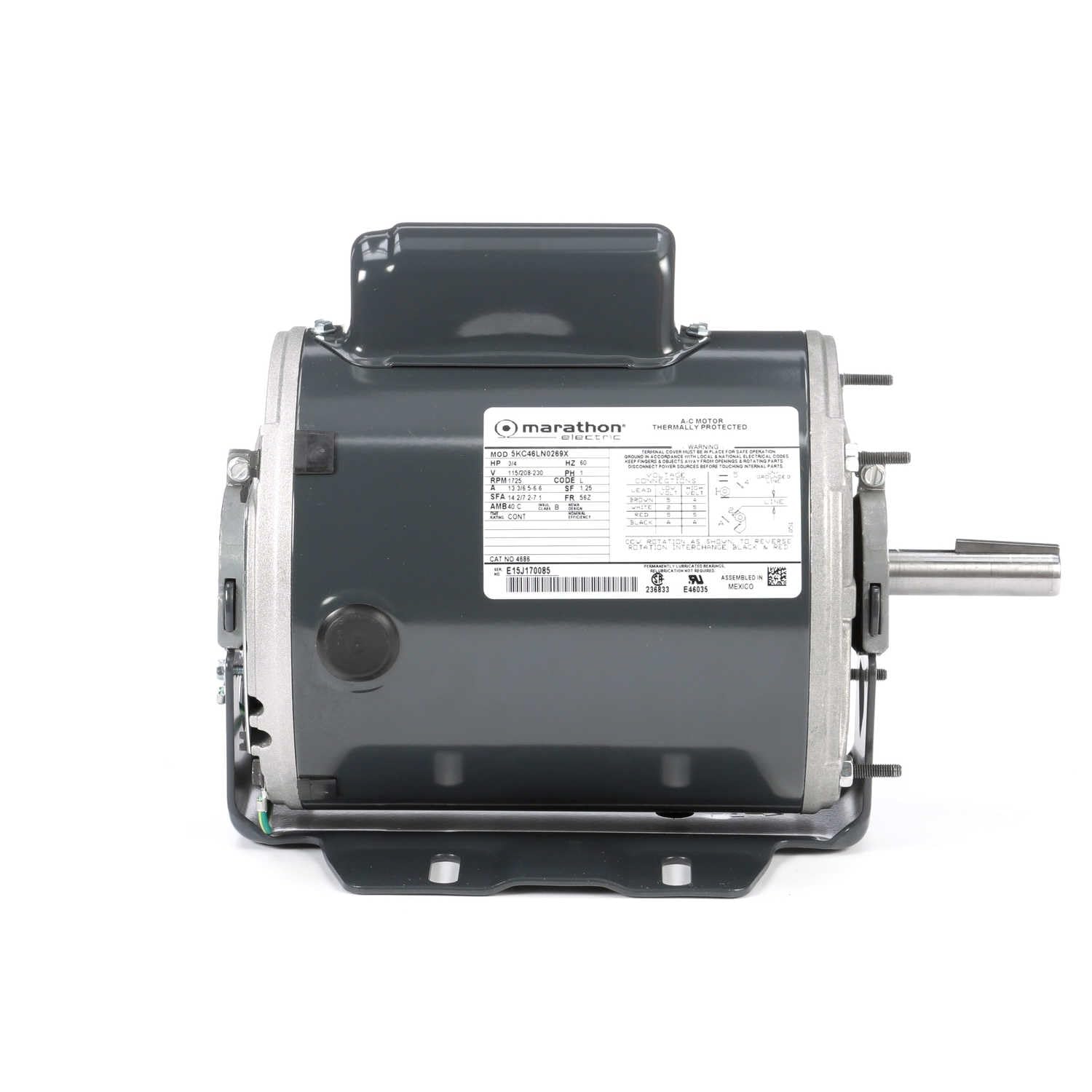

Marathon Electric M4686 56Z Frame Open Drip Proof 5KC46LN0269X Belt Drive Motor 3/4 hp 1725 RPM 115/208-230 VAC

Product Description

The Marathon Electric M4686 is a belt drive motor designed for efficient performance. This motor operates at three-quarter horsepower and reaches a maximum speed of one thousand seven hundred twenty-five revolutions per minute. It is suitable for voltages of one hundred fifteen, two hundred eight, and two hundred thirty volts. Ideal for various applications in HVAC and industrial settings.

• Belt drive motor with a single split phase and one-speed operation.
• Durable 56Z frame with open drip proof enclosure.
• Features a resilient ring mounting and ball bearing system for enhanced stability.

Product Highlights

This motor emphasizes reliability and efficiency, with a resilient base and auto overload protection.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: M4686

Technical Specifications

• Horsepower: 0.75 hp
• Speed: 1725 RPM
• Voltage: 115/208-230 VAC
• Amperage: 13.3/6.5-6.6 Amp
• Frame: 56Z
• Material: Steel
• Mounting Type: Resilient Base
• Type: Electric Motor
