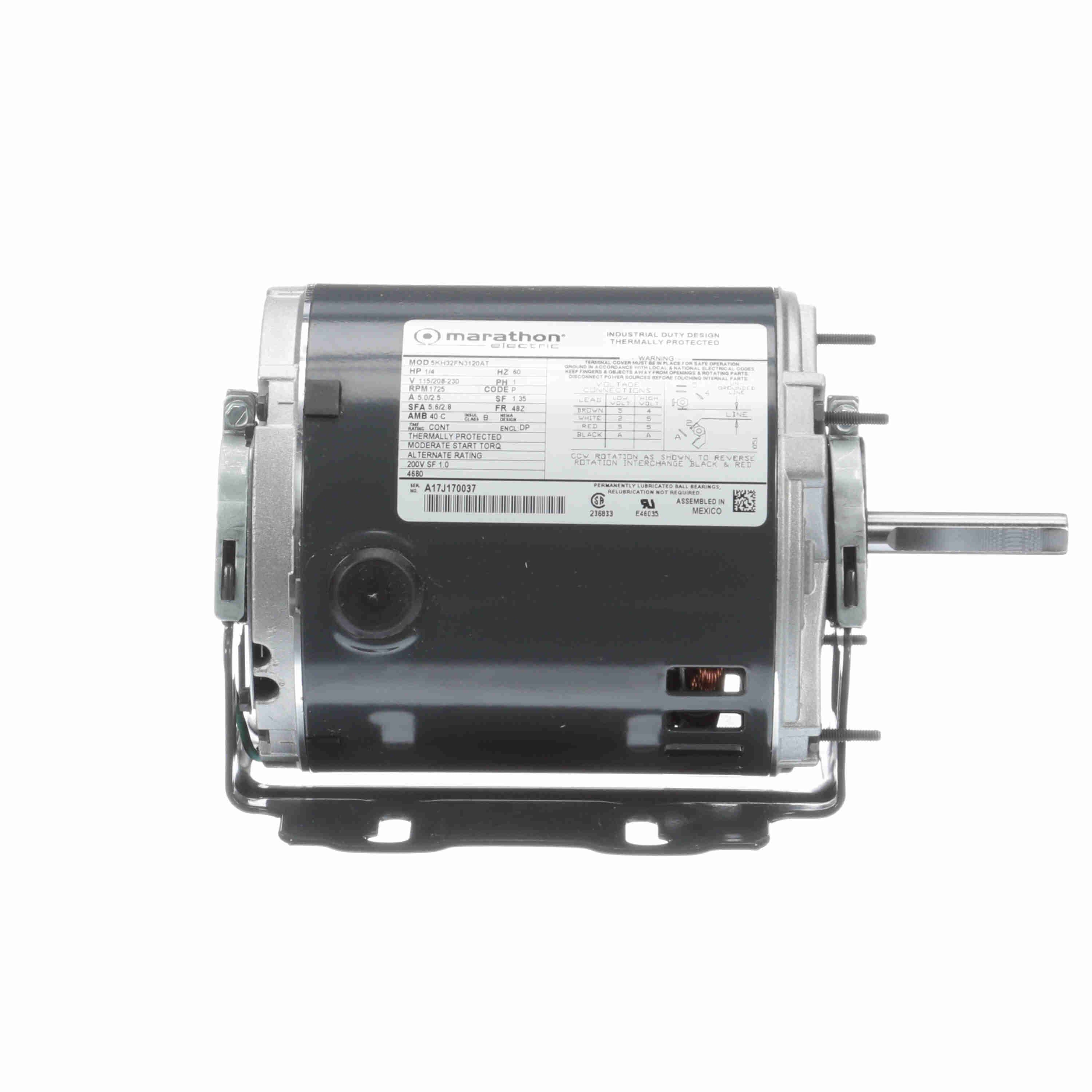

Marathon M4680 Belt Drive Motor 1/4 HP 48Z Frame 1725 RPM

Product Description

The Marathon Electric M4680 belt drive motor is designed for single split phase operation with one speed. This motor delivers 1/4 horsepower at a maximum speed of 1725 RPM and operates at 115/208-230 volts AC. It features a 48Z frame, open drip proof enclosure, resilient ring mounting, and a ball bearing system.

• Single split phase with one-speed operation
• Delivers 1/4 horsepower at a maximum speed of 1725 RPM
• 48Z frame with open drip proof enclosure, resilient ring mounting, and ball bearing system

Product Highlights

This Marathon Electric belt drive motor is suitable for various industrial applications. It has auto protection for durability and a resilient base for easy mounting.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: M4680
• Model: 5KH32FN3120T

Technical Specifications

• Horsepower: 0.25 hp
• Speed: 1725 RPM
• Voltage: 115/208-230 VAC
• Amperage: 5.0/2.5 A
• Frame: 48Z
• Enclosure: ODP
• Mounting: Resilient Base
• Material: Rolled Steel
