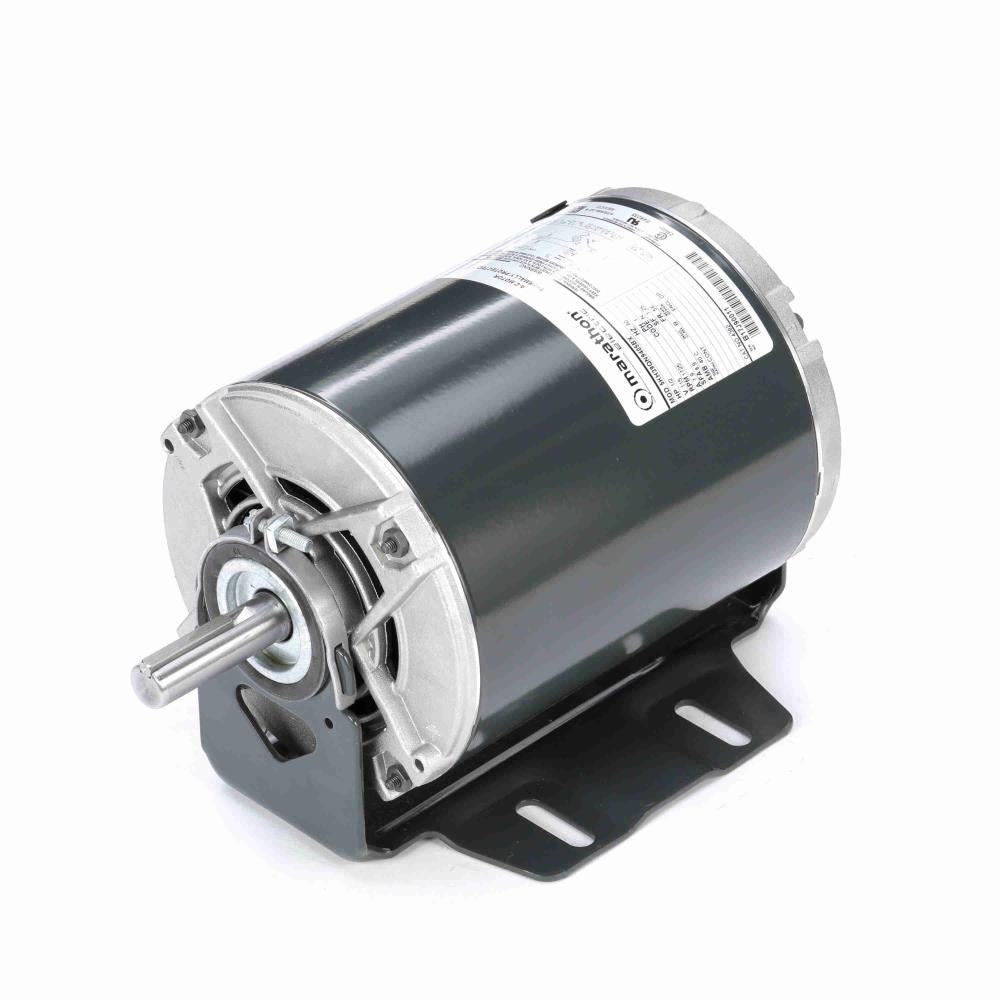

Marathon M4392 Belt Drive Fan and Blower Motor 1/2 HP 115V

Product Description

The Marathon M4392 is a belt drive fan and blower motor with a power rating of one-half horsepower and a voltage of one hundred fifteen. Designed for HVAC applications, this motor operates at one thousand seven hundred twenty-five revolutions per minute. The frame size is fifty-six, and it features a resilient base for mounting. This motor is a robust solution for efficient airflow in various systems.

• Split phase electrical type
• Equipped with a built-in automatic overload protector
• Constructed with durable rolled steel

Product Highlights

This motor is suited for applications where reliable and efficient operation is a must. It is commonly used in HVAC systems, ensuring appropriate airflow for heating and cooling.

Product Information

Standard Information

• Weight: Not specified
• Dimensions: Seventeen inches length, thirteen inches width, nine inches height

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 0.5 HP
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting Type: Resilient Base
• Amperage: 7.9
• Shaft Type: Single
