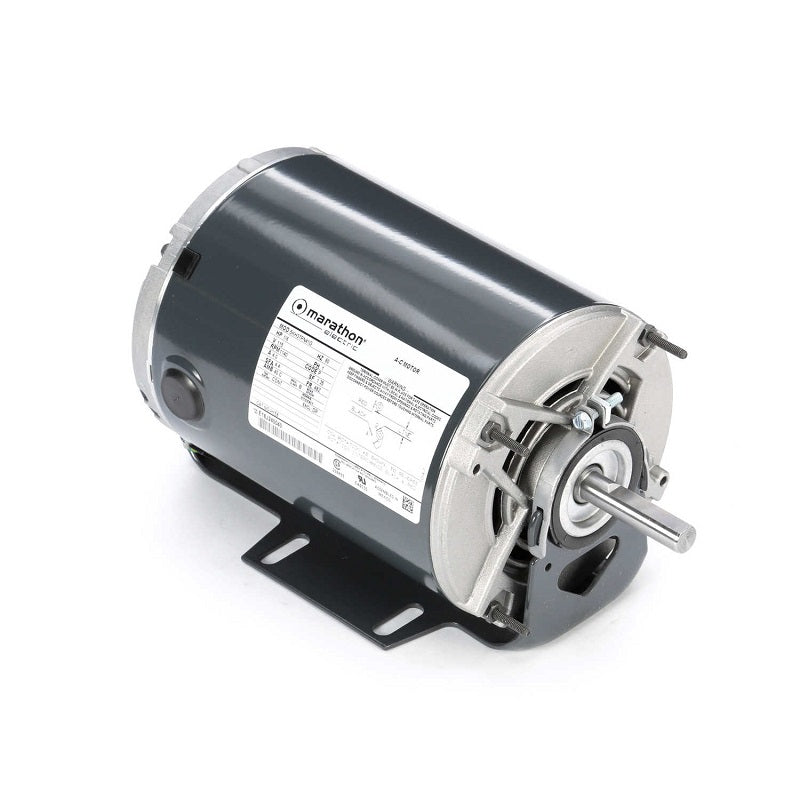

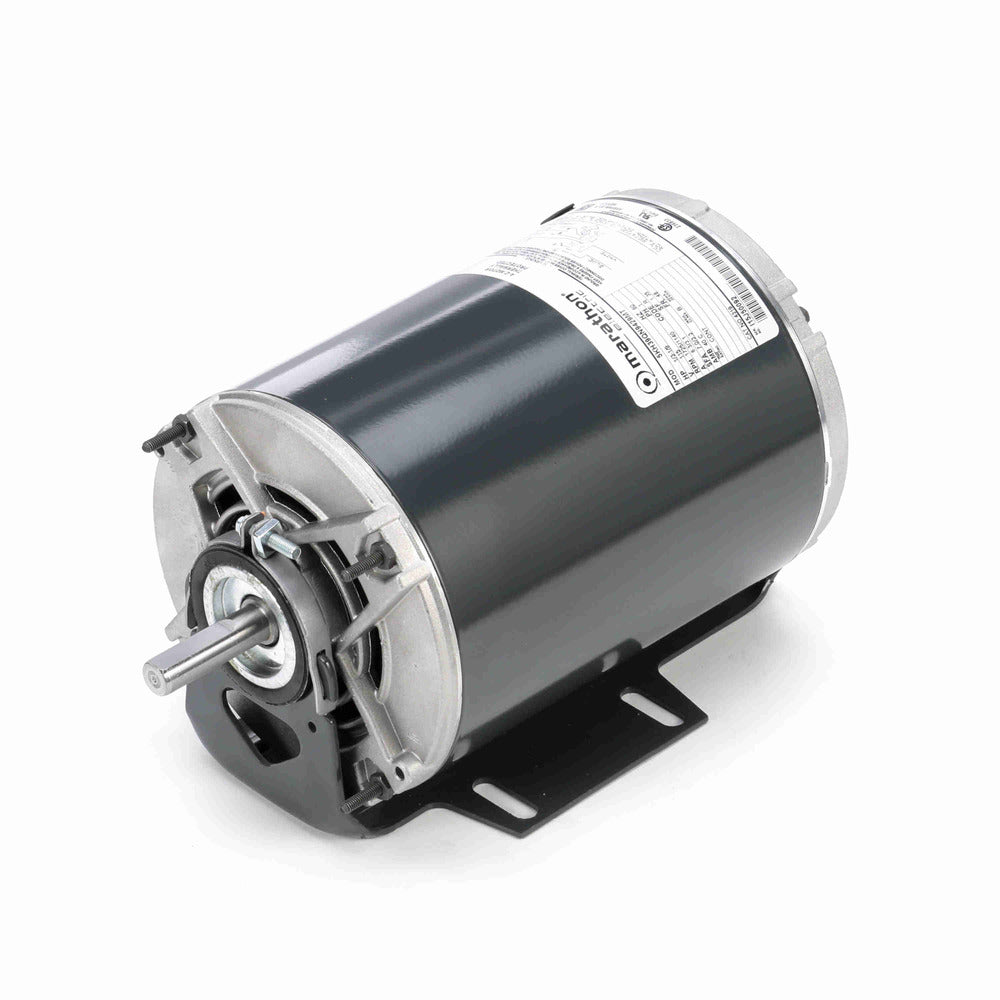

Marathon Motors M4319 Belt Drive Fan and Blower Motor

Product Description

The Marathon Motors M4319 is an efficient split phase electric motor designed specifically for belt-driven fan and blower applications. This motor operates on a single phase and is ideal for both residential and commercial environments. It features reversible rotation which provides flexibility in installation, and is equipped with a resilient base mount for stability. The motor's open construction allows for proper ventilation and includes built-in overload protection for safe operation.

• Designed for belt drive fan and blower applications.
• Features reversible rotation.
• Includes overload protection.

Product Highlights

Engineered for reliable performance, this motor is an essential component in various fan and blower systems, ensuring they operate smoothly and efficiently.

Product Information

Standard Information

• Manufacturer Part Number: M4319
• Horsepower: 1/3 HP

Technical Specifications

• Input Voltage: 115V
• RPM: 1725/1140
• Rotation: Reversible
• Phase: Split Phase
• Bearing Type: All angle sleeve or ball bearings
• Speed: Single and two-speed models
• Mounting Type: Resilient base mount
• Frequency: 60 Hertz
• Overload Protection: Overload protected
• Construction: Open construction
• Duty: Fan duty, continuous
• Ambient Temperature: 40C
• Service Factor: 1.35
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled Steel
• Amperage: 6.3/3.1 Amps at 1800/1200 RPM
• Thermal Protection: Automatic
• Base: Resilient
• Bearings: Ball Bearings
• Insulation Class: Class B
• Number of Speeds: 2
• Frame Size: 48
