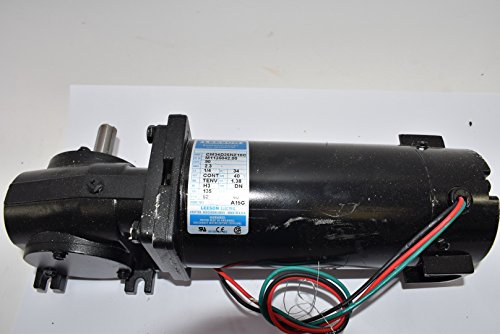

Leeson M1135042.00 Gearmotor 1/4 HP 62 RPM 90VDC TENV 13 40:1 Ratio 135 In-Lbs

Product Description

The Leeson M1135042.00 gearmotor is a powerful industrial solution designed for various applications. This gearmotor operates at 1/4 horsepower, delivering consistent performance at 62 RPM. It utilizes 90VDC power and has a totally enclosed non-ventilated (TENV) motor enclosure, ensuring reliable operation in demanding environments.

• 1/4 HP power rating
• 62 RPM output speed
• 90VDC operating voltage

Product Highlights

This Leeson gearmotor features a right-angle shaft orientation and a 40:1 gear ratio, providing a maximum torque of 135 in-lb. The motor frame designation is 34, and it offers flexibility with any angle mounting orientation.

Product Information

Standard Information

• Brand: Leeson
• MPN: M1135042.00
• Category: DC Gear Motors
• Manufacturer: Leeson

Technical Specifications

• Shaft Orientation: Right Angle

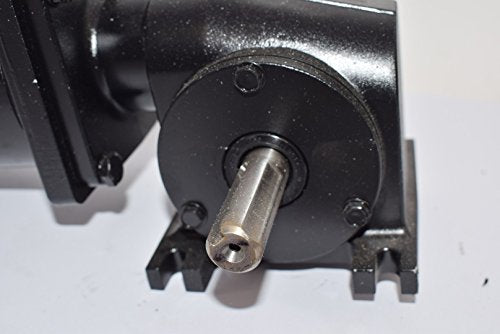

• Output Shaft Type: Keyed
• Motor Enclosure: Totally Enclosed Nonventilated
• Operating Voltage: 90V DC
• Nameplate Speed: 62 RPM
• Maximum Torque: 135 in-lb
• Motor Frame Designation: 34
• Mounting Orientation: Any Angle
• Gear Ratio: 40:1
• Motor Insulation Class: H
• Output Connection Depth: 1 13/16 in
• Efficiency: 30.2%
• Output Shaft Diameter: 5/8 in
• Shaft Orientation: CW/CCW
• Maximum Output Speed: 62 RPM
• Maximum Ambient Temperature: 40 Degrees C
• Service Factor: 1
• Full Load Current: 2.3 A
• Weight: 0.8708249 lbs
• Motor Duty Class: Continuous
