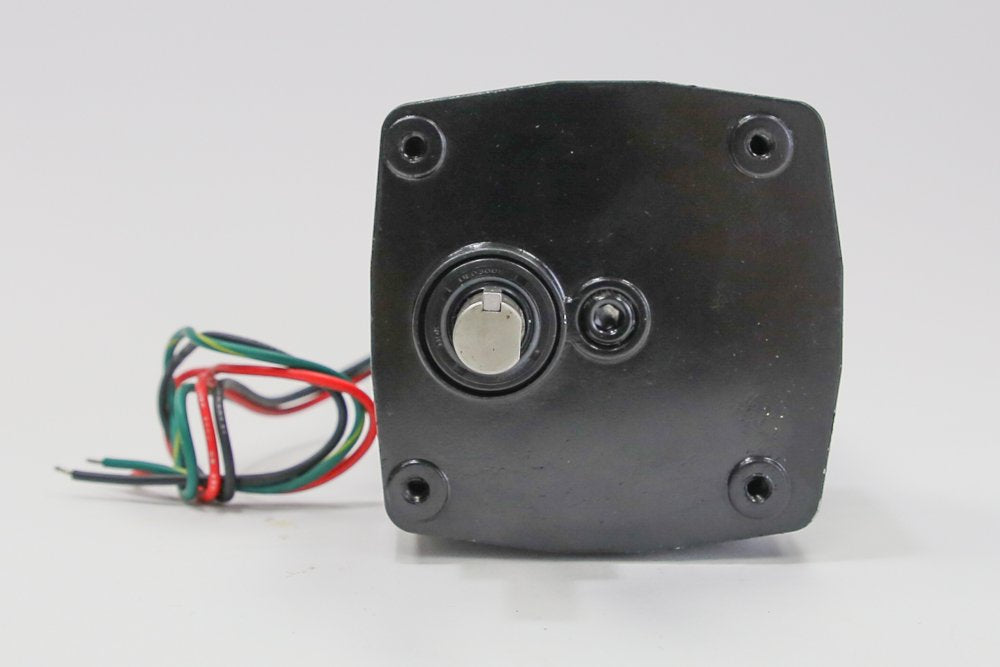

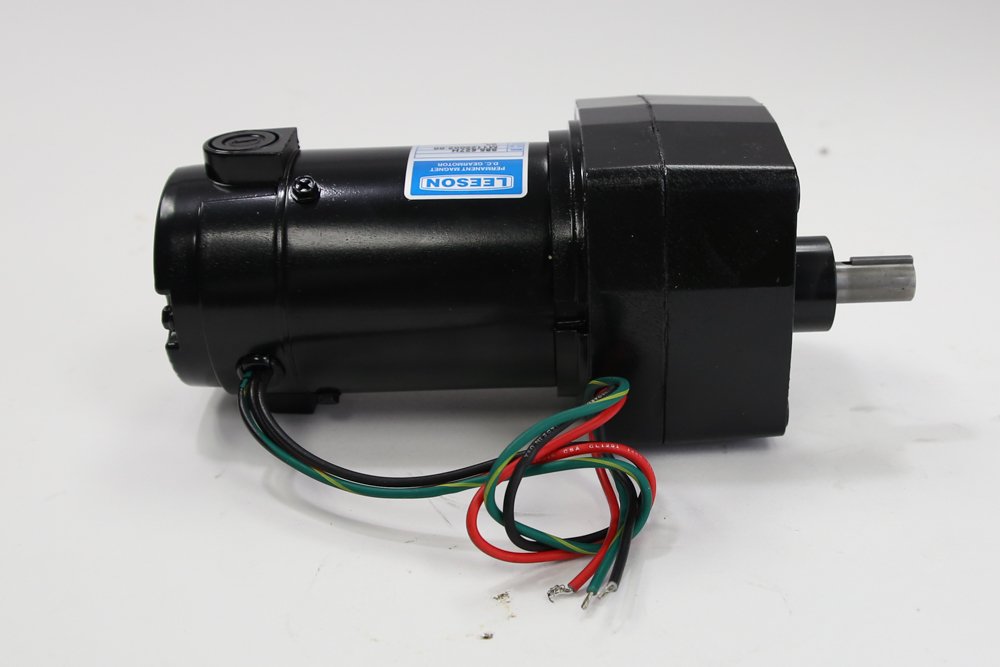

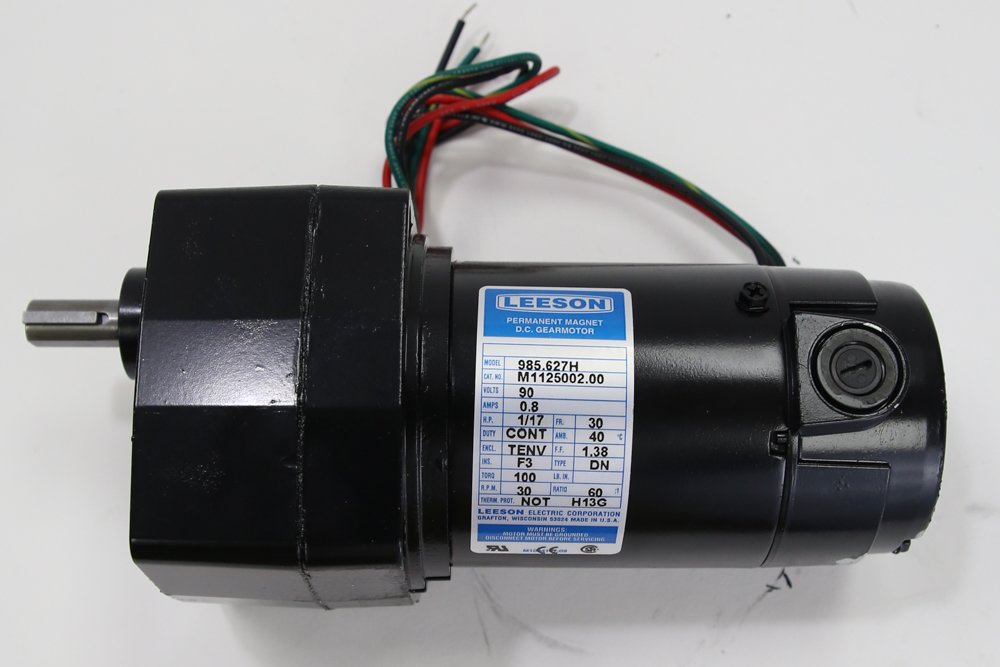

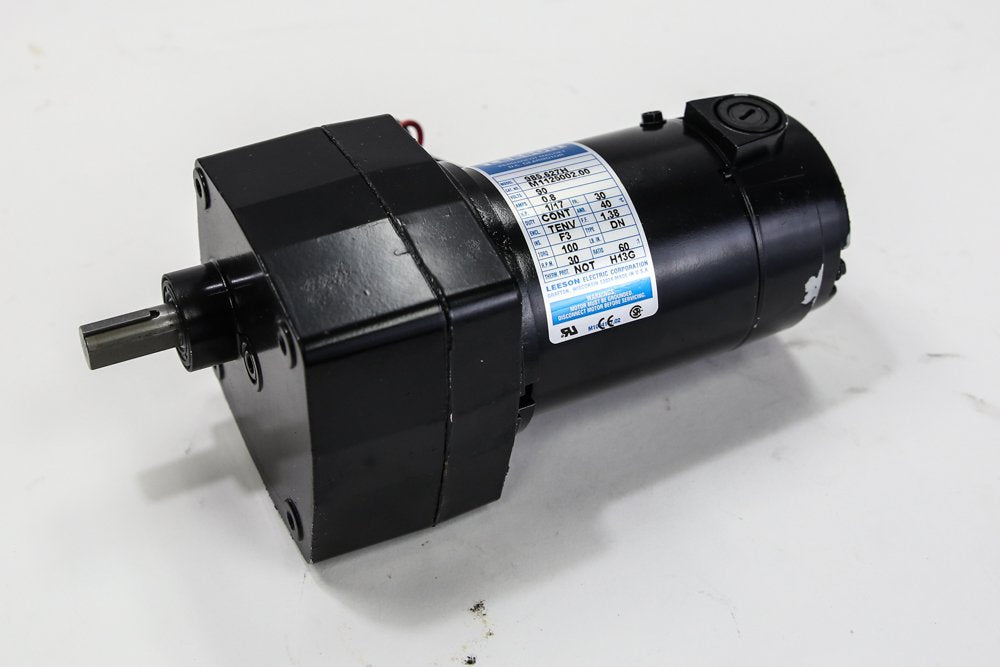

Leeson M1125002.00 Umbrella Carousel Motor 30 RPM (Motor only)

Product Description

The Leeson M1125002.00 is an AC gearmotor designed to replace Haas model 30-0005 Turret Motor. This motor operates at 90 volts and delivers a power output of one-seventeenth horsepower. It generates a maximum torque of one hundred inch-pounds with a speed of thirty revolutions per minute. The motor features a half-inch output shaft.

• Efficient operation at 90 volts
• Maximum torque of 100 inch-pounds
• Durable and designed for continuous duty

Product Highlights

This gearmotor is known for its reliability in applications requiring consistent performance.

Product Information

Standard Information

• Brand: Leeson Electric
• MPN: M1125002.00

Technical Specifications

• Voltage: 90V AC
• Power: 1/17 HP
• Torque: 100 IN-LB
• Speed: 30 RPM
• Output Shaft Diameter: 1/2 in
• Output Shaft Height: 3 in
• Gear Ratio: 60:1
• Overall Length: 8.74 in
• Overall Width: 3.75 in
• Overall Height: 3.98 in
