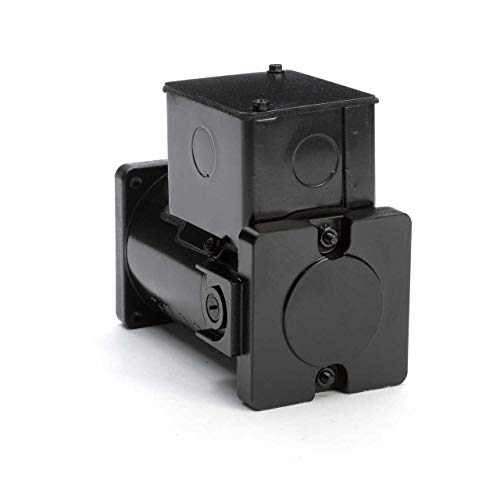

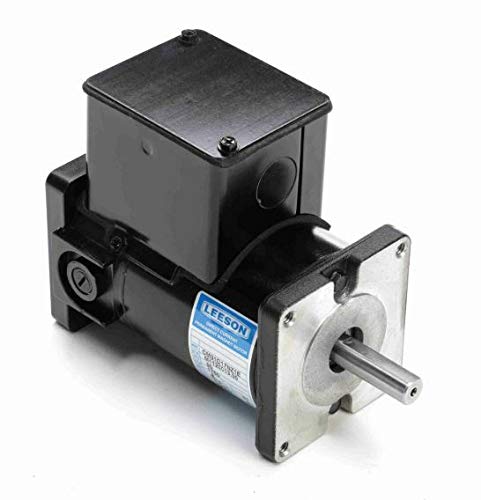

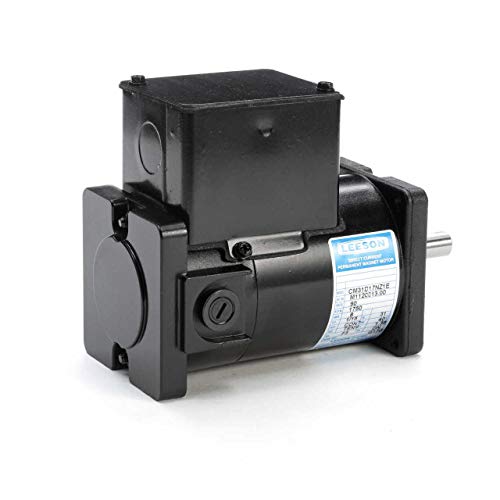

Leeson M1120013.00 DC Permanent Magnet Motor 90V 1/14 HP Continuous Duty

Product Description

The Leeson M1120013.00 DC Permanent Magnet Motor offers a reliable solution for various applications. This motor operates at a voltage of 90V DC and provides 1/14 HP output power at a nameplate RPM of 1750. It features a totally enclosed nonventilated (TENV) design, making it suitable for continuous duty in different environments.

• 1/14 HP power output
• 90V DC operation
• Continuous duty cycle

Product Highlights

The Leeson M1120013.00 motor is designed for efficient performance with its permanent magnet DC configuration. The motor has a face/base mounting type, ball bearings, and offers a service factor of 1. It is designed to withstand a maximum ambient temperature of 40 degrees C.

Product Information

Standard Information

• Brand: Leeson
• MPN: M1120013.00
• UPC: 691720090749

Technical Specifications

• Motor Design: Permanent Magnet DC
• Voltage: 90V DC
• Power Output: 1/14 HP
• Nameplate RPM: 1750
• Full Load Amps: 0.80
• Frame: 31
• Service Factor: 1
• Thermal Protection: No Protection
• Ins. Class: F
• Max. Ambient Temp: 40 Degrees C
• Duty Cycle: Continuous
• Enclosure Design: Totally Enclosed Nonventilated
• Mounting Type: Face/Base
• Shaft Diameter: 1/2 in
• Shaft Length: 1 1/2 in
• Brush Type: External
• Bearings: Ball
• Overall Length: 7 in
• Nominal Efficiency: 56.8%
• Country of Origin: United States
