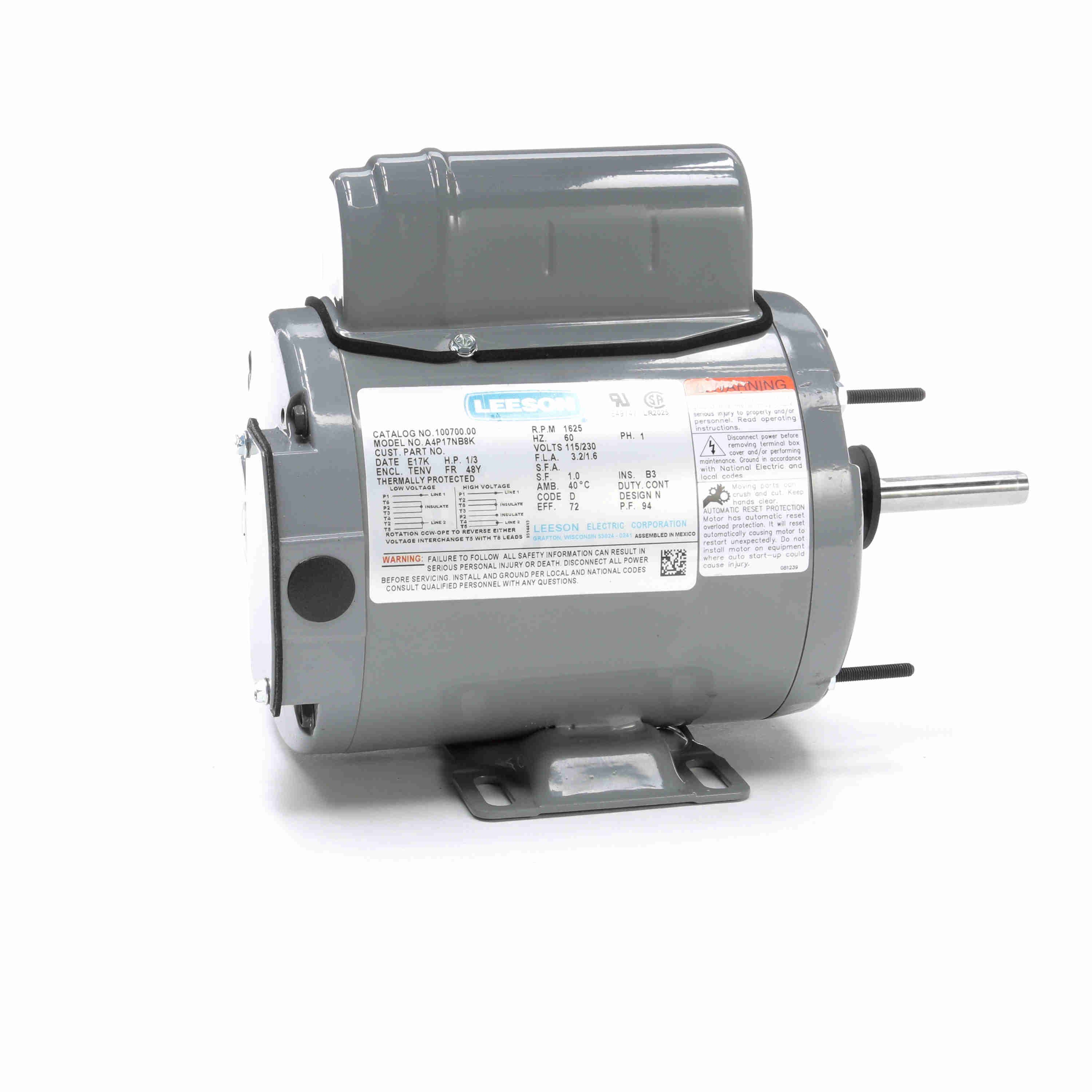

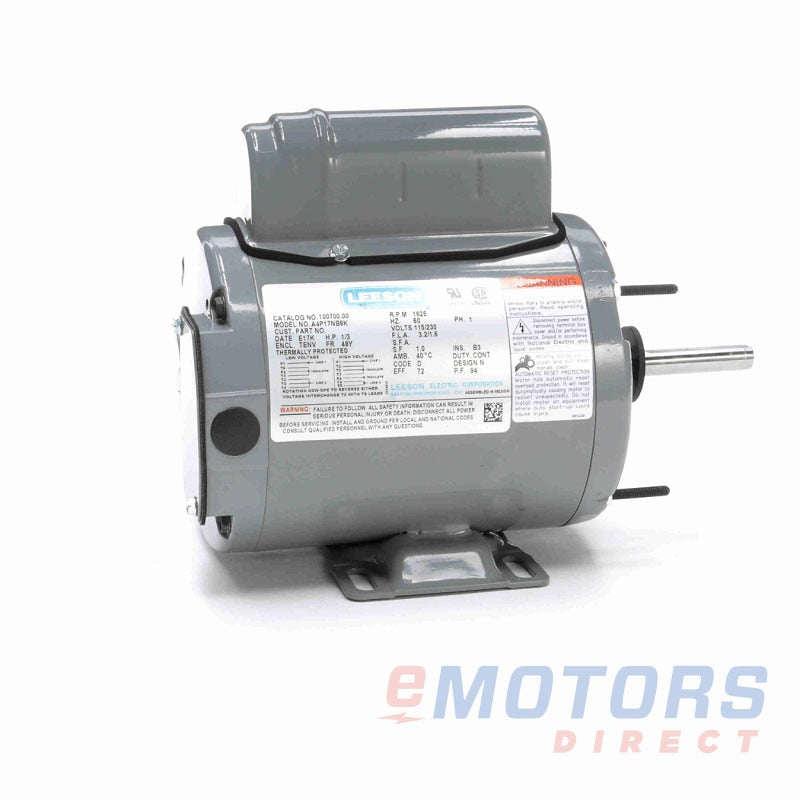

Marathon Motors M099800.00 Electric Motor 1/3 HP TENV

Product Description

The Marathon Motors M099800.00 is a single-phase electric motor suitable for farm duty applications. This motor operates either at one hundred fifteen volts or two hundred thirty volts. It has a rated speed of one thousand six hundred twenty-five RPM or one thousand eight hundred RPM, delivering a power output of one-third horsepower. The motor features a Totally Enclosed Non-Ventilated (TENV) enclosure and is designed for continuous air over duty with horizontal orientation.

• Rated for continuous operation.
• Features reversible rotation.
• Includes ball bearings for smooth performance.

Product Highlights

The M099800.00 operates efficiently in demanding conditions and is ideal for various agricultural tasks.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: M099800.00

Technical Specifications

• Rated Motor Output Power: 1/3 HP
• Rated Motor Speed: 1625 RPM / 1800 RPM
• Rated Motor Voltage: 115V / 230V
• Rated Motor Current: 3.6 / 1.8 AMP
• Phase: 1
• Poles: 4
• Service Factor: 1
• KVA Code: D
• Nominal Efficiency: 69%
• Nominal Power Factor: 82%
• Frequency: 60 Hz
• Frame: 48Y
• Enclosure: TENV
• Mounting: Rigid
• Number of Speeds: 1 Speed
• Approximate Weight: 22 lb
• Frame Material: Rolled Steel
• NEMA Design: N
• Degree of Protection (IP): IP43
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous Air Over
• Orientation: Horizontal
• Ambient Temperature: 40 °C
• DE Bearing: Ball
• NDE Bearing: Ball
• Greaseable: No
• Hazardous Locations: CSA Certified
