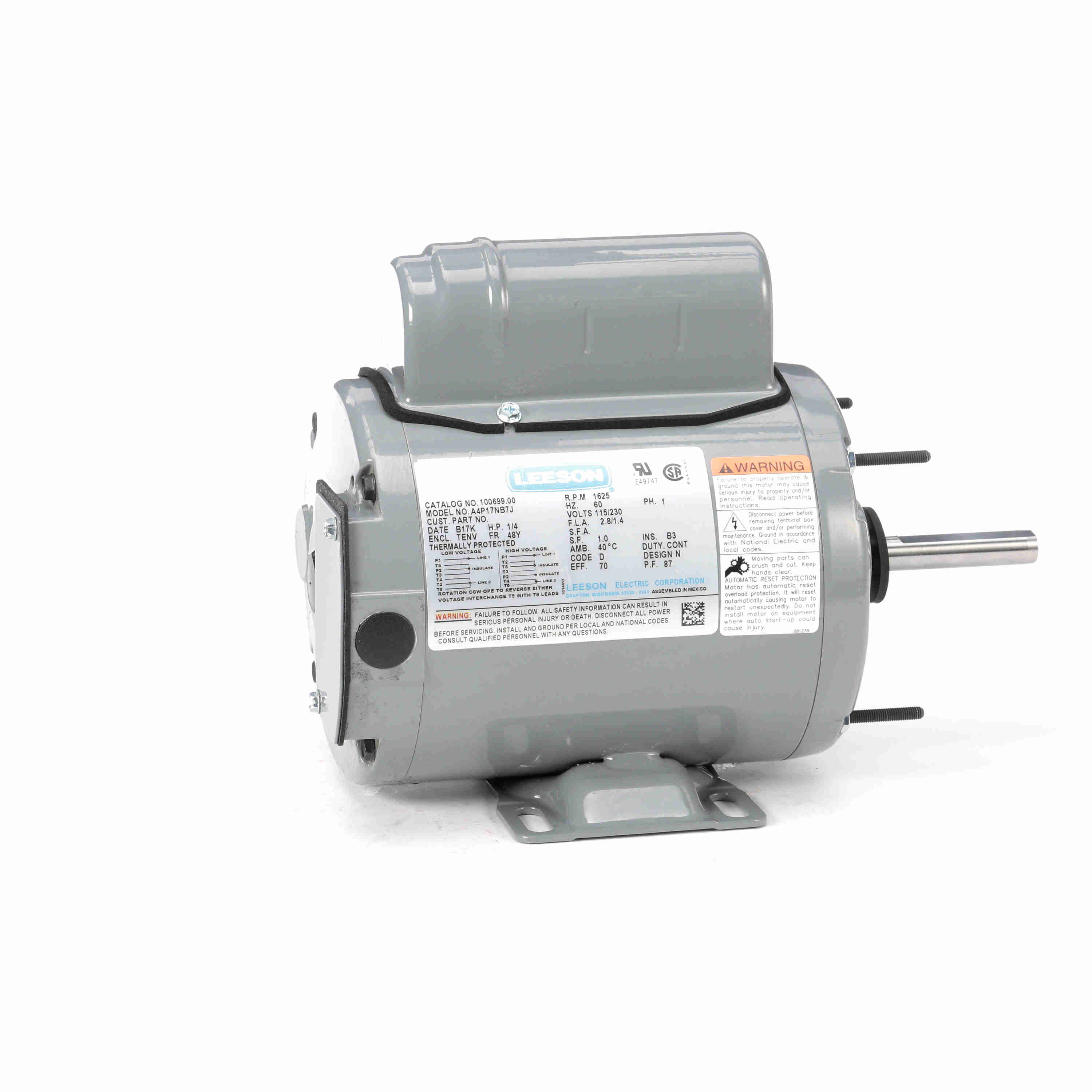

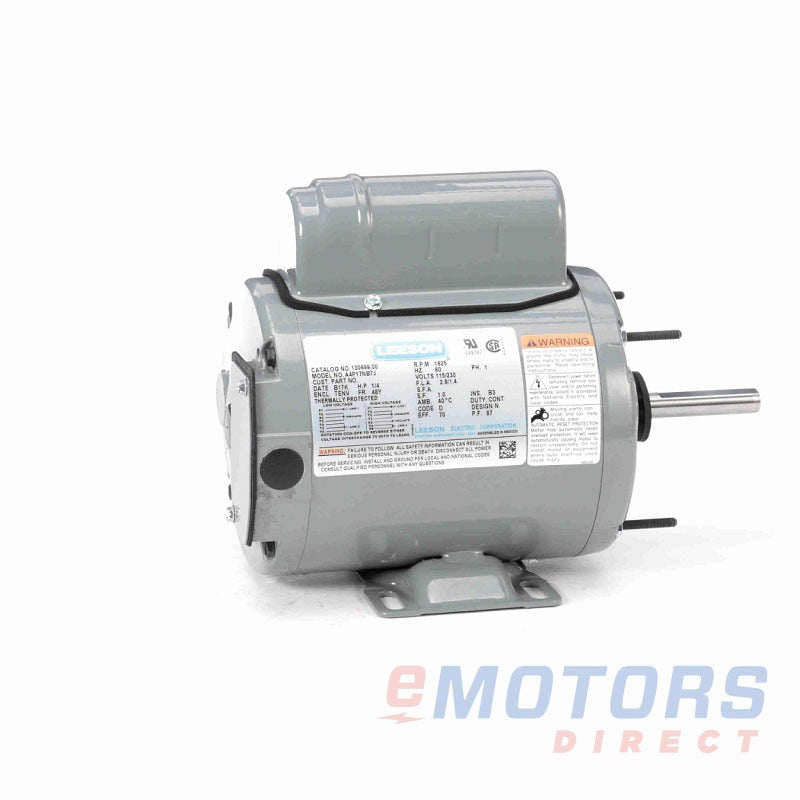

Marathon Motors M099799.00 Electric Motor 1/4 HP

Product Description

The Marathon Motors M099799.00 is a single-phase electric motor ideal for farm duty applications. It supports voltage options of one hundred fifteen volts or two hundred thirty volts at a frequency of sixty hertz. With a rated speed of one thousand six hundred fifty RPM and a power output of one quarter horsepower, it is efficient for various tasks.

• Designed for continuous duty.
• TENV (Totally Enclosed Non-Ventilated) enclosure for enhanced protection.
• CSA and UL certified for safety and reliability.

Product Highlights

This motor is perfect for applications that require a robust and reliable power source. It features a rigid mounting system and is suitable for horizontal installation. With its continuous air over duty capability, the motor operates efficiently under various conditions.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: M099799.00

Technical Specifications

• Rated Motor Output Power: 1/4 HP
• Power: 0.19 kW
• Rated Motor Speed: 1650 RPM
• Rated Motor Voltage: 115V, 230V
• Rated Motor Current: 3.0/1.5 AMP
• Phase: 1
• Poles: 4
• Service Factor: 1
• KVA Code: E
• Nominal Efficiency: 63
• Nominal Power Factor: 85
• Frame: 48Y
• Enclosure: TENV
• Mounting: Rigid
• Number of Speeds: 1 Speed
• Weight: 19lb
• Frame Material: Rolled Steel
• NEMA Design: N
• Degree of Protection (IP): IP43
• Insulation Class: B
• Rotation: Reversible
• Duty: Continuous Air Over
• Orientation: Horizontal
• Ambient Temp: 40 °C
• DE Bearing: BALL
• NDE Bearing: BALL
• Greaseable: No
• Hazardous Locations: CSA Certified
• Agency Approvals: CSA & UL
• Voltage: 115/230 V
• RPM: 1800
