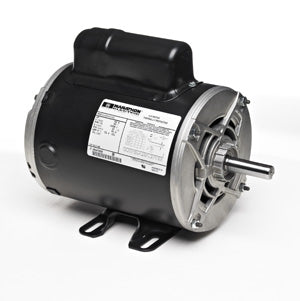

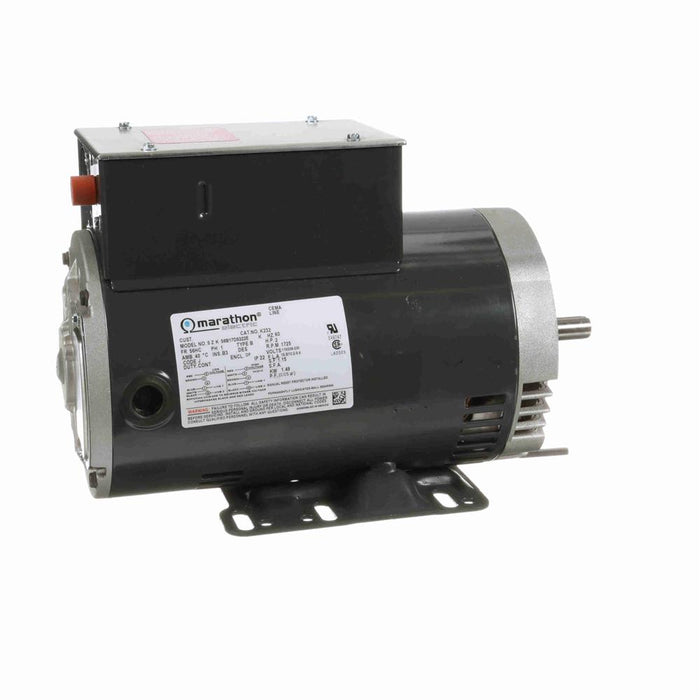

Marathon Motors K232 Pressure Washer Motor 2 HP

Product Description

The MARATHON MOTORS K232 pressure washer motor is a high-performance electrical motor designed for durability and efficiency. This motor features a capacitor start and operates on a single phase, making it ideal for various pressure washing applications.

• High-performance electrical motor
• Designed for durability and efficiency
• Capacitor start

Product Highlights

This single-phase motor is designed for pressure washer duty and features a capacitor start. It operates at 1725 RPM and has a 56HC frame.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: K232

Technical Specifications

• Application: Pressure Washer Duty
• Output HP: 2
• Output KW: 1.5
• Output RPM: 1725
• Frame NEMA: 56HC
• Mount NEMA: C-Face With Base
• Enclosure NEMA: DP
• Enclosure IEC: IP22
• Voltage: 115/208-230
• Frequency (Hz): 60
• Catalog#: K232
• Manufacturer: Marathon
• Amps: 18.8/10.2-9.4
• Bearings: Ball
• Duty Cycle: Continuous
• Efficiency: 0.815
• Enclosure Material: Steel
• Enclosure Type: Open Dripproof (ODP)
• Insulation Class: B
• Manufacturer Model #: 056B17D5322
• Maximum Ambient Temperature: 40° C
• Mounting Orientation: Horizontal
• Mounting: Base
• Number of Speeds: 1
• Overall Length: 13.43"
• Phase: 1
• Product Type: Capacitor Start/Capacitor Run
• Rotation: Reversible
• Service Factor: 1.15
• Shaft Diameter: 5/8"
• Shaft Length: 1.88"
• Thermal Protection: Manual
• Electrical Type: Capacitor Start
• Frame Size: 56hc
• Enclosure: Open Drip-Proof (ODP)
• Material: Rolled Steel
• Operating Speed: 1725 RPM
• Overload Protector: Manual
• Diameter: 6.5"
• Overload: Manual
• Shaft Type: Single
