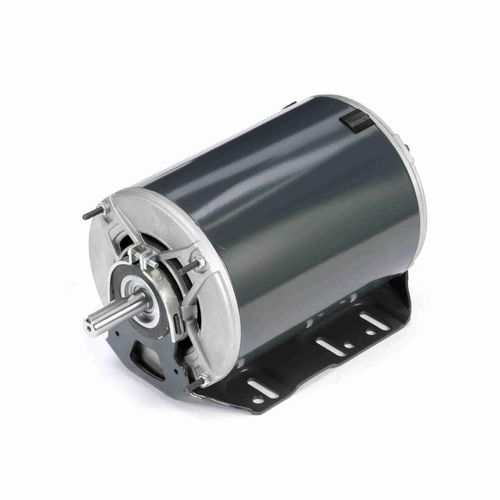

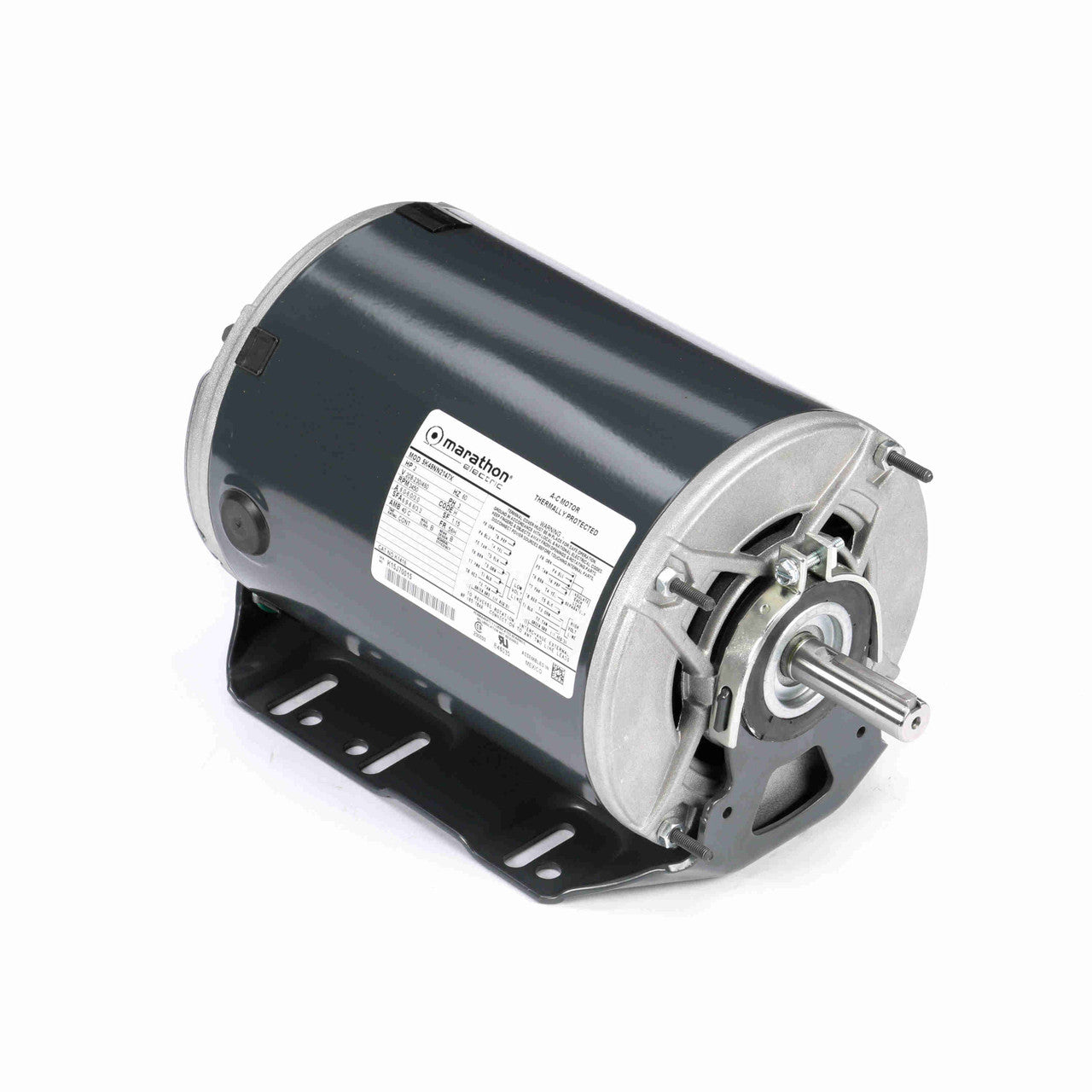

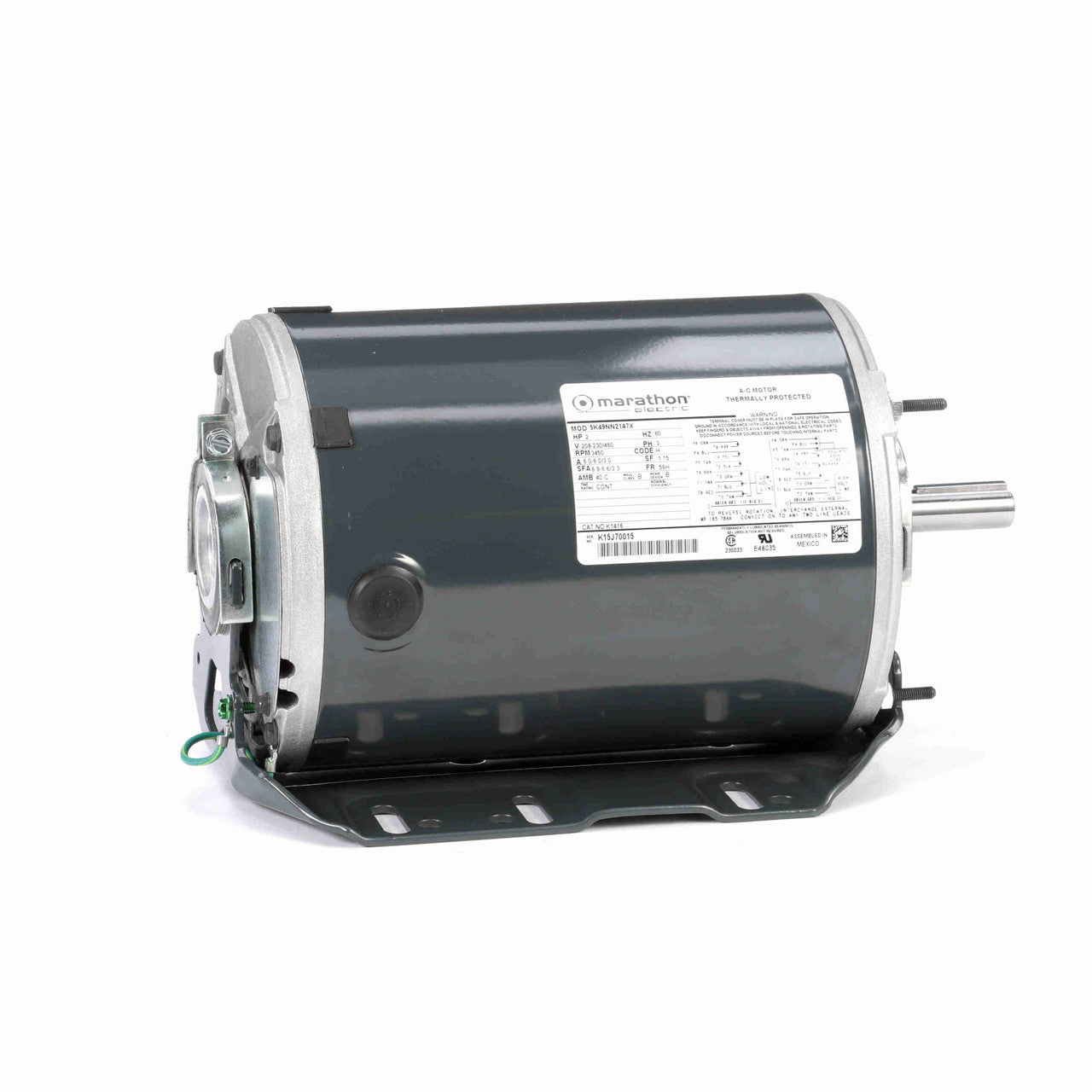

Marathon Motors K1416 Fan and Blower Motor 2 HP

Product Description

The Marathon Motors K1416 is a durable three-phase motor designed for fan and blower applications. This motor has a horsepower of two and operates at 208-230/460 volts, making it suitable for various setups. It features a 56H frame and resilient base mounting, ensuring stable installation. The open drip-proof enclosure protects it from moisture, while automatic overload protection adds to its reliability.

• Operates at 208-230/460 volts for versatility
• Designed for fan and blower applications with resilient base
• Continuous duty rating with automatic overload protection

Product Highlights

This motor is constructed with rolled steel, has ball bearings, and is UL Recognized and CSA Certified, making it a safe choice for industrial use.

Product Information

Standard Information

• Brand: Marathon
• MPN: K1416

Technical Specifications

• Horsepower: 2 hp
• Output Power: 1.5 kW
• Speed: 3450 RPM
• Frame Size: 56H
• Voltage: 208-230/460 V
• Phase: 3
• Frequency: 60 Hz
• Current: 6.0-6.0,3.0 A
• Enclosure Type: Open Drip Proof (ODP)
• Mounting Type: Resilient Base
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Service Factor: 1.15
• Overload Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40 °C
• Duty: Continuous
• Rotation: Reversible
• Material: Rolled Steel
• Design Code: B
• KVA Code: H
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• UL Certification: Recognized
• CSA Certification: Yes
• CE Certification: No
• Number of Speeds: 1
• Efficiency: 80 %
• Power Factor: 0
• Starting Type: Squirrel Cage Induction
• Motor Orientation: Horizontal or Vertical
• Drive End Bearing Type: Ball
• Opposite End Bearing Type: Ball
