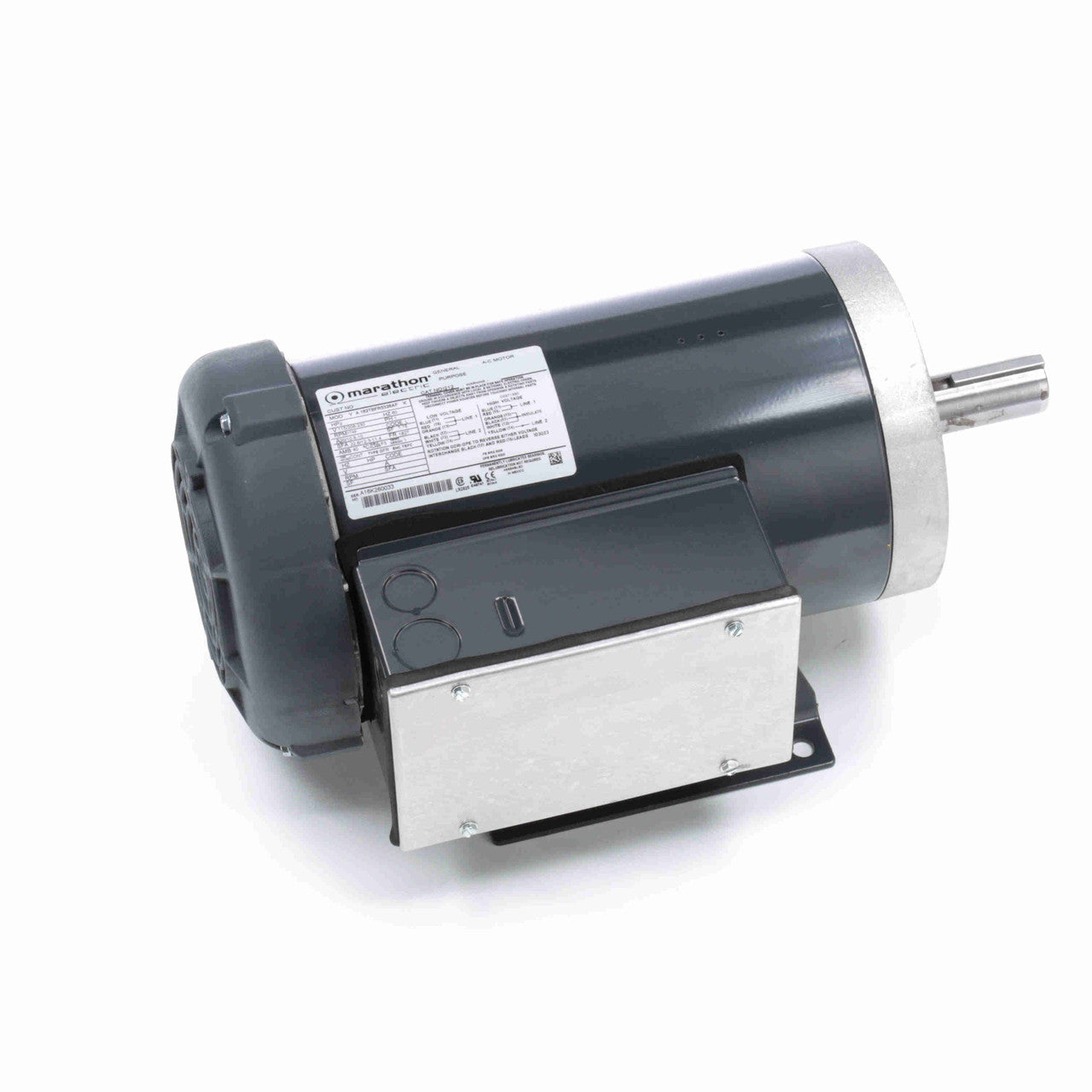

Marathon Motors I212 2HP 1745RPM 182T 115/208-230V TEFC 1PH Motor

Product Description

The MARATHON MOTORS I212 is a 2HP single-phase general-purpose electric motor with continuous duty rating. Designed for standard operating characteristics and mechanical construction, it is suitable for use under usual service conditions. This motor is not intended for outdoor use.

• No overload protection
• Capacitor Start/Capacitor Run design for reduced amperage
• Ball bearings

Product Highlights

This motor features class F insulation, heavy gauge steel construction, and a 1.15 service factor. It is UL Recognized and CSA Certified.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: I212

Technical Specifications

• Application: General Purpose
• Output HP: 2
• Output KW: 1.5
• Output RPM: 1745
• Frame NEMA: 182T
• Mount NEMA: Base Mount
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage: 115/208-230
• Frequency: 60 Hz
• Phase: 1
• Mounting: Rigid Base
• Enclosure: Totally Enclosed Fan Cooled
• Service Factor: 1.15
• Frame: 182T
• Thermal Protection: No Protection
• Efficiency: 80 %
• Ambient Temperature: 40 °C
• Current: 20.0/10.8-10.0 A
• Power Factor: 81
• Duty: Continuous
• Insulation Class: F
• Design Code: L
• KVA Code: L
• Drive End Bearing Size: 6206
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Bearings: Ball
• Enclosure Material: Steel
• Product Type: Capacitor Start/Capacitor Run
• Rotation: Reversible
• Shaft Diameter: 1-1/8"
• Shaft Length: 2.78"
• Motor Shell Length: 9.56"
• Overall Length: 15.65"
