Marathon Motors I206 General Purpose Motor 3 HP (182T Frame)

Product Description

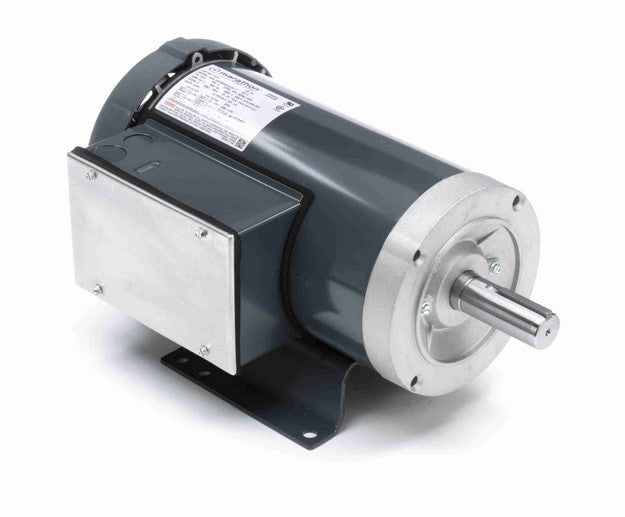

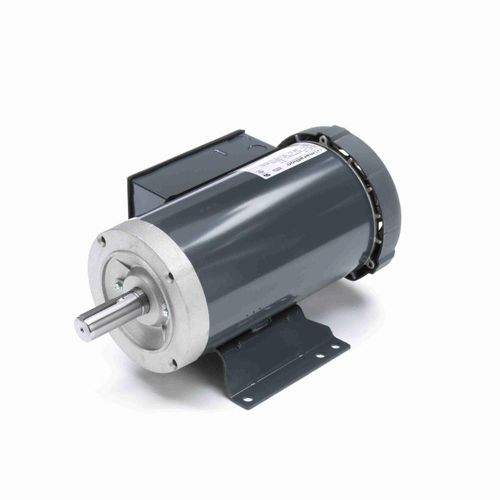

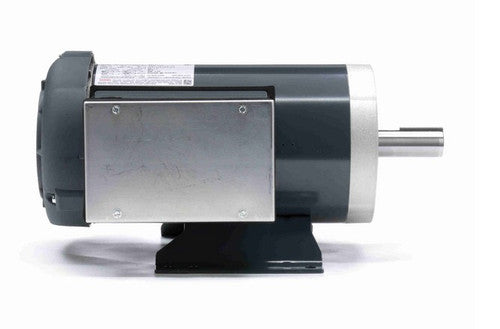

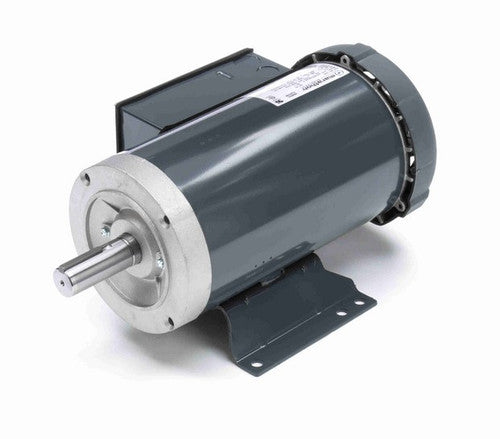

Marathon Motors I206 is a 3 HP single-phase, capacitor start general purpose electric motor rated for 115/208-230 V and 60 Hz. It produces 3520 RPM with full-load amperage of 24.6 / 13.9–12.3 A and is built on a NEMA 182T frame with a totally enclosed fan-cooled (TEFC) enclosure. The motor mounts on a rigid base, uses rolled steel construction, and does not include overload protection.

• 3 HP, 3520 RPM, capacitor start; 115/208-230 V; full-load amperage 24.6 / 13.9–12.3 A
• NEMA 182T frame, TEFC enclosure, rigid base mounting, rolled steel construction
• Reverse (REV) rotation, ball bearings, keyed shaft (1 1/8" diameter x 2 3/4" length); no overload protection

Product Highlights

3 HP single-phase TEFC general purpose motor, 182T frame, capacitor start, 115/208-230 V, 3520 RPM

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: I206

Technical Specifications

• Brand: Marathon Motors
• Manufacturer Part Number: I206
• Alternate SKU: MI206
• Motor Type: Capacitor start
• Horsepower: 3 HP
• RPM: 3520 RPM
• Frame: 182T (NEMA 182T)
• Enclosure: Totally enclosed fan cooled (TEFC)
• Phase: Single-phase
• Voltage: 115 / 208 / 230 V
• Frequency: 60 Hz
• Full Load Amperage: 24.6 A (115 V) / 13.9 A (208 V) / 12.3 A (230 V)
• Rotation: Reverse (REV)
• Overload Protection: None
• Material: Rolled steel
• Mounting: Rigid base
• Shaft: Keyed shaft, 1-1/8" diameter x 2-3/4" length
• Bearings: Ball bearings
• Service Factor: 1.0
• Insulation Class: Class B
• Certifications: UL recognized; CSA certified
• Application: General purpose
