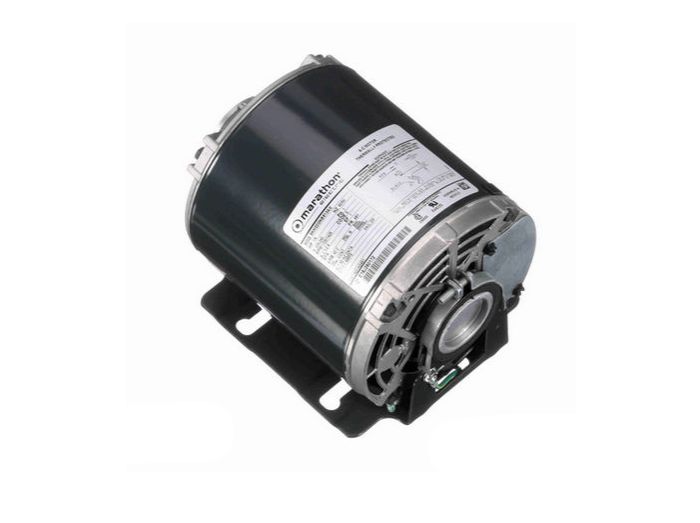

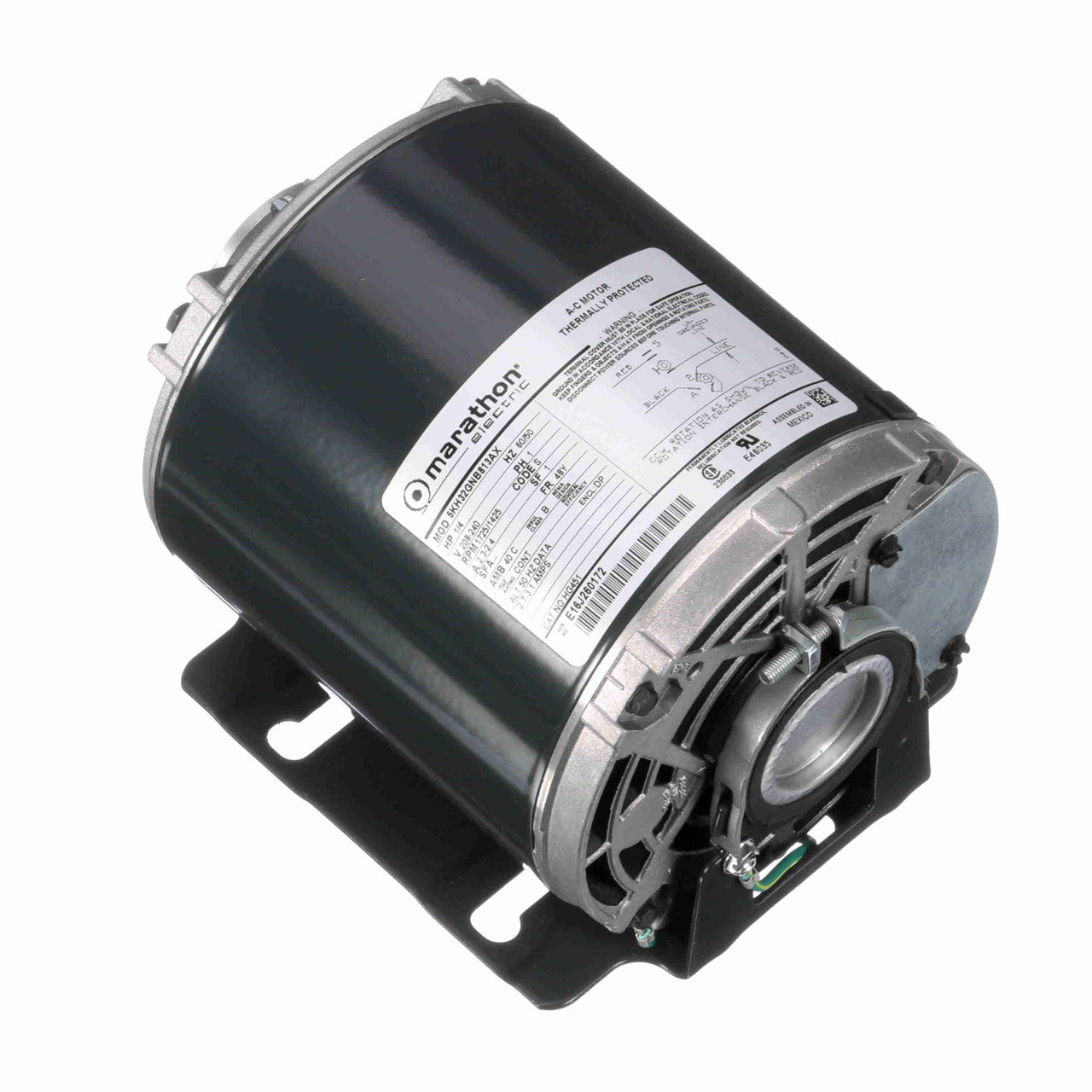

Marathon Motors HG451 Carbonator Pump Motor 1/4 HP 1725/1425 RPM 5KH32GNB813X

Product Description

The MARATHON MOTORS HG451 is a carbonator pump motor operating at 208-240V, 1 phase. This motor delivers 1/4 HP at speeds of 1725/1425 RPM. It features a 48Y frame, a drip-proof enclosure, and is designed for continuous duty. The motor is suitable for various commercial and industrial applications.

• Operates at 208-240V, 1 phase, 60 Hz
• Features a 48Y frame and drip-proof enclosure
• Designed for carbonator pump applications

Product Highlights

This Marathon Motors carbonator pump motor is designed for efficiency and durability in commercial and industrial settings.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: HG451
• Country of Origin: US

Technical Specifications

• Output HP: 0.25 Hp
• Output KW: 0.19 kW
• Voltage: 208-240 V
• Phase: 1
• Speed (RPM): 1725/1425 rpm
• Frame Size: 48Y
• Mounting: Carbonator Pump
• Enclosure: ODP
• Service Factor: 1
• Thermal Protection: Automatic
• Efficiency: 62.8 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.4 Amps
• Duty: Continuous
• Insulation Class: B
• KVA Code: S
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Yes
• Number of Speeds: 1
• Application: Carbonator Pump
• Mount NEMA: Resilient Base
• Enclosure NEMA: DP
• Brand: Marathon
• Catalog No: HG451
• Product Type: Carbonator Pump Motor
• Horsepower: 1/4 HP
• Speed: 1725/1425 RPM
• Motor Orientation: ANY
• Number of Poles: 4
• Mounting Type: Resilient Base
• Frame Material: Rolled Steel
• Overall Length: 7.69 in
• Efficiency @ 100% Load: 62.80%
• Duty Rating: Continous
• Overload Protector: AUTO
• Electrical Type: Split Phase
• Starting Method: SM
• Frame Length: 5.16 in
• Shaft Diameter: 0.63 in
• Opp Drive End Bearing: Ball
• Drive End Bearing: Ball
• Shaft Extension Location: 0.17 in
• Shaft Rotation: Counterclockwise/Clockwise
• Agency Approvals: CSA, CE, UL
• Manufacturer Part Number: 5KH32GNB813X
• Manufacturer: Marathon Electric
• Family Series: Marathon Electric Motors
• Description: 1/4, 1800, DP, 48Y, 1/60/208-240
• Type: NEMA Motors, Pump Motors
• RPM: 1,725 RPM
• NEMA Frame: 48Y
• AC Voltage: 208-240 VAC
• Current Rating: 2.4 A
• Composition: Rolled Steel
• Bearing Type: Ball
• Length: 7.69 "
• Approvals: CSA, UR
