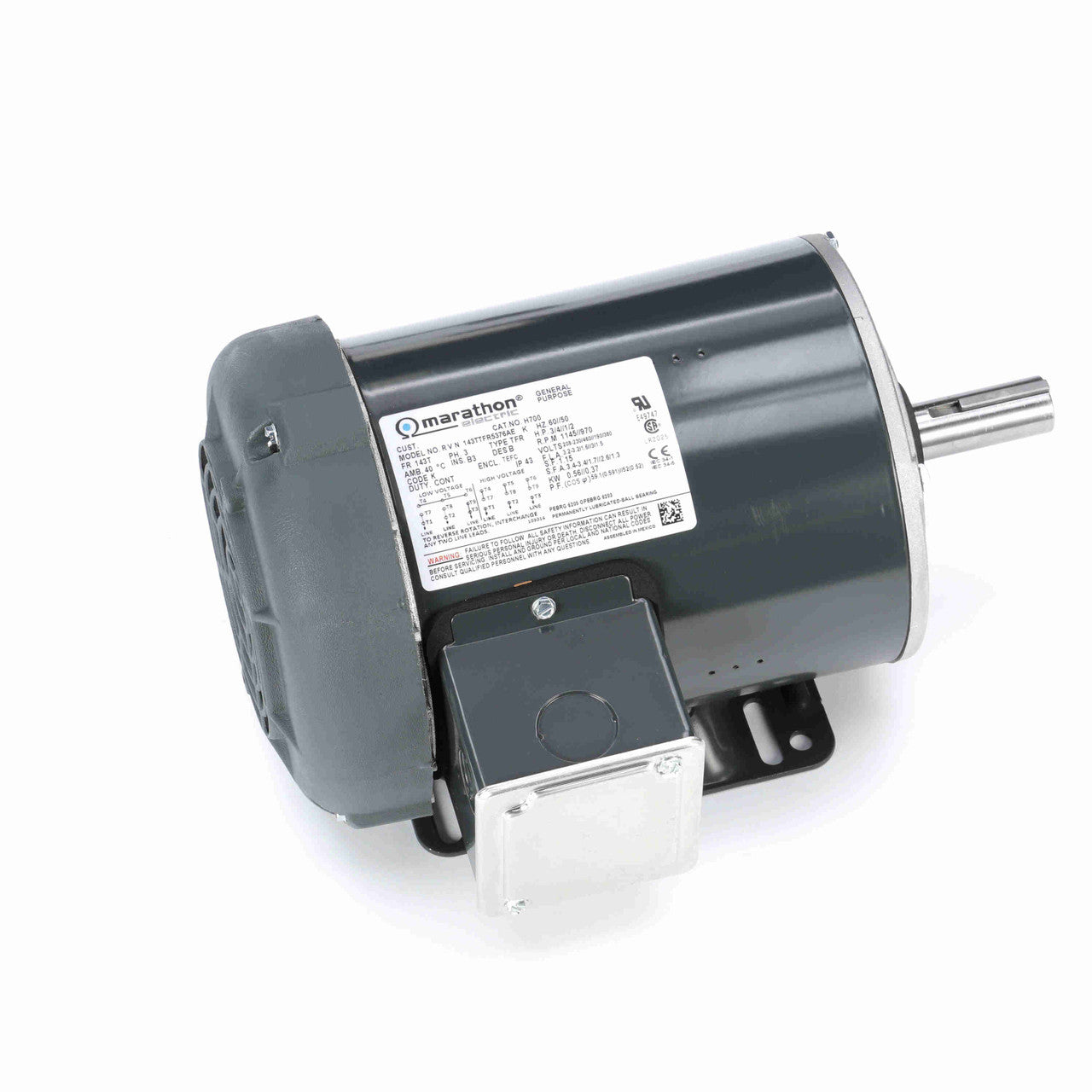

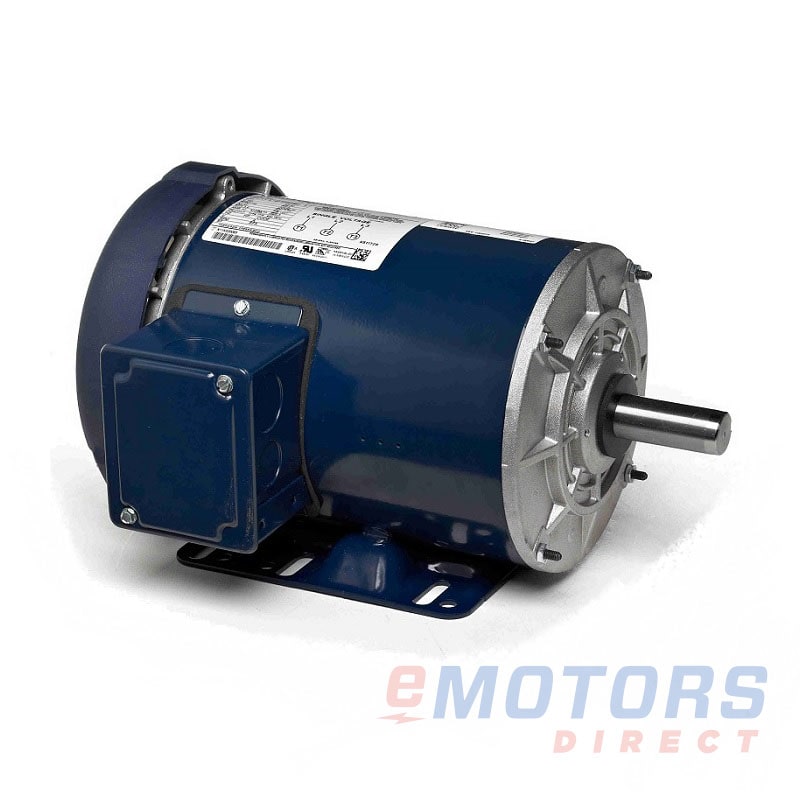

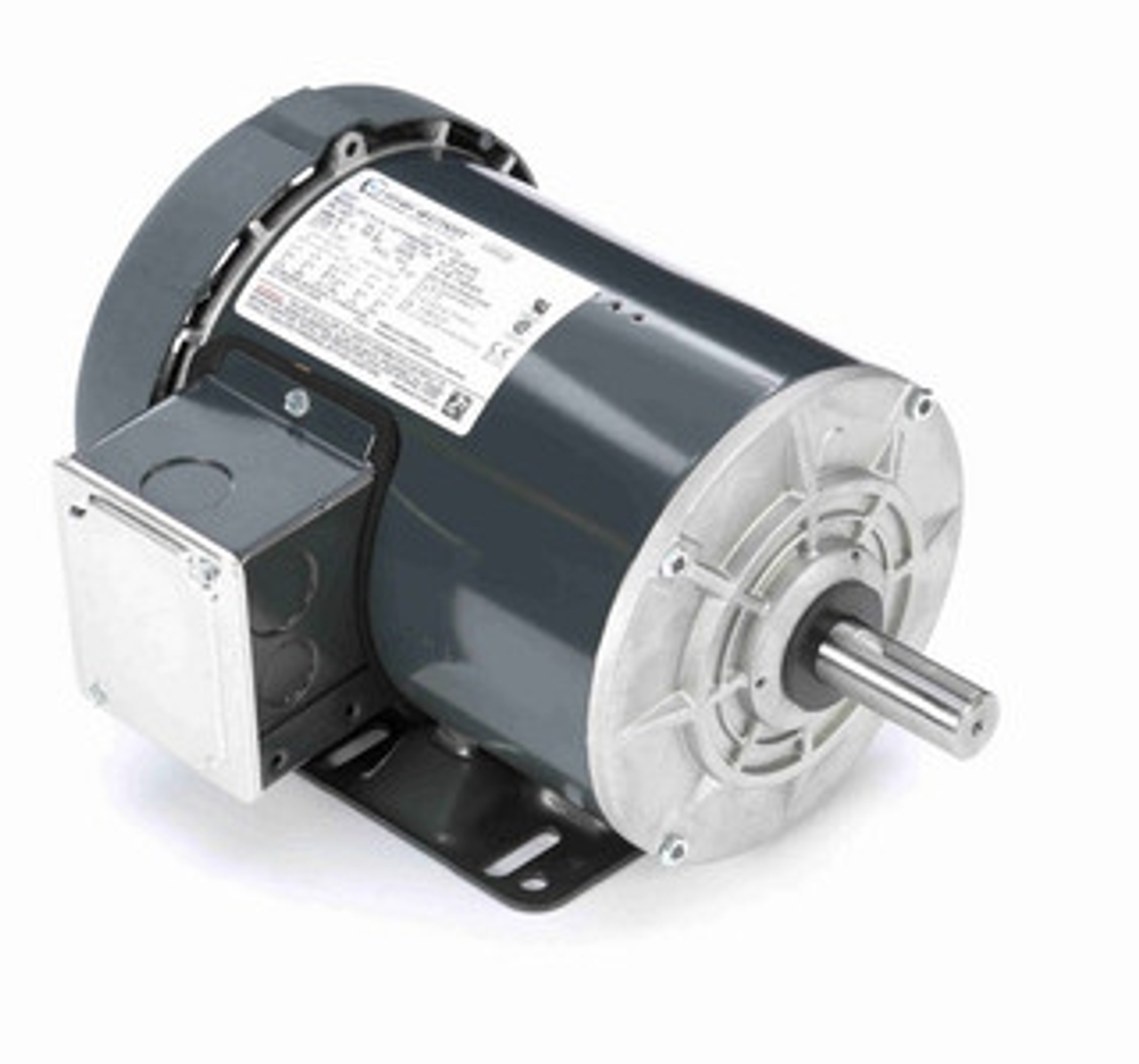

Marathon Motors H700 General Purpose Motor 0.75 HP 208-230/460 VAC

Product Description

The Marathon Motors H700 is a three-phase general-purpose motor. This motor features a rigid base for mounting and a totally enclosed fan cooled enclosure. It is suitable for use in damp, dusty, or dirty environments. The H700 is designed for continuous duty and uses a squirrel cage induction run electrical type.

• 0.75 HP output at 1145 or 1200 RPM
• Operates on 208-230/460 VAC
• TEFC enclosure for environmental protection

Product Highlights

The H700 motor is ideal for various applications where durability and reliable performance are required.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer: Regal Rexnord Commercial

Technical Specifications

• MPN: H700
• Output Power: 0.75 HP
• Output Power (kW): 0.56 kW
• Rated Motor Output Power: 3/4 HP
• Output RPM: 1145 RPM
• Rated Motor Speed: 1200 RPM
• Voltage: 208-230/460 V
• Current: 3.2-3.2/1.6 A
• Frequency: 60 Hz
• Phase: 3
• Poles: 6
• Service Factor: 1.15
• Efficiency: 74%
• Duty: Continuous
• Insulation Class: B
• Frame Size: 143T
• Enclosure: TEFC
• IP Code: IP43
• Motor Orientation: Horizontal
• Rotation: Reversible
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.28 inches
• Overall Length: 12.37 inches
• Weight: 28 lbs
• Ambient Temperature: 40 °C
• UL Recognized: Yes
• CSA Certified: Yes
• CE Certified: Yes
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
