Product Description

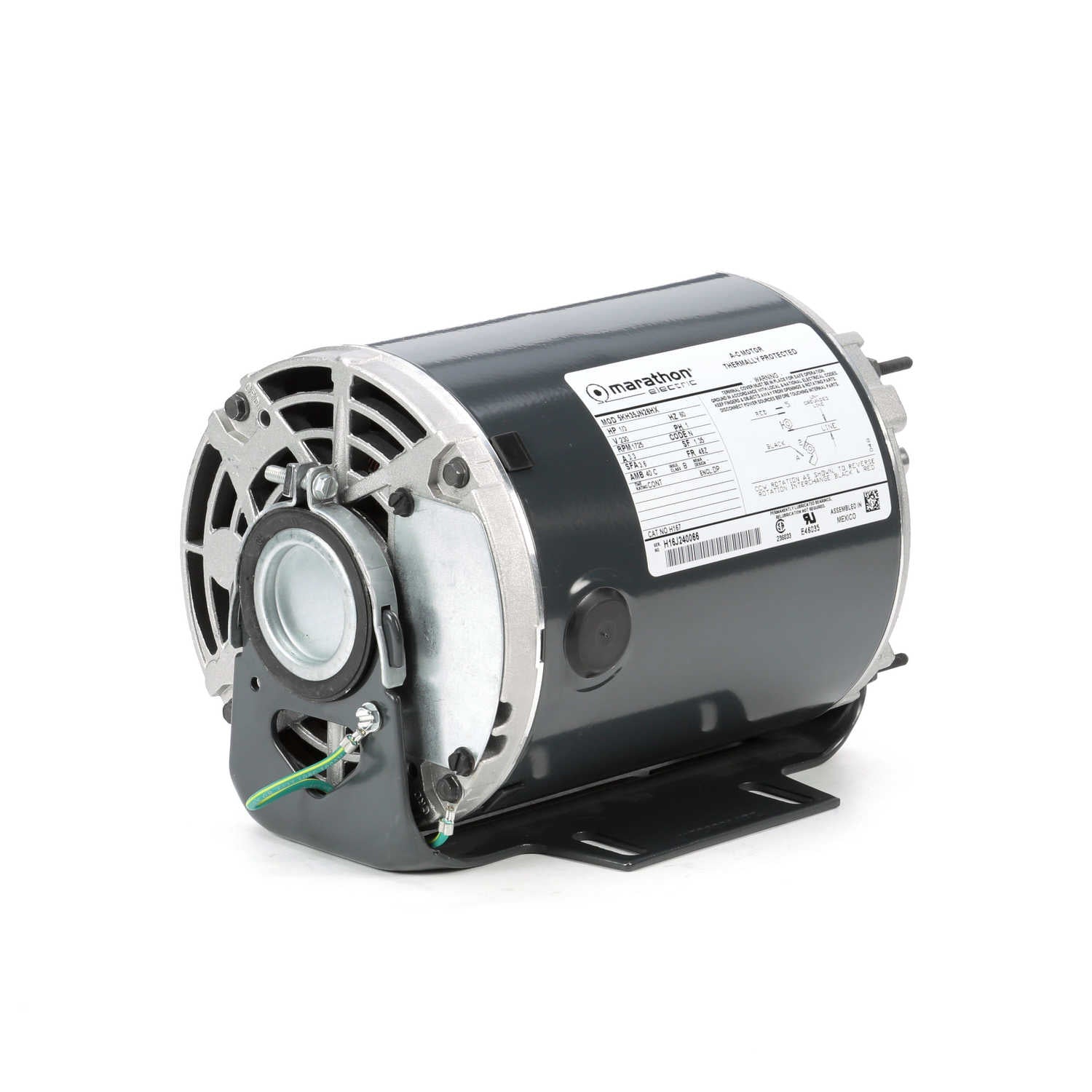

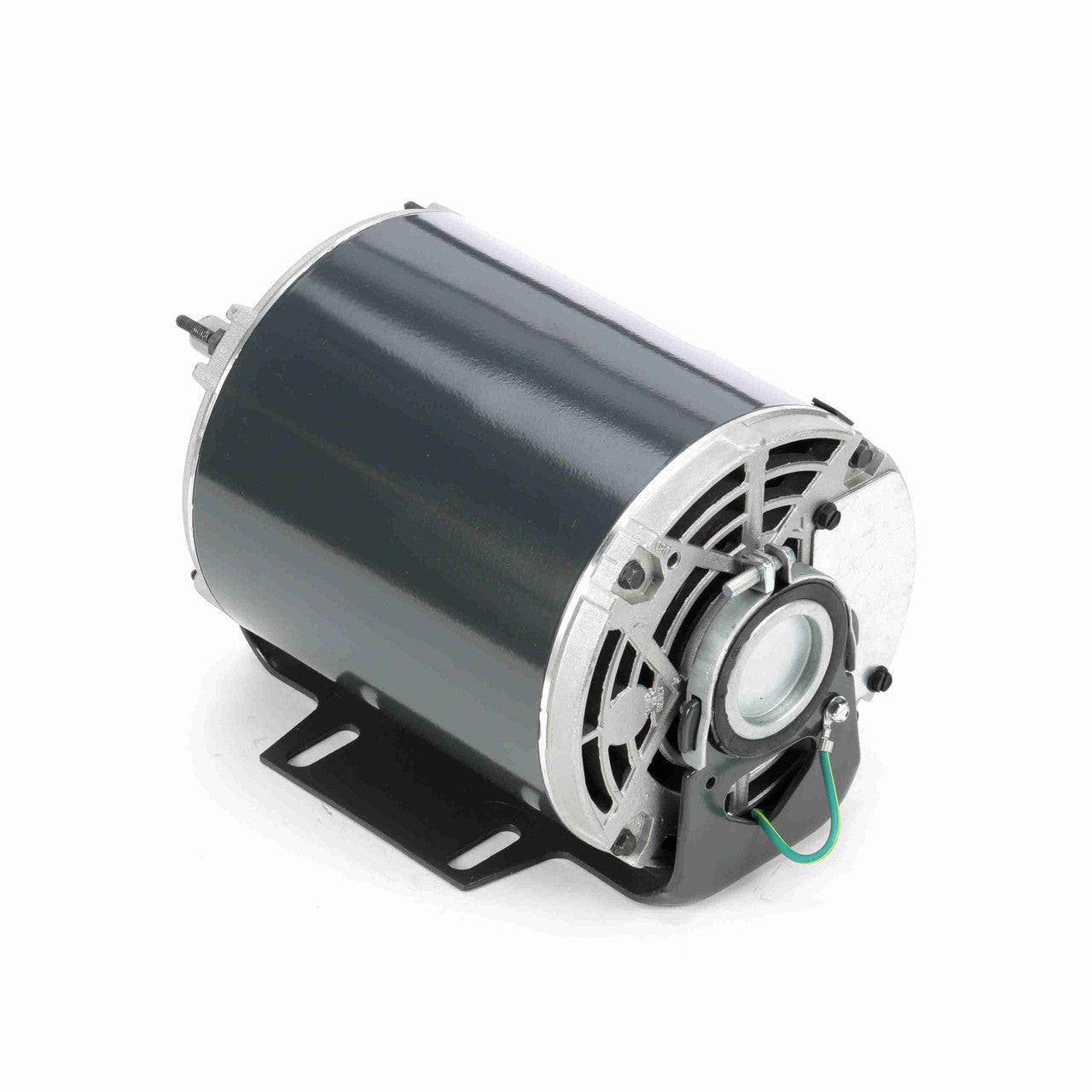

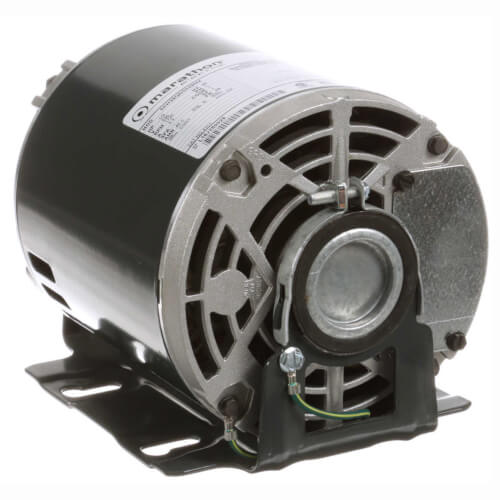

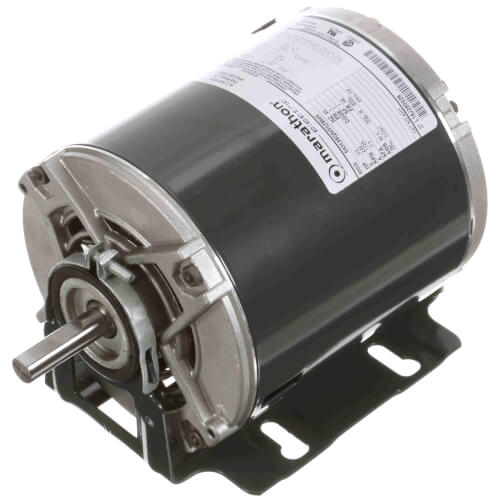

The MARATHON MOTORS H167 fan blower motor is designed with dynamically balanced rotors for reduced vibration and quiet operation. This motor is suitable for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans. It operates at 230V, 1725 RPM, and 1/3 HP.
- Dynamically balanced rotors
- Reduced vibration
- Quiet operation
Product Highlights
This motor features a heavy gauge steel frame and base, ball bearings, and automatic overload protection.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: H167
Technical Specifications
-
Brand: Marathon Motors
-
Frame: 48Z
-
Hertz: 60 Hz
-
Phase: 1
-
Voltage: 230 V
-
Rotation: Counterclockwise/Clockwise
-
Enclosure: DP
-
RPM Range: 1701-1800 rpm
-
Rated RPM: 1725
-
Horsepower: 1/3 HP
-
Bearing Type: Ball
-
Enclosure Type: Open/Drip Proof
-
Full Load Amps: 3.3 FLA
-
Service Factor: 1.35
-
Insulation Class: B
-
Number of Speeds: 1
-
Mounting Location: RB (Resilient Base)
-
Motor RPM 60 Hertz: 1725 rpm
-
Thermal Protection: Automatic
-
Ambient Temperature: 40 °C
-
Manufacturers Part Number: H167
-
Drive End Bearing Size: 6203
-
Opposite End Bearing Size: 6203
-
Duty: Continuous
-
Type: Fan & Blower
-
Amperage: 3.3
-
Mount: Resilient Base
-
Poles: 4
-
Speeds: 1
-
Max Ambient Temp (°F): 104°F
-
Motor: Split Phase
-
Motor Orientation: Any
-
Overload Protection: Automatic
-
Application: Fan & Blower
-
Output HP: 1/3
-
Output KW: 0.25
-
Frame NEMA: 48Z
-
Mount NEMA: Resilient Base
-
Enclosure NEMA: DP
-
Frequency (Hz): 60
-
Efficiency: 56.5
-
Shaft: flat Shaft 1 7/8" x 1/2" Diameter
-
Base: Resilient Base
-
RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
-
RPM (Nameplate): 1725
-
Frame Material: Rolled Steel
-
Shaft Diameter: 1/2 (in.)
-
Shaft Extension: 1.8 (in.)
-
DE Bearing Type: Ball
-
ODE Bearing Type: Ball
-
C-Dimension: 9.95 (in.)
-
Electrical Type: Split Phase
-
Type of Overload Protector: AUTO
-
Max Ambient: 40°C
-
UL: Recognized
-
CE: N
-
CSA: Y
-
IP Code: -
-
KVA Code: N
-
DEM Reference: H167
-
Ambient Teperature: 40C
