Product Description

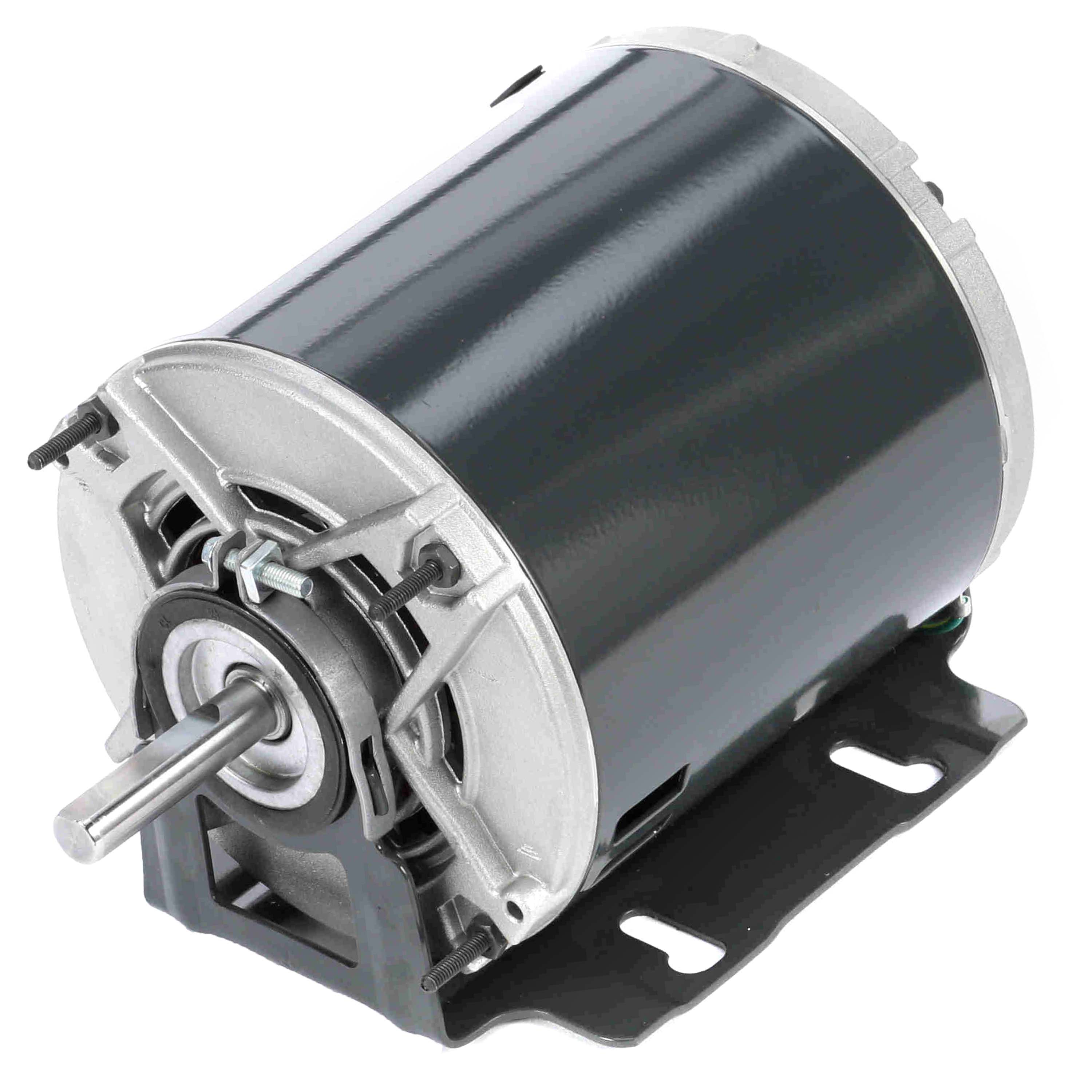

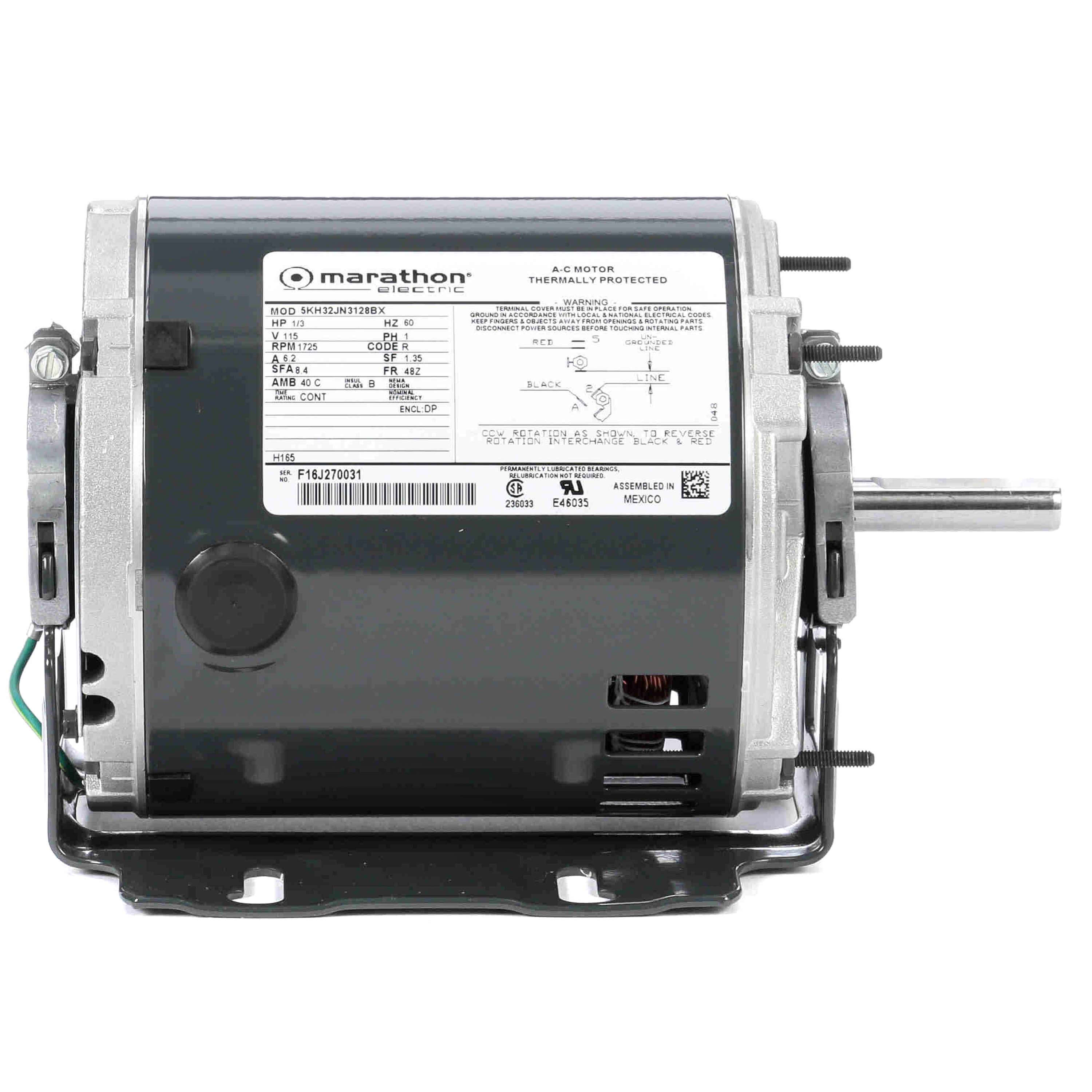

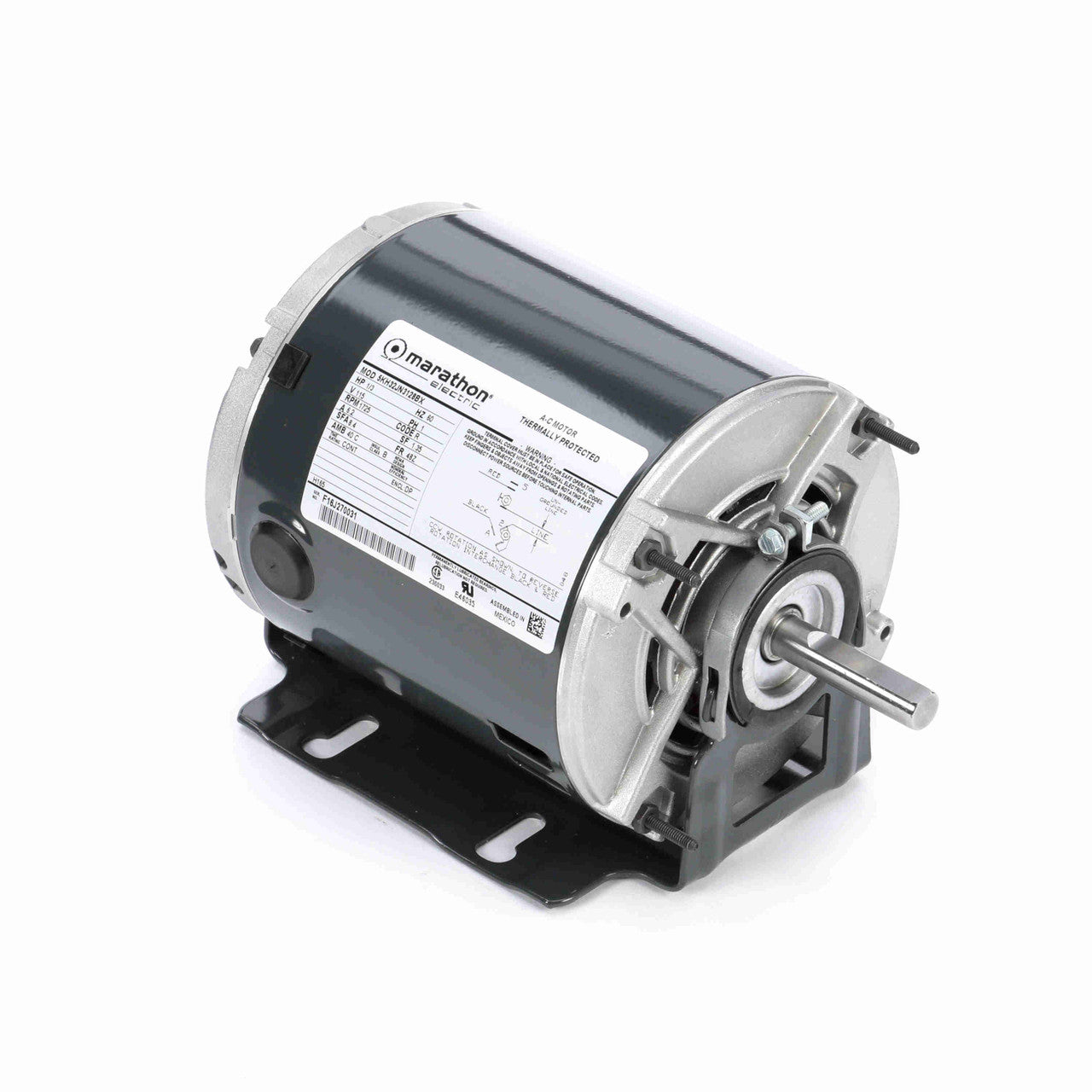

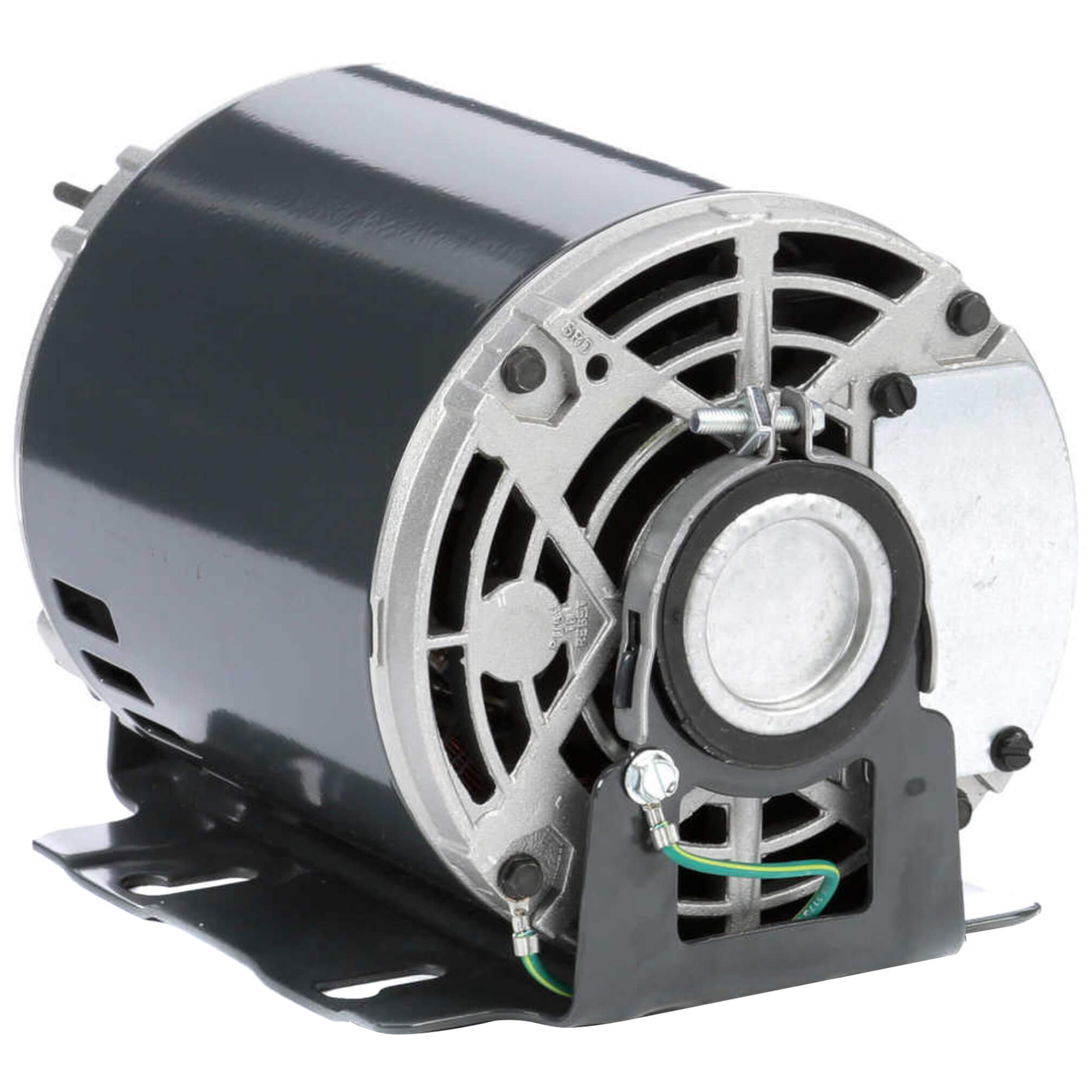

The MARATHON MOTORS H165 is a fan and blower motor operating at 1/3 HP and 1725 RPM, designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans. It features a heavy gauge steel frame and base, automatic overload protection, and a split phase design.
- Ball bearings
- UL Recognized and CSA certified
- Heavy gauge steel frame and base
Product Highlights
Designed for HVAC systems, air handling units, and exhaust fans, offering reliable performance and energy efficiency.
Product Information
Standard Information
-
Brand: MARATHON MOTORS
-
Manufacturer Part Number: H165
Technical Specifications
-
RPM: 1725
-
Duty: Continuous
-
Type: Fan & Blower
-
Frame: 48Z
-
Motor: Split Phase
-
Mount: Resilient Base
-
Phase: 1
-
Poles: 4
-
Speeds: 1
-
Voltage: 115V
-
Amperage: 6.2
-
Bearings: Ball
-
Rotation: CW/CCW
-
Horse Power: 1/3
-
Enclosure Type: Open/Drip Proof
-
Insulation Class: B
-
Motor Orientation: Any
-
Overload Protection: Automatic
-
Max Ambient Temp (°F): 104°F
-
Application: Fan & Blower
-
Output HP: 1/3
-
Output KW: 0.25
-
Frame NEMA: 48Z
-
Enclosure NEMA: DP
-
Frequency (Hz): 60
-
Efficiency: 57.4
-
HP: 0.33
-
kW: N/A
-
FL Amps: 6.2
-
SF: 1.35
-
FL Eff: 0 %
-
Ambient: 40
-
Mounting: RB
-
NEMA Design: N/A
-
Orientation: Horizontal or Vertical
-
Starting Type: Switch and Mech
-
Assembly: N/A
-
KVA Code: R
-
Drive End Bearing: BALL
-
IP Code: N/A
-
Opposite End Bearing: BALL
-
Drive End Bearing Size: 6203
-
Hazardous Location: N/R
-
Weight: 16 lbs
-
CE: N/A
-
CSA: Y
-
UL: Recognized
-
Number of Speeds: 2
-
Motor RPM 60 Hertz: 1725 rpm
-
Mounting Location: RB (Resilient Base)
-
Manufacturers Part Number: H165
-
Service Factor: 1.35
-
Brand: Marathon Motors
-
Hertz: 60 Hz
-
Thermal Protection: Automatic
-
Full Load Amps: 6.2 FLA
-
Rated RPM: 1725
-
RPM Range: 1701-1800 rpm
-
Ambient Temperature: 40 °C
-
Opposite End Bearing Size: 6203
-
Shaft Diameter: 1/2 (in.)
-
Shaft Extension: 1.88 (in.)
-
Frame Material: Rolled Steel
-
Electrical Type: Split Phase
-
Type of Overload Protector: AUTO
-
Max Ambient: 40°C
-
DEM Reference: H165
