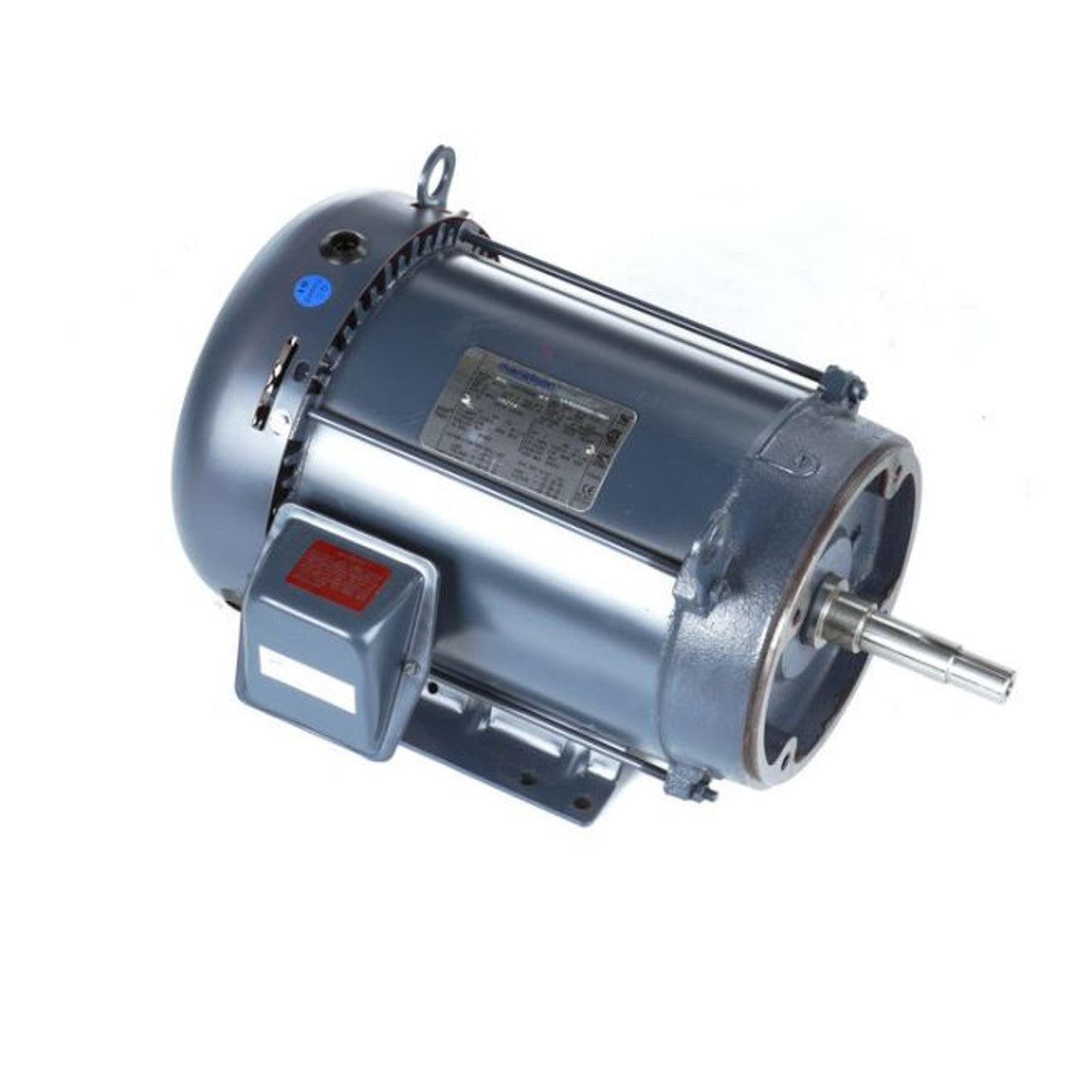

Marathon Motors GT3116A 7.5 hp 1800 Rpm Tefc 213jm Motor 213TTFBD6031

Product Description

The MARATHON MOTORS GT3116A is an OEM motor designed with a power capacity of 7.5 horsepower and an operating speed of 1800 RPM. This three-phase, totally enclosed fan cooled motor is suitable for close-coupled applications where the pump impeller is attached directly to the motor shaft. It operates effectively in clean and dry environments.

• 1800 RPM operational speed
• Rated at 7.5 horsepower
• Designed for continuous duty service

Product Highlights

This motor meets NEMA Premium efficiency standards, making it reliable for industrial applications.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: GT3116A

Technical Specifications

• RPM: 1800
• Horse Power: 7-1/2 hp
• Phase: 3
• Voltage: 230/460 & 190/380 V
• Speed: 1768 & 1475 rpm
• Service Factor: 1.15
• Frame: 213JM
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 91.7 & 90.2 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 19/9.5 & 16.2/8.1 A
• Power Factor: 79.3
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: H
• Drive End Bearing Size: 6309
• Opp Drive End Bearing Size: 6206
• UL: Listed
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Hazardous Location: DIVISION 2 T2B
• Application: Closed Coupled
• Frame Size NEMA: 213JM
• Special Features: Squirrel Cage Inverter Rated Motors
• Application Type: Close Coupled Motors
• Shaft Size: 0.874 in Dia x 4-1/2 in L Extension
• Torque Rating: 22.3 ft-lb Full Load
• Rotation: Reversible
• Bearing Type: Deep Groove Ball
• Temperature Rating: 40 deg C
• Enclosure Type: IP43 TEFC
• Mounting Type: Rigid Base
• Amperage Rating: 19/9.5 A
• Voltage Rating: 230/460 VAC
• Material: Rolled Steel
