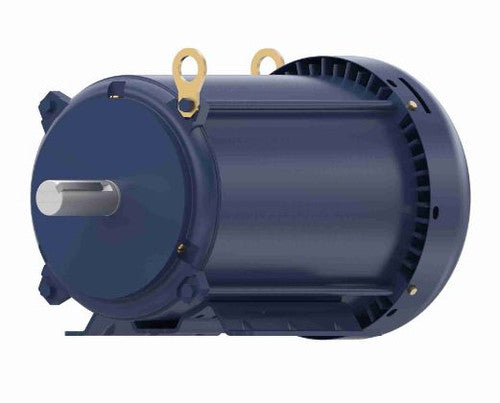

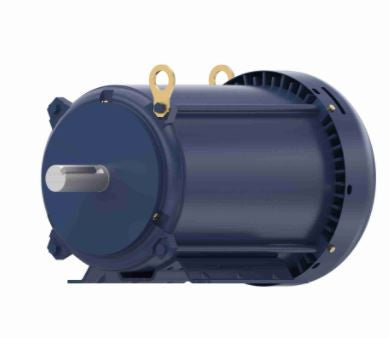

Marathon Motors GT1516 General Purpose Electric Motor 7.5 HP Replaces Leeson C213T17FB6E

Product Description

The MARATHON MOTORS GT1516 is a 7.5 HP general purpose electric motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. This three-phase TEFC motor meets or exceeds NEMA Premium efficiencies and is compliant with EISA2007. It features a class F insulation system and dynamically balanced rotors.

• Meets or exceeds NEMA Premium efficiencies and is compliant with EISA2007
• Features a Class F Insulation System
• Designed with dynamically balanced rotors and a steel conduit box

Product Highlights

This motor is suitable for various applications requiring a three-phase electric motor, featuring a rigid base mount and keyed shaft.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT1516
• Country of Origin: MEXICO

Technical Specifications

• MPN: GT1516
• Brand: Marathon
• Inventory SKU: MGT1516
• Output HP: 7.5
• Output KW: 5.5
• Output RPM: 1768
• Frame Size NEMA: 213T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage: 230/460
• Application: General Purpose
• Phase: 3
• Mounting: Rigid Base
• Enclosure: Totally Enclosed Fan Cooled
• Poles: 4
• Service Factor: 1.15
• KVA Code: H
• Nominal Efficiency: 91.7
• Nominal Power Factor: 79.3
• Frequency: 60 Hz
• Frame: 213T
• Mounting Type: Rigid
• Number of Speeds: 1 Speed
• Frame Material: Rolled Steel
• NEMA Design: B
• Degree of Protection (IP): IP43
• Insulation Class: F
• Rotation: Reversible
• Duty: Continuous
• Conduit Box Location: F1/F2
• Removable Feet: No
• Orientation: Horizontal
• Ambient Temp: 40 °C
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 1.375"
• Hazardous Locations: CSA Certified Class 1 Division 2
• Agency Approvals: CSA, UL & CE
• Country of Origin: MEXICO
• Warranty: 3-Year
• Horsepower: 7.5 hp
• Amps: 19.0/9.5
• Hertz: 60hz
• Shaft: Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Bearings: Ball Bearings
• Marathon Model: 213TTFBD6027
• Replaces Leeson: C213T17FB6E, 140450.00
